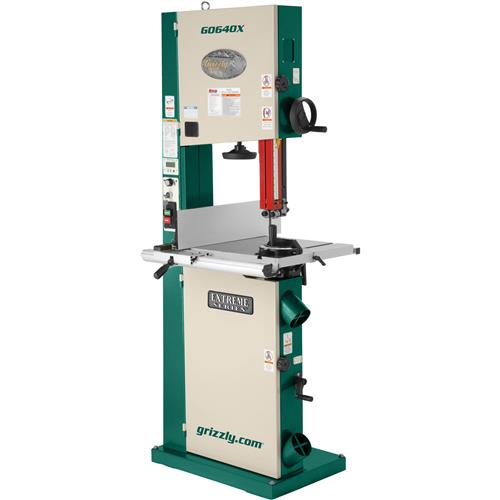

G0640X 17" 2 HP Metal/Wood Bandsaw with Inverter Motor

Cut wood or metal with this 2 HP 17" variable-speed combination bandsaw.

The G0640X combines the best of both worlds: a high-performance wood bandsaw with variable speed control for precision metal cutting (100-3600 FPM). Tackle any project with this powerful and versatile machine.

Adjusting the blade tension is as easy as: engaging the lever and turning the handwheel to tighten, then releasing the lever to loosen when done. Blade tracking is primarily controlled by adjusting the upper wheel tilt. A wood-cutting blade comes installed and a metal-cutting blade is included.

The G0640X has a large 23-5/8" x 17-1/4" table that can tilt from 5° left to 45° right. A cast-iron fence with extruded-aluminum rail and resaw fence attachment mount to the table.

You will find many other features that have made Grizzly bandsaws so popular with our customers such as the rack-and-pinion upper guide adjustment, cast-iron trunnion and cast-iron wheels.

For a full range replacement and resaw blades for the G0640X shop here.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Required power source: 240V, single-phase, min. 15A circuit
• Motor: 2 HP, 240V
• Throat (max. width left of blade): 16-1/4"
• Resaw capacity: 12"
• Table size: 23-5/8" x 17-1/4"
• Table tilt: 5° left, 45° right
• Floor-to-table height: 37-1/2"
• Blade size: 131-1/2" (1/8"–1" wide)
• Blade speed: Variable, 100–3600 FPM
• Overall dimensions: 32" W x 32" D x 73" H
• Approximate shipping weight: 416 lbs.

FEATURES:

• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• Two speed ranges, fast for wood and slow for metal
• Rip fence ans resaw fence
• Precision-ground cast-iron table with rack-and-pinion tilt control
• Quick-release blade tension

INCLUDES:

• 1/2" x 6 TPI wood blade
• 1/2" x 10 TPI metal blade

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0640X comes with a 1-year warranty.
