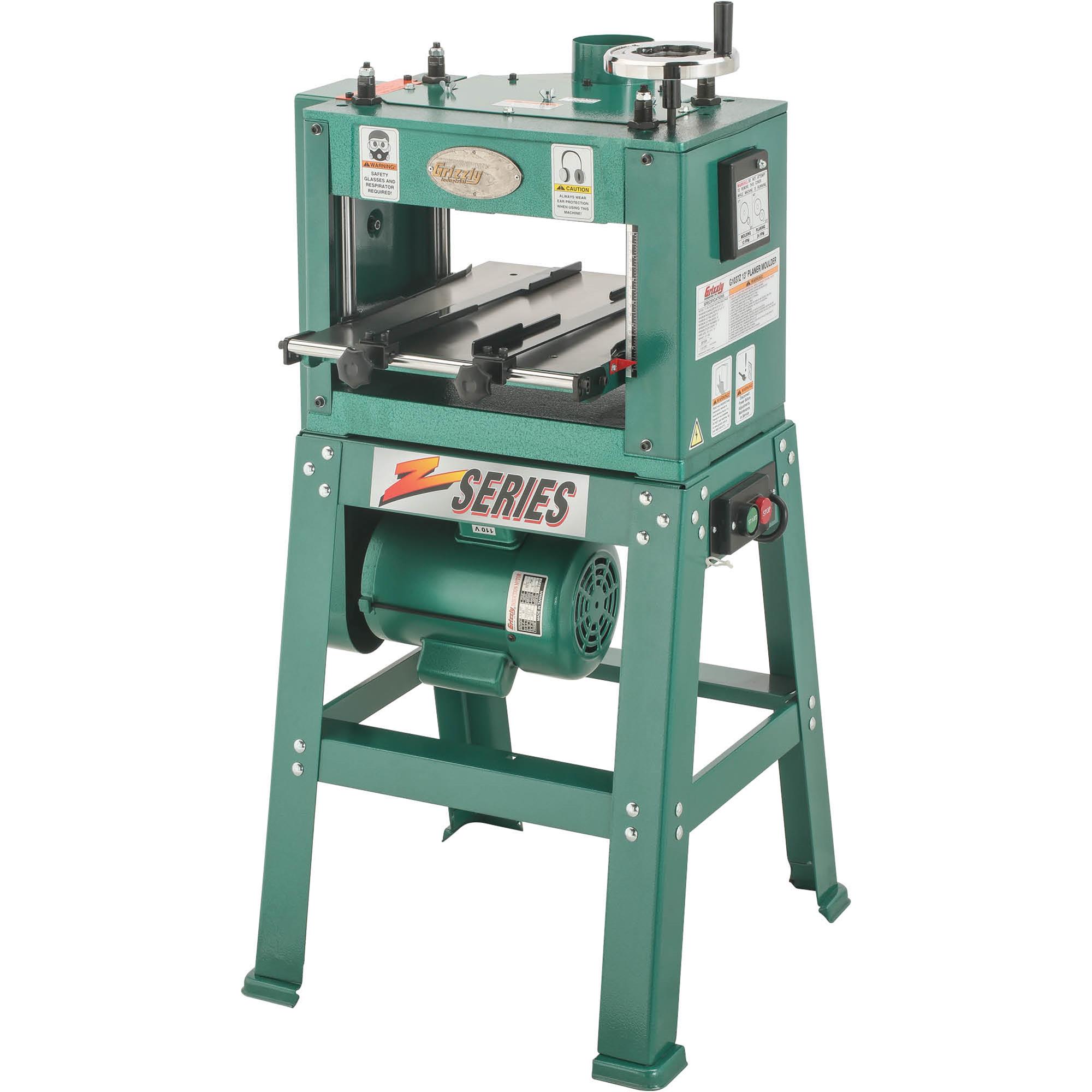

Grizzly G1037Z 13" Planer/Moulder

Get two machines in one with this combination planer/moulder!

If you make your own moulding and casings, or would like to, the G1037Z 13” Planer / Moulder will save you valuable shop space, time and money.

Use it to plane your stock to the desired thickness, then easily convert it to a moulder to create nearly any profile you can imagine.

The 1-1/2 HP TEFC motor provides plenty of power for planing and moulding, while the 4" dust port allows easy connection to a dust collector.

The undermount motor makes for convenient knife changes, while the easily adjustable guides and dual moulding fences make creating architectural moulding and casings a breeze.

The 2-5/8" diameter 3-knife cutterhead provides a smoother first-pass finish compared to a 2-knife cutterhead.

The HSS knives (high-speed steel) have been heat treated for hardness and wear resistance, which keeps a sharp edge longer than other carbon steels.

Planing max capacity is 1/8" deep and up to 13" wide.

Moulding max capacity is 3/4" deep and up to 4-9/16" wide.

This dual-purpose machine combined with a low price and its capability will more than pay for itself —and fast!

Explore our vast collection of moulding knives (sold separately) and discover the perfect profile for your project.

The G1037Z manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your machine.

Made in an ISO 9001 factory

SPECIFICATIONS:

• Motor: 1-1/2 HP, 110V/220V (prewired 110V), single-phase, 15A/7.5A
• Maximum cut width: 13"
• Maximum stock thickness: 6"
• Maximum planing cutting depth: 1/8"
• Maximum moulding profile depth: 3/4"
• Maximum moulding width: 4-9/16"
• Feed rate planing: 24 FPM
• Feed rate moulding: 12 FPM
• Knife size and type: (x3) 13" x 5/8" x 1/8", single-sided HSS
• Cutterhead speed: 5000 RPM
• Footprint: 22-1/4" x 21-1/4"
• Overall dimensions: 23-1/2" W x 23" D x 44-1/2" H
• Approximate shipping weight: 236 lbs.

FEATURES:

• Precision-ground cast-iron table
• 4" dust port
• Rubberized steel feed rollers
• 1-year limited warranty

Need help?

We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
