Parts for G9953ZXF - 16" x 99" 3-Phase Z Series Jointer w/ Spiral Cutterhead

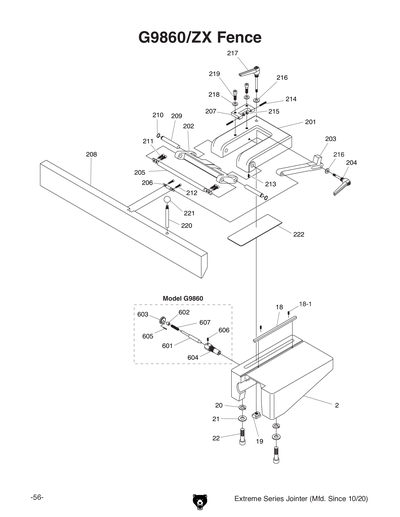

Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF
Part Diagram for G9953ZXF

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Price
N/A
1V2
*DISCD*BASE V2.01.21
Price
N/A
2
INFEED TABLE SUPPORT
Price
N/A
3
OUTFEED TABLE SUPPORT
Price
N/A
4
INFEED TABLE LIFTING ARM
Price
N/A
5
OUTFEED TABLE LIFTING ARM
Price
N/A
6
DUST HOOD
Price
N/A
6V2
DUST HOOD 5" V2.10.20
Price
N/A
6V3
DUST HOOD 5" V3.01.21
Price
N/A
7
OUTFEED REAR HOUSING
Price
N/A
8
TABLE HEIGHT SPINDLE
Price
N/A
9
INFEED TABLE REAR HOUSING
Price
N/A
10
FRONT TABLE COVER
Price
N/A
11
FLAT WASHER 8MM
Price
N/A
12
HEX BOLT M8-1.25 X 16
Price
N/A
13
DUST CHUTE
Price
N/A
13V2
DUST CHUTE 5" V2.10.20
Price
N/A
13V3
DUST CHUTE 5" V3.01.21
Price
N/A
14
MOTOR ACCESS COVER
Price
N/A
15
PHLP HD SCR M6-1 X 10
Price
N/A
16
PHLP HD SCR M6-1 X 12
Price
N/A
16V2
HEX BOLT M6-1 X 12
Price
N/A
17
FLAT WASHER 3/8
Price
N/A
18
KNOB M10-1.5 X 30
Price
N/A
19
LOCK COLLAR
Price
N/A
20
SET SCREW M8-1.25 X 8
Price
N/A
21
FLAT WASHER 10MM
Price
N/A
22
CAP SCREW M10-1.5 X 25
Price
N/A
23
ON BUTTON RENY R9C1VN 22MM GRN
Price
N/A
24
E-STOP BUTTON RENY R9C01VN
Price
N/A
25
POWER INDICATOR LIGHT 22MM RED
Price
N/A
26
PHLP HD SCR M6-1 X 12
Price
N/A
27
CONTROL PANEL
Price
N/A
28
CONTROL PANEL PEDESTAL
Price
N/A
39
*DISCD*MAGNETIC CONTACTOR CN-18 220V V1
Price
$116.15
39V2
CONTACTOR TECO CU-18 440V V2.05.08
Price
$72.45
40
CONVERSION KIT 440V V2
Price
N/A
40V2
*DISCD*OL RELAY TECO RHN-18 12.5-18A V2.
Price
$13.80
40V3
OL RELAY TECO RHU-10 15-20A V3.01.11
Price
$45.90
41
BRAKE SWITCH
Price
N/A
42
*DISCD*440V CONVERSION KIT
Item is no longer available
Price
N/A
42-1
POWER LAMP 440V
Price
$1.60
42V2
CONVERSION KIT 440V V2
Price
$73.70
43
BRAKE PLATE
Price
N/A
44
CAP SCREW M8-1.25 X 35
Price
N/A
45
HEX NUT M8-1.25
Price
N/A
46
BRAKE BRACKET
Price
N/A
47
BRAKE PAD
Price
N/A
48
PHLP HD SCR 10-24 X 1/2
Price
N/A
49
FLAT WASHER #10
Price
N/A
50
PHLP HD SCR 10-24 X 3/8
Price
N/A
51
CAP SCREW M8-1.25 X 16
Price
N/A
52
HEX NUT M4-.7
Price
N/A
53
SET SCREW M4-.7 X 50
Price
N/A
54
HEX BOLT M6-1 X 45
Price
N/A
55
HEX NUT M6-1
Price
N/A
56
TENSION SPRING .9 X 60 X 50 MM
Price
N/A
57
Safety Push Block - Small
Price
N/A
58
PNEUMATIC TORQUE WRENCH
Price
N/A
59
AIR REGULATOR W/GAUGE
Price
N/A
60
BREAKER BAR BIT HOLDER
Price
N/A
61
TORX DRIVER T-20
Price
N/A
62
TORX BIT T-20
Price
N/A
102
BEARING HOUSING FRONT
Price
N/A
103
BEARING HOUSING REAR
Price
N/A
104
BALL BEARING 6206ZZ
Price
N/A
105
BALL BEARING 6208ZZ
Price
N/A
106
BEARING END CAP
Price
N/A
107
BRAKE NUT M30-1.5
Price
N/A
108
BEARING CAP
Price
N/A
109
SPANNER NUT M40-1.5P
Price
N/A
110
CUTTERHEAD PULLEY
Price
N/A
111
CUTTERHEAD STOP PLATE
Price
N/A
112
END CAP
Price
N/A
117
LOCK WASHER 10MM
Price
N/A
118
HEX BOLT M10-1.5 X 30
Price
N/A
119
CAP SCREW M5-.8 X 16
Price
N/A
120
*DISCD*CUTTERHEAD REAR COVER
Price
N/A
121
PHLP HD SCR M4-.7 X 15
Price
N/A
122
STAR KNOB
Price
N/A
123
HEX NUT M5-.8
Price
N/A
124
SET SCREW M8-1.25 X 20
Price
N/A
125
GREASE FITTING 1/8 NPT STRAIGHT
Price
N/A
201
TUBE ROD BRACKET
Price
N/A
202
CONNECTOR LEFT
Price
N/A
203
CONNECTOR RIGHT
Price
N/A
204
BASE PLATE
Price
N/A
205
CAP SCREW M10-1.5 X 60
Price
N/A
206
LOCK WASHER 8MM
Price
N/A
207
CAP SCREW M8-1.25 X 50
Price
N/A
208
CAP SCREW M10-1.5 X 25
Price
N/A
209
FLAT WASHER 6MM
Price
N/A
210
CAP SCREW M6-1 X 10
Price
N/A
211
GEAR SHAFT
Price
N/A
212
HANDWHEEL
Price
N/A
213
FLAT WASHER 3/8
Price
N/A
214
HANDLE 3/8-16
Price
N/A
215
SET SCREW M8-1.25 X 10
Price
N/A
216
HEX NUT M8-1.25
Price
N/A
217
SET SCREW M8-1.25 X 25
Price
N/A
218
*DISCD*LOCK LEVER 2PC STANDARD V1
Price
N/A
219
KNOB 3/8-16
Price
N/A
220
FENCE ADJUSTMENT HANDLE
Price
N/A
221
FLAT WASHER 6MM
Price
N/A
222
SET SCREW M6-1 X 10
Price
N/A
223
SET SCREW M6-1 X 8
Price
N/A
224
HEX BOLT M8-1.25 X 30
Price
N/A
225
FLAT WASHER 8MM
Price
N/A
226
HEX NUT M10-1.5
Price
N/A
227
HEX BOLT M10-1.5 X 50
Price
N/A
228
HEX BOLT M8-1.25 X 25
Price
N/A
229
CAP SCREW M6-1 X 16
Price
N/A
230
BRACKET
Price
N/A
231
ANCHOR ROD
Price
N/A
232
*DISCD*PIVOT PIN RIGHT STANDARD V1
Price
N/A
233
*DISCD*PIVOT PIN LEFT STANDARD V1
Price
N/A
234
FENCE ROD
Price
N/A
235
PIVOT ARM
Price
N/A
236
FENCE ANGLE SEAT
Price
N/A
237
FENCE ROD BRACKET
Price
N/A
238
PIVOT ROD
Price
N/A
239
FENCE
Price
N/A
240
FENCE ROD
Price
N/A
241
CAP SCREW M6-1 X 25
Price
N/A
242
FENCE STOP BLOCK
Price
N/A
243
FLAT WASHER 1/4
Price
N/A
244
FLAT WASHER 5/16
Price
N/A
245
HEX NUT M8-1.25
Price
N/A
246
SET SCREW M8-1.25 X 40
Price
N/A
301
OUTFEED TABLE LEFT SHORT
Price
N/A
302
NOISE DAMPER
Price
N/A
303
COVER
Price
N/A
304
LONG TABLE PIVOT ROD
Price
N/A
305
SET SCREW M8-1.25 X 10
Price
N/A
306
CAP SCREW M6-1 X 16
Price
N/A
307
PHLP HD SCR M6-1 X 12
Price
N/A
308
J-ROD LONG
Price
N/A
309
TENSION SPRING
Price
N/A
310
HEX NUT M12-1.75
Price
N/A
311
FLAT WASHER 1/2
Price
N/A
312
FLAT WASHER 3/8
Price
N/A
313
INFEED TABLE - RIGHT
Price
N/A
314
BED PIVOT PIN M12-1.75 X 30
Price
N/A
315
CAP SCREW M10-1.5 X 45
Price
N/A
316
J-ROD SHORT
Price
N/A
317
TABLE PIVOT ROD SHORT
Price
N/A
401
CUTTERHEAD GUARD
Price
N/A
402
CAP SCREW M6-1 X 25
Price
N/A
403
SPRING SHAFT HOUSING
Price
N/A
404
SPRING SHAFT W/COVER
Price
N/A
405
CAP SCREW M12-1.75 X 20
Price
N/A
501
LIFT ROD BRACKET
Price
N/A
502
HANDWHEEL
Price
N/A
503
BEVEL GEAR M4-0.7 X 2
Price
N/A
504
SLEEVE
Price
N/A
505
LIFT ROD
Price
N/A
506
GEAR SHAFT
Price
N/A
507
LIFT CONNECTOR
Price
N/A
508
GEAR SHAFT EXT RETAINER RING M40
Price
N/A
509
EXT RETAINING RING 22MM
Price
N/A
510
HANDWHEEL FLAT WASHER 8MM X 12OD
Price
N/A
511
LOCK KNOB M10-1.5 X 20
Price
N/A
512
HANDWHEEL KNOB 3/8-16"
Price
N/A
513
CAP SCREW M10-1.5 X 40
Price
N/A
514
HEX NUT M10-1.5
Price
N/A
515
SET SCREW M4-.7 X 10
Price
N/A
516
GREASE FITTING 3/16"
Price
N/A
517
KEY 5 X 5 X 15
Price
N/A
518
LOCK WASHER 8MM
Price
N/A
519
HEX BOLT M8-1.25 X 25
Price
N/A
520
HEX BOLT 3/8-16 X 2
Price
N/A
521
HEX NUT 3/8-16
Price
N/A
522
SLEEVE NUT M25-1.5
Price
N/A
523
SET SCREW M6-1 X 6
Price
N/A
601
ROD
Price
N/A
602
KNURLED KNOB
Price
N/A
603
BRAKE CASING
Price
N/A
604
ROLL PIN 3 X 18
Price
N/A
605
SPRING D0.8 X D11 X 47MML
Price
N/A
606
SET SCREW M6-1 X 6
Price
N/A
701
MOTOR 5HP 220V/440V 3-PH
Price
$603.75
701-1
MOTOR FAN COVER
Price
$13.30
701-2
MOTOR FAN
Price
$10.65
701-3
MOTOR WIRING JUNCTION BOX
Price
$10.65
702
MOTOR PULLEY
Price
N/A
703
LOCK WASHER 10MM
Price
N/A
704
HEX BOLT M10-1.5 X 40
Price
N/A
705
HEX NUT M10-1.5
Price
N/A
706
FLAT WASHER 12MM
Price
N/A
707
HEX BOLT M12-1.75 X 40
Price
N/A
708
KEY 7 X 7 X 65
Price
N/A
709
SET SCREW M8-1.25 X 20
Price
N/A
710
MOTOR MOUNT PLATE
Price
N/A
711
V-BELT A50
Price
N/A
712
Extreme Series Nameplate
Price
N/A
713
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
714
MACHINE ID LABEL
Price
$16.40
715
PUSH BLOCK WARNING
Price
N/A
716
Nameplate - Large
Price
N/A
717
N/S GRIZZLY GREEN G1023S
Price
N/A
718
GREY PUTTY REF G0504
Price
N/A
719
MODEL NUMBER LABEL
Price
$18.15
801
HANDLE HUB
Price
N/A
802
SHAFT
Price
N/A
803
CAP SCREW M5-.8 X 15
Price
N/A
804
HANDLE
Price
N/A
805
HEX NUT 5/16-24
Price
N/A
806
FLAT WASHER 5MM
Price
N/A
807
LOCK WASHER 5MM
Price
N/A
901
FLAT HD TORX T20 M6-1 X 15
Price
N/A
902
Indexable Carbide Inserts - 14 x 14 x 2mm, 10-Pk.
Price
N/A
903
SPIRAL CUTTERHEAD BODY
Price
N/A
MANUAL
MANUAL FOR G9860 V1.10.08
Price
N/A
MANV2
MANUAL G9860 MFG 04.09 V2.06.09
Price
N/A
MANV3
MANUAL G9860 MFG 04.10 V3.09.10
Price
N/A
MANV4
MANUAL G9860 MFG 01.11 V4.02.11
Price
N/A
MANV5
MANUAL G9860 MFD-09.11-09.20 V5.09.11
Price
N/A
MANV6
MANUAL G9860 MFD-10.20+ V6.10.20
Price
N/A
