Parts for G0945 - 6" Benchtop Jointer

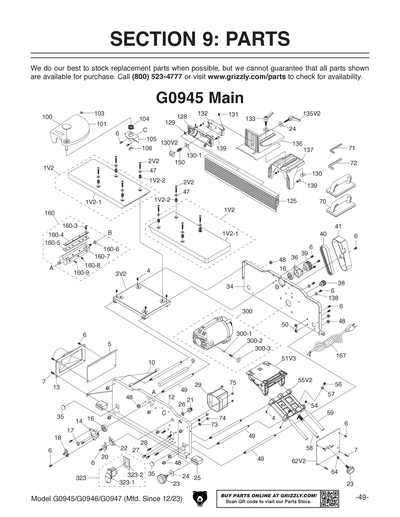

Part Diagram for G0945
Part Diagram for G0945
Part Diagram for G0945
Part Diagram for G0945
Part Diagram for G0945
Part Diagram for G0945
Part Diagram for G0945

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
TABLE V1
Price
$58.00
1V2
TABLE ASSEMBLY
Price
N/A
1V2-1
TABLE
Price
N/A
1V2-2
SET SCREW M12-1.25 X 15 HOLE-PT, SLOT
Price
N/A
2
CAP SCREW M8-1.25 X 30
Price
N/A
2V2
CAP SCREW TORX M6-1 X 30
Price
N/A
3
OUTFEED TABLE SUPPORT V1
Price
$20.30
3V2
OUTFEED TABLE SUPPORT
Price
N/A
4
SET SCREW M6-1 X 8
Price
N/A
5
DUST CHUTE COVER
Price
$7.25
6
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
7
TAP SCREW 1/4 X 5/8
Price
$1.60
9
FOAM SEAL
Price
$1.60
10
DUST CHUTE
Price
$10.90
12
FRONT BASE PANEL
Price
$35.05
13
DUST PORT 2-1/2"
Price
$4.85
14
FRONT BEARING RETAINER W/BEARING
Price
$10.65
16
BALL BEARING 6201ZZ
Price
N/A
17
EXT RETAINING RING 12MM
Price
N/A
18
CUTTERHEAD LOCK
Price
$3.05
20
SCALE POINTER
Price
$1.85
21
SCALE GEAR
Price
$1.60
22
SCALE PLATE
Price
$1.60
23
KNOB BOLT M8-1.25 X 18, 12-LOBE, D49
Price
$1.85
24
FENDER WASHER 8MM
Price
N/A
25
FOOT PAD
Price
$1.60
26
EXT RETAINING RING 16MM
Price
N/A
27
PHLP HD SCR M5-.8 X 8
Price
N/A
28
BUTTON HD CAP SCR M5-.8 X 25
Price
N/A
29
PADDLE SWITCH BOX
Price
$3.40
34
REAR BASE PANEL
Price
$35.05
35
ROUND PLUG 35MM
Price
$1.60
36
REAR BEARING RETAINER W/BEARING
Price
$10.65
38
MOTOR PULLEY
Price
$5.15
39
CUTTERHEAD PULLEY
Price
$6.70
40
POLY-V BELT 125J5
Price
$12.40
41
BELT COVER
Price
$1.60
47
FENDER WASHER 6MM
Price
N/A
48
FLANGE NUT M6-1
Price
N/A
49
STUD-DE M6-1 X 100, 12
Price
$3.40
50
POWER CORD CLAMP
Price
$1.60
51
INFEED TABLE SUPPORT V1
Price
$65.25
51V2
INFEED TABLE SUPPORT V2.03.23
Price
$25.40
51V3
INFEED TABLE SUPPORT V2.03.23
Price
N/A
54
SET SCREW M6-1 X 10
Price
N/A
55
SUPPORT BRACKET V1
Price
$18.15
55V2
SUPPORT BRACKET V2.03.23
Price
$19.95
56
SET SCREW M6-1 X 16 DOG-PT
Price
N/A
57
HEX NUT M6-1
Price
N/A
58
ADJUSTMENT ROD
Price
$6.10
59
ADJUSTMENT SHAFT
Price
$3.50
62
RIGHT BASE PANEL V1
Price
$7.25
62V2
RIGHT BASE PANEL V2.03.23
Price
$7.25
64
HEX NUT M8-1.25
Price
N/A
70
PUSH BLOCK
Price
$7.90
71
HEX WRENCH 2.5MM
Price
N/A
72
HEX WRENCH 4MM
Price
N/A
73
EXT TOOTH WASHER 5MM
Price
N/A
74
HEX NUT M5-.8
Price
N/A
75
LOCK NUT M5-.8
Price
N/A
100
ROUND PLUG 42MM
Price
$1.60
101
CUTTERHEAD GUARD
Price
$34.50
101S
CUTTERHEAD GUARD ASSY.
Price
$43.50
103
RUBBER BUMPER
Price
$1.60
104
TORSION SPRING 1.6 X 23MM
Price
$1.60
105
GUARD MOUNTING BRACKET
Price
$6.70
106
E-CLIP 10MM
Price
N/A
125
FENCE
Price
$55.55
128
TILT BRACKET
Price
$8.20
129
T-SLOT NUT 7, M6-1
Price
$1.60
130
SQUARE NUT M8-1.25
Price
$1.60
130-1
CURVED SQUARE WASHER 8MM
Price
$1.60
130V2
TAPERED SQUARE NUT M8-1.25 V2.03.23
Price
$2.25
131
SET SCREW M5-.8 X 8
Price
N/A
132
TILT SUPPORT BRACKET
Price
$6.40
133
ADJ HANDLE M8-1.25 X 30, 50L
Price
$8.50
135
ADJ HANDLE M8-1.25 X 40, 50L V1
Price
$9.10
135V2
ADJ HANDLE M8-1.25 X 46, 50L V2.03.23
Price
$8.35
136
FENCE SLIDE BRACKET
Price
$22.70
137
FENCE SUPPORT BRACKET
Price
$19.65
138
FLAT WASHER 6MM
Price
N/A
139
BUTTON HD CAP SCR M6-1 X 16
Price
N/A
150
COMPRESSION SPRING 1.2 X 10.6 X 15.5
Price
$1.60
160
CUTTERHEAD ASSEMBLY
Price
$144.90
160-3
BUTTON HD CAP SCR 1/4-20 X 5/8
Price
N/A
160-4
KNIFE CLAMP BAR (2PC SET)
Price
$10.90
160-5
6-1/4" x 7/8" x 1/16" Jointer Knives for G0945, Set of 2
Price
N/A
160-6
SPACER 12ID X 16OD X 4L
Price
$1.60
160-7
CUTTERHEAD 6" 2-KNIFE
Price
$108.70
160-8
SET SCREW M6-1 X 10
Price
N/A
160-9
ADJUSTMENT SCREW M4-.7 X 10
Price
$1.60
167
POWER CORD 18G 3W 72" 5-15P
Price
$17.85
300
MOTOR 1-1/2HP 120V 1-PH
Price
$217.35
300-1
CARBON BRUSH
Price
$3.05
300-2
BRUSH HOLDER
Price
$4.85
300-3
BRUSH COVER
Price
$3.65
323-1
PADDLE SWITCH KEDU HY18 20A
Price
$9.20
323-2
PADDLE SWITCH COVER
Price
$1.60
400
MACHINE ID LABEL
Price
$4.75
401
CUTTERHEAD EXPOSURE LABEL
Price
$1.60
402
CUTTERHEAD GUARD LABEL
Price
$1.50
403
ELECTRICITY 1.4W X 1.2H
Price
N/A
404
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
405
COMBO WARNING LABEL
Price
$2.10
406
N/S GRIZZLY GREEN G1023S
Price
N/A
407
CUTTERHEAD WARNING LABEL
Price
$2.10
MAN
MANUAL G0945-47 MFD-05.21-02.23 V1.07.21
Price
$21.00
MANV2
MANUAL G0945-47 MFD-03.23-11.23 V2.03.23
Price
$24.15
MANV3
MANUAL G0945-47 MFD-12.23+ V3.11.23
Price
$14.65
