Parts for G1061 - 1 HP, 3450 RPM Buffer

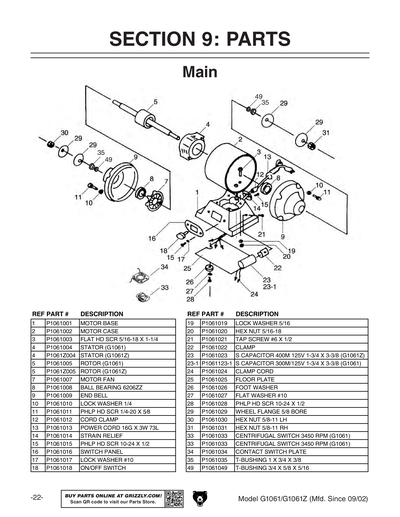

Part Diagram for G1061
Part Diagram for G1061

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$78.85
2
Price
$24.75
2V2
MOTOR CASE W/ STATOR V2
Price
$166.65
3
FLAT HD SCR 5/16-18 X 1-1/4
Price
N/A
4
MOTOR CASE W/ STATOR V2
Price
N/A
5
Price
$34.15
6
ROTOR
Price
N/A
7
Price
$1.85
8
BALL BEARING 6206ZZ
Price
N/A
9
Price
$16.35
10
LOCK WASHER 1/4
Price
N/A
11
P1061011
Now: PS12
PHLP HD SCR 1/4-20 X 5/8
Price
N/A
12
CORD CLAMP
Price
N/A
13
POWER CORD 16G X 3W 73"L
Price
N/A
14
STRAIN PLATE
Price
N/A
15
P1061015
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
16
Price
$4.60
17
LOCK WASHER #10
Price
N/A
18
Price
$19.25
19
LOCK WASHER 5/16
Price
N/A
20
P1061020
Now: PN02
HEX NUT 5/16-18
Price
N/A
21
TAP SCREW #6 X 1/2
Price
N/A
22
Price
$1.60
23
S CAPACITOR 400M 125V 2 X 3-1/2
Price
N/A
23-1
S CAPACITOR 300M 125V 1-3/4 X 3-3/8
Price
N/A
24
Price
$1.60
25
Price
$1.85
26
FLAT WASHER 5MM
Price
N/A
27
P1061027
Now: PW03
FLAT WASHER #10
Price
N/A
28
P1061028
Now: PS01
PHLP HD SCR 10-24 X 1/2
Price
N/A
29
Price
$1.60
30
Price
$1.60
31
P1061031
Now: PN04
HEX NUT 5/8-11
Price
N/A
32
*DISCD*CORD HOLDER
Item is no longer available
Price
N/A
33
CENTRIFUGAL SWITCH 3450
Price
$11.70
34
Price
$7.75
35
T-BUSHING 3/4 X 1-1/4 X 3/8
Price
$2.45
49
T-BUSHING 5/8 X 1 X 5/16
Price
$1.85
101
Price
$4.25
102

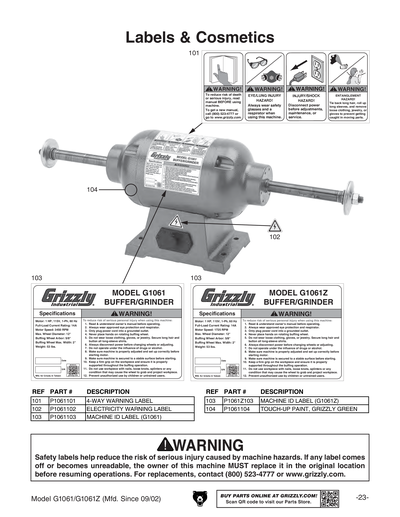

ELECTRICAL WARNING LABEL
Price
$4.25
103
MACHINE ID LABEL (G1061)
Price
$16.40
104
N/S GRIZZLY GREEN G1023S
Price
N/A
MANUAL
Price
$10.50
