Parts for G0580 - 14" Bandsaw 3/4 HP

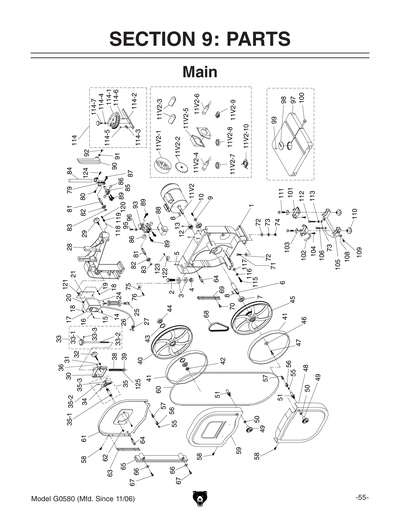

Part Diagram for G0580
Part Diagram for G0580
Part Diagram for G0580
Part Diagram for G0580

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
BASE
Item is no longer available
Price
N/A
2
HEX BOLT M16-2 X 55
Price
N/A
3
FLAT WASHER 16MM
Price
N/A
4
HEX NUT M16-2
Price
N/A
5
PIN 1/4"
Item is no longer available
Price
N/A
6
LOWER WHEEL SHAFT
Price
N/A
7
BALL BEARING 6204ZZ
Price
N/A
8
KEY 5 X 5 X 25
Price
N/A
9
FLAT WASHER 8MM
Price
N/A
10
PHLP HD SCR M8-1.25 X 16
Price
N/A
11
MOTOR 3/4HP 110/220V 1-PH V1
Price
$366.85
11-1
FAN COVER
Price
$19.30
11-2
FAN
Price
$9.20
11-3
CAPACITOR COVER
Item is no longer available
Price
N/A
11-4
S CAPACITOR 200M 125V 1-5/16 X 2-1/4
Price
N/A
11-5
ELECTRICAL BOX
Item is no longer available
Price
N/A
11V2
MOTOR 3/4HP 115/230V 1-PH V2.11.06
Price
$342.70
11V2-1
MOTOR FAN COVER
Item is no longer available
Price
N/A
11V2-10
CENT SWITCH 1725RPM W/CONTACT PLATE
Price
N/A
11V2-2
MOTOR FAN
Item is no longer available
Price
N/A
11V2-3
CAPACITOR COVER
Price
$4.60
11V2-4
R CAPACITOR 25M 250V 1-1/2 X 2-1/2
Price
$18.60
11V2-5
ELECTRICAL BOX
Price
$11.20
11V2-6
S CAPACITOR 200M 125V 1-1/2 X 2-3/4
Price
N/A
11V2-7
BALL BEARING 6203ZZ
Price
N/A
11V2-8
BALL BEARING 6202ZZ
Price
N/A
11V2-9
CENT SWITCH 1725RPM W/CONTACT PLATE
Price
N/A
11V2-9A
CENT SWITCH 1725RPM W/CONTACT PLATE
Price
$39.00
12
MOTOR PULLEY
Price
$18.85
13
SET SCREW M6-1 X 10
Price
N/A
14
Safety Paddle Switch
Price
N/A
15
TAP SCREW M3.5 X 12
Price
N/A
16
FLAT WASHER 4MM
Price
N/A
17
SWITCH ENCLOSURE BRACKET
Price
$3.65
18
PHLP HD SCR M5-.8 X 16
Price
N/A
19
EXT TOOTH WASHER 5MM
Price
N/A
20
SWITCH ENCLOSURE
Price
$3.05
21
SWITCH BOX MOUNT
Price
N/A
23
PHLP HD SCR M5-.8 X 6
Price
N/A
24
STRAIN RELIEF M15 TYPE-2
Price
N/A
25
POWER CORD 16G X 3W 73"L
Price
N/A
26
POWER CORD 16G X 3W 24"L
Price
N/A
27
STRAIN RELIEF M17 TYPE-6 ST
Price
N/A
28
UPPER FRAME ARM
Price
$154.00
29
KNOB BOLT M10-1.5 X 25
Price
$2.60
30
UPPER WHEEL SLIDING BRACKET V2.07.07
Price
N/A
31
HEX NUT M8-1.25
Price
N/A
32
KNOB BOLT M8-1.25 X 45
Price
N/A
33
*DISCD*BLADE ADJ SCR ASSY 4" THREAD
Price
N/A
33-1
MICRO ADJUSTING KNOB
Price
N/A
33-2
MICRO ADJUSTING KNOB
Price
N/A
33-3
ROLL PIN 3 X 18
Price
N/A
33A
MICRO ADJUSTING KNOB
Price
$10.65
34
STEEL PIN 8 X 23MM
Price
N/A
35
UPPER WHEEL SHAFT HINGE ASSY
Price
N/A
35-1
UPPER WHEEL SHAFT
Price
N/A
35-2
ROLL PIN 4 X 24
Price
N/A
35-3
UPPER WHEEL SHAFT HINGE
Price
$13.55
36
SET SCREW M5-.8 X 8
Price
N/A
38
COIL SPRING 3.8 X 13.5 X 81
Price
$3.20
39
SQUARE NUT M10-1.5
Price
N/A
40
UPPER WHEEL
Price
$84.85
41
WHEEL TIRE
Price
$7.80
42
HEX NUT M12-1.25
Price
N/A
43
INT RETAINING RING 35MM
Price
N/A
44
BALL BEARING 6202ZZ
Price
N/A
45
LOWER WHEEL
Price
$109.90
46
FLAT WASHER 8MM
Price
N/A
47
HEX BOLT M8-1.25 X 20 LH
Price
N/A
48
LOWER WHEEL GUARD
Item is no longer available
Price
N/A
49
KNOB M8-1.25
Item is no longer available
Price
N/A
50
INT TOOTH WASHER 8MM
Price
N/A
51
LATCH STUD M8-1.25 X 14
Price
$3.75
55
PHLP HD SCR M5-.8 X 12
Price
N/A
56
CATCH
Price
N/A
57
LATCH STUD M8-1.25 X 14
Price
$6.05
58
TAP SCREW M4 X 8
Price
N/A
59
COVER UPPER FRONT
Price
$41.10
60
SAW BLADE 6TPI X 93-1/2
Price
$9.80
61
COVER UPPER BACK
Price
$35.10
62
FLANGE SCREW M5-.8 X 8
Price
N/A
63
UPPER WHEEL COVER HINGE
Price
N/A
64
STANDOFF HEX STUD
Price
$2.75
65
SAW BLADE GUARD
Price
$6.10
66
SHIM
Price
$1.60
67
TAP SCREW M3.5 X 16
Price
N/A
68
BELT 18505J
Price
$18.90
69
LOWER WHEEL COVER HINGE
Price
N/A
70
FLAT HD SCR M5-.8 X 10
Price
N/A
71
HEX BOLT M8-1.25 X 35
Price
N/A
72
FLAT WASHER 8MM
Price
N/A
73
LOCK WASHER 8MM
Price
N/A
74
HEX NUT M8-1.25
Price
N/A
75
CORD CLAMP
Price
$1.49
76
PHLP HD SCR M5-.8 X 12
Price
N/A
79
GUIDE SUPPORT BRACKET
Price
$12.40
80
THUMB SCREW M6-1 X 16
Price
N/A
81
UPPER SPACING SLEEVE
Price
$5.80
82
BALL BEARING 6200ZZ
Price
N/A
83
EXT RETAINING RING 10MM
Price
N/A
84
*DISCD*GUIDE POST
Item is no longer available
Price
N/A
85
BLADE GUIDE SUPPORT
Price
$6.95
86
GUIDE BLOCK 1/2" X 1/2" X 3/4"L
Price
$4.90
87
THUMB SCREW M6-1 X 16
Price
N/A
88
LOWER BLADE GUARD
Price
$3.65
89
THUMB SCREW M6-1 X 12
Price
N/A
90
LEFT BLADE GUARD
Price
$7.50
91
FLAT WASHER 6MM
Price
N/A
92
HEX BOLT M6-1 X 10
Price
N/A
93
LOWER GUIDE SUPPORT
Price
$17.55
95
HEX BOLT M6-1 X 20
Price
N/A
96
FLAT WASHER 6MM
Price
N/A
97
TABLE
Price
N/A
98
Table Insert for G0580, G0555 and G0555P
Price
N/A
99
ROLL PIN 3 X 8
Price
N/A
100
TABLE PIN
Price
$3.20
101
TRUNNION
Price
N/A
102
SCALE
Price
N/A
103
TRUNNION CLAMP SHOE
Price
$2.90
104
HEX BOLT M6-1 X 12
Price
N/A
105
TRUNNION SUPPORT BRACKET
Price
N/A
106
HEX BOLT M8-1.25 X 30
Price
N/A
108
POINTER
Price
$1.60
109
FLANGE SCREW M5-.8 X 6
Price
N/A
110
KNOB M10-1.5
Price
$3.50
111
HEX BOLT M10-1.5 X 50
Price
N/A
112
HEX BOLT M8-1.25 X 80
Price
N/A
113
HEX NUT M8-1.25
Price
N/A
114
MITER GAUGE ASSY
Price
$39.30
114-1
MITER GAUGE ASSY
Price
N/A
114-2
MITER GAUGE ASSY
Price
N/A
114-3
MITER GAUGE ASSY
Price
N/A
114-4
MITER GAUGE ASSY
Price
N/A
114-5
PHLP HD SCR M5-.8 X 6
Price
N/A
114-6
MITER GAUGE ASSY
Price
N/A
114-7
MITER GAUGE ASSY
Price
N/A
115
CAP SCREW M8-1.25 X 25
Price
N/A
116
LOCK WASHER 8MM
Price
N/A
117
FLAT WASHER 8MM
Price
N/A
118
STEEL BALL 5/16
Price
N/A
119
COMPRESSION SPRING 1 X 5.5 X 9
Price
$1.49
120
SET SCREW M10-1.5 X 10
Price
N/A
121
EXT TOOTH WASHER 5MM
Price
N/A
122
CORD CLAMP
Price
$1.60
123
PHLP HD SCR M5-.8 X 12
Price
N/A
124
HEX BOLT M6-1 X 16
Price
N/A
125
TENSION POINTER
Price
$1.49
127
BASE PLATE
Price
$75.20
127V2
BASE PLATE V2.03.25
Price
$0.00
128
BODY SUPPORT PLATE
Item is no longer available
Price
N/A
129
LEG
Price
$37.95
129V2
LEG V2.03.25
Price
$0.00
130
SHORT BRACE
Price
$17.00
130V2
SHORT BRACE V2.03.25
Price
$0.00
131
LONG BRACE
Price
$17.00
131V2
LONG BRACE V2.03.25
Price
$0.00
132
FLANGE NUT M8-1.25
Price
N/A
133
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
134
MACHINE ID LABEL V1
Item is no longer available
Price
N/A
134V2
Nameplate - Mini
Price
N/A
135
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
136
DONT OPEN 2W X 3.3H
Price
N/A
137
UNPLUG BANDSAW 2W X 3.3H
Price
N/A
138
BANDSAW BLADE 1.5W X 2H
Price
N/A
138V2
***USE PLABEL-79A***
Price
$0.00
139
ELECTRICITY 1.4W X 1.2H
Price
N/A
140
FENCE PARTS BAG
Item is no longer available
Price
N/A
141
GREY PUTTY REF G0504
Price
N/A
142
N/S GRIZZLY GREEN G1023S
Price
N/A
143
Nameplate - Mini
Price
N/A
144
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
145
DISCONNECT POWER/INJURY LABEL
Item is no longer available
Price
N/A
145V2
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
145V3
DOOR CLOSED BLADE 2W X 3.3H
Price
N/A
146
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
146V2
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
148
MODEL NUMBER LABEL
Price
$0.00
149
TENSION BLADE TAG
Price
$0.00
150
GRIZZLY.COM LABEL
Price
$0.00
201
FENCE BASE
Price
$22.05
202
FENCE POINTER
Price
$3.65
203
HAND KNOB M10-1.5
Price
$3.05
204
FLANGE SCREW M6-1 X 8
Price
N/A
205
FRONT SQUARE RAIL
Price
$28.75
206
PAD
Price
$1.49
207
FENCE BRACKET
Price
$7.25
208
FENCE SUPPORT TUBE
Price
$23.30
209
INTERNAL SHEATH
Price
$5.50
210
FENCE SUPPORT SCREW M6-1 X 13
Price
$5.80
211
FENCE ADJUSTMENT SCREW
Price
$1.49
212
HEX NUT M6-1
Price
N/A
213
FENCE END CAP
Price
$2.05
214
TAP SCREW M3.5 X 8
Price
N/A
215
REAR ANGLE RAIL
Price
$21.20
216
FRONT RAIL
Price
$27.55
217
FLAT WASHER 6MM
Price
N/A
218
LOCK WASHER 6MM
Price
N/A
219
HEX BOLT M6-1 X 20
Price
N/A
220
HEX BOLT M6-1 X 10
Price
N/A
MAN
MANUAL G0580 MFD-08.04-10.06 V1.08.04
Price
$0.00
MANUAL
MANUAL FOR G0580 08/04
Price
$12.75
MANV2
MANUAL G0580 MFD-11.06-01.25 V2.12.11
Price
$0.00
MANV3
MANUAL G0580 MFD-03.25+ V3.03.25
Price
$0.00
