Parts for W1825 - 19" 3 HP Heavy Duty Bandsaw

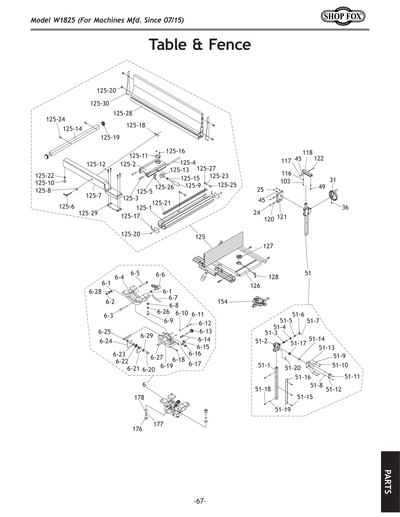

Part Diagram for W1825
Part Diagram for W1825
Part Diagram for W1825
Part Diagram for W1825
Part Diagram for W1825
Part Diagram for W1825
Part Diagram for W1825

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
SET SCREW M6-1 X 10
Price
N/A
2
FLANGE SCREW M5-.8 X 10
Price
N/A
3
BUSHING
Price
N/A
4
LIFTING EYE BOLT M10-1.5
Price
N/A
5
MACHINE BODY
Price
$1,139.75
6
TRUNNION ASSEMBLY
Price
$220.05
6-1
FLAT WASHER 8MM
Price
N/A
6-10
FLAT WASHER 4MM
Price
N/A
6-11
POINTER
Price
N/A
6-12
PHLP HD SCR M4-.7 X 6
Price
N/A
6-13
ADJUSTMENT KNOB BOLT M6-1
Price
$3.05
6-14
HEX NUT M6-1
Price
N/A
6-15
L-BRACKET
Price
$7.05
6-16
FLAT HD SCR M5-.8 X 8
Price
N/A
6-17
CAP SCREW M6-1 X 16
Price
N/A
6-18
CAP SCREW M6-1 X 50
Price
N/A
6-19
TRUNNION SUPPORT BRACKET
Price
$96.60
6-2
LOCK NUT M8-1.25
Price
N/A
6-20
BUTTON HD CAP SCR M10-1.5 X 30
Price
N/A
6-21
RIGHT CLAMP PLATE
Price
N/A
6-22
BALL BEARING 6000ZZ
Price
N/A
6-23
FLAT WASHER 10MM
Price
N/A
6-24
LEFT CLAMP PLATE
Price
N/A
6-25
ADJUSTMENT BLOCK
Price
$16.45
6-26
LOCK WASHER 8MM
Price
N/A
6-27
CAP SCREW M5-.8 X 6
Price
N/A
6-28
LOCK WASHER 8MM
Price
N/A
6-29
PHLP HD SCR M4-.7 X 6
Price
N/A
6-3
CARRIAGE BOLT M8-1.25 X 85
Price
N/A
6-32
LOCK WASHER 8MM
Price
N/A
6-33
LOCK WASHER 10MM
Price
N/A
6-4
UPPER TRUNNION
Price
$94.10
6-5
CARRIAGE BOLT M8-1.25 X 80
Price
N/A
6-6
LOCK HANDLE M8-1.25
Price
N/A
6-7
ANGLE SCALE
Price
$2.25
6-8
FLAT WASHER 8MM
Price
N/A
6-9
HEX BOLT M8-1.25 X 25
Price
N/A
7
BUSHING
Price
N/A
8
FLAT WASHER 6MM
Price
N/A
9
UPPER GUIDE POST ASSEMBLY
Price
$92.35
9-1
SET SCREW M5-.8 X 5
Price
N/A
9-10
GUIDE BRACKET 16MM V2.06.09
Price
N/A
9-11
WORM SHAFT
Price
N/A
9-12
FIXED PLATE
Price
N/A
9-13
PINION GEAR 15T
Price
N/A
9-14
STEP BOLT M8-1.25 X 80
Price
N/A
9-15
COVER
Price
N/A
9-16
CAP SCREW M8-1.25 X 16
Price
N/A
9-17
FLAT HD SCR M4-.7 X 8
Price
N/A
9-18
HEX NUT M16-1.5
Price
N/A
9-19
PLASTIC SET SCREW
Price
N/A
9-2
CAP SCREW M6-1 X 16
Price
N/A
9-3
PHLP HD SCR M4-.7 X 10
Price
N/A
9-4
HEX NUT M4-.7
Price
N/A
9-5
RACK
Price
N/A
9-6
GUIDE POST
Price
N/A
9-7
LOCK COLLAR
Price
N/A
9-8
THREADED BUSHING V2.06.09
Price
N/A
9-9
LOCK WASHER 8MM
Price
N/A
10
HEX NUT M6-1
Price
N/A
11
POINTER
Price
N/A
12
STEP SCREW M4-.7 X 5
Price
N/A
13
HINGE SHAFT
Price
N/A
14
ROLL PIN 5 X 35
Price
N/A
15
UPPER WHEEL SHAFT HINGE
Price
N/A
16
UPPER WHEEL SHAFT
Price
N/A
17
BUSHING
Price
N/A
18
BALL BEARING 6204-2RS
Price
N/A
19
UPPER WHEEL 19"
Price
$240.25
20
INT RETAINING RING 47MM
Price
N/A
21
WHEEL FLAT WASHER 8MM
Price
N/A
22
CAP SCREW M8-1.25 X 16
Price
N/A
23
SAW BLADE 143" X 3/4" X 5MM
Price
N/A
24
LOCK WASHER 8MM
Price
N/A
25
CAP SCREW M8-1.25 X 20
Price
N/A
26
TIRE 80-85
Price
N/A
27
LOWER WHEEL 19"
Price
$339.25
28
IDLER PULLEY
Price
$86.40
29
X1825029
Now: PN32
HEX NUT 1-14
Price
N/A
30
LOCK WASHER 1"
Price
N/A
31
TABLE TILT HANDWHEEL
Price
$22.50
32
COMPRESSION SPRING 7 X 8 X 90
Price
N/A
33
ROLL PIN 3 X 16
Price
N/A
34
ALIGNMENT PLATE
Price
N/A
35
THRUST BEARING 51201
Price
N/A
36
CAP SCREW M6-1 X 25
Price
N/A
37
HANDWHEEL TYPE-17 137D X 10B-S
Price
N/A
38
TENSION ADJUSTING ROD
Price
N/A
39
CONTROL PANEL PLATE
Price
N/A
40
TAP SCREW M4 X 10
Price
N/A
41
KEYED POWER SWITCH W/KEYS
Price
$34.10
42
ON BUTTON
Price
$30.05
43
E-STOP BUTTON 250V 10A
Price
N/A
44
CAP SCREW M8-1.25 X 16
Price
N/A
45
FENDER WASHER 8MM
Price
N/A
46
UPPER WHEEL SLIDING BRACKET
Price
N/A
47
CAP SCREW M8-1.25 X 90
Price
N/A
48
RIVET 3 X 10MM BLIND, STEEL
Price
N/A
49
CAP SCREW M6-1 X 12
Price
N/A
50
CLEAR WINDOW
Price
N/A
51
TABLE TILT BRACKET ASSEMBLY
Price
$152.35
51-1
SQUARE TUBE
Price
$54.55
51-10
CAP SCREW M8-1.25 X 16
Price
N/A
51-11
FLANGE SCREW M5-.8 X 10
Price
N/A
51-12
PINION GEAR COVER
Price
$7.45
51-13
COVER
Price
N/A
51-14
STEP BOLT M8-1.25 X 80
Price
N/A
51-15
FLAT HD SCR M4-.7 X 8
Price
N/A
51-16
RACK
Price
$13.45
51-17
PINION GEAR 15T
Price
$23.45
51-18
PHLP HD SCR M4-.7 X 10
Price
N/A
51-19
HEX NUT M4-.7
Price
N/A
51-2
GUIDE BRACKET 16MM V2.06.09
Price
N/A
51-20
FIXED PLATE
Price
N/A
51-3
WORM SHAFT
Price
N/A
51-4
HEX NUT M16-1.5
Price
N/A
51-5
THREADED BUSHING V2.06.09
Price
N/A
51-6
LOCK COLLAR
Price
N/A
51-7
SET SCREW M5-.8 X 5
Price
N/A
51-8
HEX NUT M5-.8
Price
N/A
51-9
LOCK WASHER 8MM
Price
N/A
55
UPPER WHEEL COVER ASSY
Price
N/A
55A
UPPER WHEEL COVER ASSY
Price
$120.85
56
CAP SCREW M6-1 X 25
Price
N/A
57
FLAT WASHER 6MM
Price
N/A
58
WHEEL BRUSH
Price
N/A
59
CAP SCREW M6-1 X 25
Price
N/A
60
STAR KNOB
Price
N/A
61
LOCK NUT M6-1
Price
N/A
62
STRAIN RELIEF TYPE-1 5/8
Price
N/A
63
HEIGHT POINTER
Price
N/A
64
HEX NUT M8-1.25
Price
N/A
65
HEX BOLT M8-1.25 X 90
Price
N/A
66
STAR KNOB BOLT M10-1.5 X 20
Price
N/A
67
STAR KNOB BOLT M10-1.5 X 55
Price
N/A
68
THREADED HANDLE M10-1.5
Price
N/A
69
CAM
Price
N/A
70
PILLOW BLOCK
Price
N/A
71
HANDLE M12-1.75
Price
N/A
72
LEVER
Price
N/A
73
HEX NUT M12-1.75
Price
N/A
74
LEVER HUB
Price
N/A
75
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
76
LOCK WASHER 8MM
Price
N/A
78
SHAFT COVER
Price
N/A
79
SET SCREW M8-1.25 X 20
Price
N/A
80
HEX NUT M8-1.25
Price
N/A
81
LOWER WHEEL SHAFT
Price
$23.35
82
MOTOR 3HP 220V 1-PH 60HZ
Price
$921.85
82-1
MOTOR FAN COVER
Price
$53.10
82-10
FRONT MOTOR BEARING
Price
$23.35
82-11
REAR MOTOR BEARING
Price
$13.45
82-2
MOTOR FAN
Price
$12.40
82-3
S CAPACITOR COVER
Price
$16.90
82-4
S CAPACITOR 300M 250V 1-3/4 X 3-3/4 SECC
Price
N/A
82-5
R CAPACITOR COVER
Price
$16.90
82-6
R CAPACITOR 60M 250V 1-1/2 X 2-1/2
Price
$30.75
82-7
MOTOR JUNCTION BOX
Price
$16.90
82-8
CONTACT PLT-TUNGSTEN 5HP OR LESS
Price
N/A
82-9
CENTRIFUGAL SWITCH 1725 W/ CONTACT PLATE
Price
$29.80
83
HEX BOLT M10-1.5 X 25
Price
N/A
84
LOCK WASHER 10MM
Price
N/A
85
MOTOR MOUNT BRACKET
Price
N/A
86
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
87
STRAIN RELIEF PLATE 2-HOLE
Price
N/A
88
FLANGE SCREW M5-.8 X 10
Price
N/A
89
PILLOW BLOCK
Price
N/A
90
KEY 5 X 5 X 35
Price
N/A
91
HEX BOLT M8-1.25 X 20 LH
Price
N/A
92
MOTOR PULLEY
Price
N/A
93
V-BELT A42
Price
N/A
94
CAP SCREW M6-1 X 10
Price
N/A
95
LOWER WHEEL COVER
Price
$162.30
95A
LOWER WHEEL COVER W/LABELS
Price
$114.60
96
CAP SCREW M6-1 X 16
Price
N/A
97
FENDER WASHER 8MM
Price
N/A
98
BRAKE LEVER
Price
$119.50
99
BRAKE PAD
Price
$62.20
100
BUSHING
Price
$3.05
101
CAP SCREW M8-1.25 X 25
Price
N/A
102
CAP SCREW M6-1 X 25
Price
N/A
103
LOCK WASHER 6MM
Price
N/A
104
BUSHING
Price
$3.55
105
BRAKE PEDAL PAD
Price
$25.20
106
EXTENSION SPRING
Price
$3.15
107
HEX NUT M4-.7
Price
N/A
108
TAP SCREW M4 X 8
Price
N/A
109
CORD CLAMP 5/8"
Price
$1.80
110
BRAKE SWITCH CORD
Price
$23.35
112
PHLP HD SCR M4-.7 X 30
Price
N/A
113
BRAKE SWITCH KL7141
Price
$30.20
114
CORD CONDUIT 1/2" X 43-5/16"
Price
$11.70
115
STRAIN RELIEF
Price
$1.80
116
FLAT WASHER 6MM
Price
N/A
117
LOCK NUT M8-1.25
Price
N/A
118
SLIDING PLATE
Price
$25.55
119
LOCK WASHER 8MM
Price
N/A
120
HEX BOLT M8-1.25 X 20
Price
N/A
121
TRUNNION PLATE
Price
$45.35
122
CAP SCREW M8-1.25 X 55
Price
N/A
125
FENCE ASSEMBLY
Price
N/A
125-1
FIXED BASE 710MM
Price
N/A
125-10
RAIL PAD ADJUSTMENT SCREW
Price
N/A
125-11
CONVEX WINDOW
Price
N/A
125-12
CAP SCREW M6-1 X 25
Price
N/A
125-13
CAP SCREW M6-1 X 25
Price
N/A
125-14
LOCK BLOCK
Price
N/A
125-15
HEX NUT M8-1.25
Price
N/A
125-16
FLANGE SCREW M4-.7 X 6
Price
N/A
125-17
SQUARE TUBE 710MM
Price
N/A
125-18
MOVING PLATE
Price
N/A
125-19
PLUG
Price
N/A
125-2
ADJUST BASE
Price
N/A
125-20
TAP SCREW M3.5 X 8
Price
N/A
125-21
FENCE SCALE 18-1/2"
Price
N/A
125-22
HEX NUT M6-1
Price
N/A
125-23
LOCK WASHER 6MM
Price
N/A
125-24
CAP SCREW M6-1 X 16
Price
N/A
125-25
HEX BOLT M6-1 X 20
Price
N/A
125-26
FLANGE BOLT M4-.7 X 8
Price
N/A
125-27
FLAT WASHER 6MM
Price
N/A
125-28
RESAW FENCE AL 640MM
Price
N/A
125-29
SPACER PLATE
Price
N/A
125-3
ALIGNMENT SHAFT
Price
N/A
125-30
RESAW FENCE END PLATE
Price
N/A
125-4
SHAFT
Price
N/A
125-5
SPRING PIECE
Price
N/A
125-6
***USE P0636X129***
Price
N/A
125-7
SUPPORT TUBE 640MM
Price
N/A
125-8
FLAT WASHER 8MM
Price
N/A
125-9
FENCE LOCK HANDLE M8-1.25 X 22, 30 X 77
Price
N/A
126
TABLE 27 X 19"
Price
$508.50
127
Table Insert for G0555X, G0457, G0513 Series, G0514 Series and G0640X
Price
N/A
128
TABLE LOCK PIN
Price
N/A
129
CAP SCREW M5-.8 X 10
Price
N/A
130
FLAT WASHER 5MM
Price
N/A
131
GUIDE POST COVER
Price
N/A
132
SHOULDER SCREW
Price
N/A
133
SLIDING PLATE
Price
N/A
134
WASHER 5MM (PLASTIC)
Price
N/A
137
CAP SCREW M6-1 X 20
Price
N/A
140
FLAT WASHER 6MM
Price
N/A
143
HANDWHEEL TYPE-17 137D X 10B-S X M10-1.5
Price
N/A
144
CAP SCREW M6-1 X 20
Price
N/A
152
UPPER BLADE GUIDE ASSEMBLY
Price
N/A
152-1
CAP SCREW M6-1 X 16
Price
N/A
152-10
CAP SCREW M6-1 X 35
Price
N/A
152-11
ADJUSTMENT BAR
Price
N/A
152-2
UPPER GUIDE SUPPORT BLOCK
Price
N/A
152-3
SET SCREW M6-1 X 10
Price
N/A
152-4
UPPER SPACING SHAFT
Price
N/A
152-5
UPPER BLADE GUIDE SUPPORT
Price
N/A
152-6
ECCENTRIC SHAFT
Price
N/A
152-7
EXT RETAINING RING 15MM
Price
N/A
152-8
BALL BEARING 6202ZZ
Price
N/A
152-9
HANDLE BUSHING
Price
N/A
153
LOWER BLADE GUIDE ASSY
Price
N/A
153-10
HANDLE BUSHING
Price
N/A
153-11
CAP SCREW M6-1 X 35
Price
N/A
153-5
LOWER BLADE GUIDE SUPPORT
Price
N/A
153-6
CAP SCREW M6-1 X 16
Price
N/A
153-7
ECCENTRIC SHAFT
Price
N/A
153-8
EXT RETAINING RING 15MM
Price
N/A
153-9
BALL BEARING 6202ZZ
Price
N/A
154
MITER GAUGE ASSY
Price
N/A
155
FLANGE SCREW M5-.8 X 50
Price
N/A
159
CAP SCREW M6-1 X 25
Price
N/A
160
BRUSH
Price
N/A
161
MAG SWITCH ASSY 3HP 220V V2.05.11
Price
N/A
161-1
MAG SWITCH BOX
Price
$43.65
161-2
CONTACTOR SDE MA-18 220V
Price
N/A
161-3
OL RELAY SDE RA-20 12-18A V1
Price
N/A
162
PHLP HD SCR M4-.7 X 10
Price
N/A
163
FLANGE SCREW M5-.8 X 10
Price
N/A
165
CONTROL CORD 16G 3W
Price
N/A
168
CORD CLAMP
Price
N/A
169
FLANGE SCREW M5-.8 X 12
Price
N/A
170
EXT TOOTH WASHER 5MM
Price
N/A
172
SPRING WASHER M8
Price
$1.80
173
STRAIN RELIEF 9 X 10MM
Price
$1.80
174
PLASTIC SET SCREW
Price
N/A
175
SPACER NYLON
Price
$1.80
176
CAP SCREW M10-1.5 X 35
Price
N/A
177
LOCK WASHER 10MM
Price
N/A
178
FLAT WASHER 10MM
Price
N/A
179
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
180
LOCK WASHER 8MM
Price
N/A
181
FLAT WASHER 8MM
Price
N/A
182
POWER CORD 14G 3W 6-15
Price
N/A
201
MODEL NUMBER LABEL
Price
$10.95
202
Nameplate - Large
Price
N/A
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
204
KEEP DOOR CLOSED 2W X 3.3H
Price
N/A
205
SCALE DIRECTIONS LABEL
Price
N/A
206
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
207
ELECTRICITY 1.4W X 1.2H
Price
N/A
208
BLADE HAZARD LABEL
Price
$1.45
209
TENSION ADJ LABEL
Price
N/A
210
SHOP FOX WHITE M1006
Price
N/A
211
TABLE LOCK LABEL
Price
$1.90
212
WOODSTOCK STRIPE LABEL
Price
$2.65
213
DISCONNECT 220V 2W X 3.3H
Price
N/A
215
BLADE TENSION LABEL
Price
$1.55
216
MACHINE ID LABEL
Price
$16.40
MAN
MANUAL W1825 MFG 03/12 V1.06.12
Price
$18.65
