Parts for G0887 - 20" x 26" 5 HP Industrial Horizontal Mitering Metal Cutting Bandsaw

Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887
Part Diagram for G0887

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
HEADSTOCK FRAME
Price
$7,352.50
2
BLADE TENSION ASSEMBLY COVER
Price
$237.30
3
FLAT WASHER 6MM
Price
N/A
4
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
5
BLADE GUIDE BLOCK
Price
$155.20
6
FLAT WASHER 10MM
Price
N/A
7
CAP SCREW M10-1.5 X 60
Price
N/A
8
STAND-OFF ROUND MF 20, M12-1.75
Price
$98.45
9
BLADE GUIDE WHEEL
Price
$137.70
10
BALL BEARING 6205ZZ
Price
N/A
11
INT RETAINING RING 47MM
Price
N/A
12
CUP WASHER 12 X 35 X 8
Price
$18.15
13
LOCK WASHER 12MM
Price
N/A
14
CAP SCREW M12-1.75 X 25
Price
N/A
15
FLAT WASHER 10MM
Price
N/A
16
LOCK WASHER 10MM
Price
N/A
17
CAP SCREW M10-1.5 X 25
Price
N/A
18
BLADE GUIDE ARM GIB
Price
$536.15
19
CAP SCREW M5-.8 X 8
Price
N/A
20
CAP SCREW M10-1.5 X 25
Price
N/A
21
HINGE
Price
$34.80
22
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
23
WHEEL COVER
Price
$928.35
24
BLADE GUIDE ARM BRACKET (LEFT)
Price
$238.20
25
BLADE 232" X 1-1/2" 4-TPI HOOK
Price
$564.25
26
HYDRAULIC STRUT
Price
$129.25
27
BLADE GUIDE ARM SCALE
Price
$124.15
28
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
29
THREADED SHAFT 40 X 56 X 312.5
Price
$261.80
30
TENSION/TRACKING SLIDE BLOCK
Price
$206.80
31
SOLID PIN 16 X 90MM
Price
$34.80
32
TRACKING ADJUSTMENT BRACKET
Price
$131.95
33
TENSION/TRACKING GIB
Price
$50.75
34
LOCK WASHER 10MM
Price
N/A
35
CAP SCREW M10-1.5 X 65
Price
N/A
36
IDLER WHEEL SHAFT
Price
$325.45
37
SET SCREW M12-1.75 X 20
Price
N/A
38
TENSION LEADSCREW
Price
$188.40
39
TENSION BUSHING 52 X 58 X 80
Price
$271.70
40
TENSION LIMIT BRACKET
Price
$37.20
41
HEX NUT M8-1.25
Price
N/A
42
HEX BOLT M8-1.25 X 100
Price
N/A
43
SPACER 20.5 X 50 X 40
Price
$51.35
44
BLADE TENSION GAUGE
Price
$246.35
45
SHAFT COLLAR M8-1.25
Price
$100.90
46
SET SCREW M8-1.25 X 12
Price
N/A
47
HANDWHEEL HUB 78D X 20B X M12-1.75
Price
$318.80
48
SET SCREW M8-1.25 X 12
Price
N/A
49
FIXED HANDLE 25 X 140, M12-1.75 X 18
Price
$108.70
50
THRUST BEARING 51204
Price
N/A
51
DISC SPRING 20.5 X 50
Price
$23.60
52
BLADE SPEED INDICATOR COVER
Price
$105.10
53
BANJO BOLT M12-1.75 X 20
Price
$7.90
54
BLADE BRUSH SHAFT COVER
Price
$55.30
55
IDLER WHEEL
Price
$967.25
56
TAPERED ROLLER BEARING 32009
Price
N/A
57
BEARING COVER
Price
$5.50
58
BEARING LOCK WASHER 45MM AW09
Price
$7.25
59
BEARING LOCK NUT M45-1.5 AN09
Price
$65.25
60
GREASE FITTING 1/8-NPT STRAIGHT
Price
$1.75
61
DRIVE WHEEL
Price
$1,065.05
62
BEARING LOCK WASHER 60MM AW12
Price
$11.85
63
BEARING LOCK NUT M60-2 AN12
Price
$33.25
64
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
65
SPRING ANCHOR BLOCK
Price
$195.95
66
LOCK WASHER 10MM
Price
N/A
67
CAP SCREW M10-1.5 X 25
Price
N/A
68
FLAT WASHER 6MM
Price
N/A
69
CAP SCREW M6-1 X 15
Price
N/A
70
DRIVE WHEEL GEARBOX
Price
$4,629.60
71
LOCK WASHER 12MM
Price
N/A
72
CAP SCREW M12-1.75 X 30
Price
N/A
73
SET SCREW M10-1.5 X 15
Price
N/A
74
KEY 18 X 11 X 45
Price
$15.15
75
KEY 7 X 8 X 60
Price
$5.50
76
MOTOR PULLEY W/SPEED DIAL
Price
$691.90
77
V-BELT 1922V504
Price
$387.65
78
CLEVIS PIN SHAFT 20 X 111 HEADLESS
Price
$26.35
79
EXT RETAINING RING 20MM
Price
N/A
80
MAIN MOTOR 5HP 220V 3-PH
Price
$854.65
80-1
MOTOR FAN W/COVER
Price
$376.75
80-2
MOTOR FAN W/COVER
Price
N/A
80-3
MOTOR JUNCTION BOX
Price
$51.35
80-4
BALL BEARING 6306ZZ
Price
N/A
80-5
BALL BEARING 6306ZZ
Price
N/A
81
LOCK WASHER 10MM
Price
N/A
82
HEX BOLT M10-1.5 X 35
Price
N/A
83
KEY 8 X 7 X 40
Price
N/A
84
BLADE GUIDE ARM BRACKET (RIGHT)
Price
$227.05
85
PULLEY COVER (INNER)
Price
$326.05
86
FLAT WASHER 5MM
Price
N/A
87
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
88
PULLEY COVER (OUTER)
Price
$75.50
89
FLAT WASHER 5MM
Price
N/A
90
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
91
STRUT BRACKET (RIGHT)
Price
$26.35
92
STRUT BRACKET (LEFT)
Price
$28.45
93
CAP SCREW M6-1 X 20
Price
N/A
94
LOCK WASHER 6MM
Price
N/A
95
PULLEY COVER BRACKET
Price
$27.20
96
FLAT WASHER 5MM
Price
N/A
97
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
98
HEX NUT M6-1
Price
N/A
99
FLAT WASHER 6MM
Price
N/A
100
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
101
CAP SCREW M6-1 X 25
Price
N/A
102
FLAT WASHER 6MM
Price
N/A
103
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
104
SPEED INDICATOR FACEPLATE
Price
$18.15
105
BLADE DRIP FLAP BRACKET
Price
$27.20
106
BLADE DRIP FLAP
Price
$4.30
107
BLADE DRIP FLAP BACKING
Price
$18.75
108
GEARBOX PULLEY
Price
$1,383.80
109
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
110
BLADE BRUSH MOTOR 60W 220V 3-PH
Price
$507.15
110-1
MOTOR FAN W/COVER
Price
N/A
110-2
MOTOR FAN W/COVER
Price
N/A
110-3
MOTOR JUNCTION BOX
Price
N/A
110-4
BALL BEARING 6200ZZ
Price
N/A
110-5
BALL BEARING 6000ZZ
Price
N/A
111
BLADE BRUSH GEARBOX
Price
$316.15
112
BLADE BRUSH MOTOR BRACKET
Price
$72.45
113
FLAT WASHER 8MM
Price
N/A
114
CAP SCREW M8-1.25 X 20
Price
N/A
115
FLAT WASHER 6MM
Price
N/A
116
LOCK WASHER 6MM
Price
N/A
117
HEX NUT M6-1
Price
N/A
118
BLADE BRUSH MOTOR BRACKET COVER
Price
$23.30
119
FLAT WASHER 6MM
Price
N/A
120
BUTTON HD CAP SCR M6-1 X 10
Price
N/A
121
UNIVERSAL JOINT
Price
$217.10
122
ROLL PIN 5 X 24
Price
N/A
123
BLADE BRUSH SHAFT (LONG)
Price
$27.80
124
BLADE BRUSH SHAFT (SHORT)
Price
$62.25
125
BLADE BRUSH COVER
Price
$113.85
126
BLADE BRUSH
Item is no longer available
Price
N/A
127
FLAT WASHER 6MM
Price
N/A
128
LOCK WASHER 6MM
Price
N/A
129
HEX NUT M6-1
Price
N/A
130
BLADE BRUSH ADJUSTMENT BRACKET
Price
$52.25
131
FLAT WASHER 8MM
Price
N/A
132
BUTTON HD CAP SCR M8-1.25 X 12
Price
$1.60
133
FLAT WASHER 6MM
Price
N/A
134
WING BOLT M6-1 X 12
Price
$4.85
135
BLADE BRUSH DRIP FLAP
Price
$4.60
136
PHLP HD SCR M3-.5 X 20
Price
N/A
137
BUSHING 12ID X 14OD X 20L
Price
$7.60
138
WHEEL COVER HANDLE
Price
$6.05
139
CAP SCREW M8-1.25 X 25
Price
N/A
140
HEX NUT M8-1.25
Price
N/A
141
FLAT WASHER 8MM
Price
N/A
142
CORD MOUNTING PLATE
Price
$12.40
143
HEX NUT M3-.5
Price
N/A
150
TABLE PLATFORM
Price
$2,028.95
151
CAP SCREW M12-1.75 X 200
Price
$1.60
152
SET SCREW M12-1.75 X 30
Price
N/A
153
ROLL PIN 8 X 12
Price
N/A
154
TABLE BASE (LOWER)
Price
$1,068.65
155
CAP SCREW M10-1.5 X 60
Price
N/A
156
TABLE BASE (UPPER)
Price
$547.00
157
CAP SCREW M8-1.25 X 60
Price
N/A
158
U-BRACKET
Price
$206.80
159
CAP SCREW M12-1.75 X 45
Price
N/A
160
FIXED VISE JAW (REAR)
Price
$460.40
161
FIXED VISE JAW (FRONT)
Price
$497.25
162
CAP SCREW M10-1.5 X 30
Price
N/A
163
VALVE BLOCK 1/4PT 2-WAY
Price
$48.95
164
WING BOLT M6-1 X 30
Price
$6.40
165
FLAT HD CAP SCR M6-1 X 16
Price
N/A
166
VISE TRACK STOP
Price
$5.50
170
TABLE GIB
Price
$520.20
171
CAP SCREW M12-1.75 X 35
Price
N/A
172
TABLE COVER (LOWER)
Price
$92.75
173
FLAT WASHER 6MM
Price
N/A
174
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
179
TABLE WORM SHAFT BASE BRACKET
Price
$67.65
180
TABLE WORM SHAFT BASE
Price
$185.10
181
FLAT WASHER 12MM
Price
N/A
182
LOCK WASHER 12MM
Price
N/A
183
CAP SCREW M12-1.75 X 35
Price
N/A
184
TABLE WORM SHAFT 6T
Price
$649.10
185
TAPERED ROLLER BEARING 30205
Price
N/A
186
BEARING LOCK WASHER 25MM AW05
Price
$1.60
187
BEARING LOCK NUT M25-1.5 AN05
Price
$23.60
188
KEY 8 X 7 X 35
Price
N/A
189
BALL BEARING 6007-2RS
Price
N/A
190
EXT RETAINING RING 35MM
Price
N/A
191
TABLE WORM SHAFT BASE COVER
Price
$93.00
192
FLAT WASHER 6MM
Price
N/A
193
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
195
TABLE DRIVE SHAFT
Price
$227.35
196
KEY 8 X 7 X 35
Price
N/A
197
TABLE MOTOR/GEARBOX BRACKET
Price
$165.45
198
FLAT WASHER 10MM
Price
N/A
199
CAP SCREW M10-1.5 X 25
Price
N/A
200
TABLE GEARBOX
Price
$545.55
202
LOCK WASHER 8MM
Price
N/A
203
CAP SCREW M8-1.25 X 20
Price
N/A
204
CAP SCREW M8-1.25 X 35
Price
N/A
205
TABLE MOTOR 1HP 220V 3-PH
Price
$458.30
205-1
MOTOR FAN W/COVER
Price
$70.70
205-2
MOTOR FAN W/COVER
Price
N/A
205-3
MOTOR JUNCTION BOX
Price
$70.70
205-4
BALL BEARING 6204ZZ
Price
N/A
205-5
BALL BEARING 6204ZZ
Price
N/A
206
KEY 6 X 6 X 22
Price
N/A
207
LOCK WASHER 6MM
Price
N/A
208
HEX BOLT M6-1 X 20
Price
N/A
210
DRIVE SHAFT WASHER 10 X 40 X 7
Price
$4.30
211
LOCK WASHER 10MM
Price
N/A
212
HEX BOLT M10-1.5 X 20
Price
N/A
215
TABLE MOTOR COVER
Price
$268.70
216
FLAT WASHER 8MM
Price
N/A
217
HEX NUT M8-1.25
Price
N/A
218
TABLE WORM GEAR COVER
Price
$129.25
219
LOCK WASHER 10MM
Price
N/A
220
CAP SCREW M10-1.25 X 35
Price
N/A
221
TABLE WORM GEAR SPACER
Price
$93.00
222
TABLE LOCK SHAFT
Price
$73.70
223
KEY 5 X 5 X 20
Price
N/A
224
SHAFT COLLAR M6-1
Price
$48.30
225
HEX BOLT M6-1 X 12
Price
N/A
226
EXT RETAINING RING 17MM
Price
N/A
227
FLAT WASHER 10MM
Price
N/A
228
LOCK WASHER 10MM
Price
N/A
229
CAP SCREW M10-1.5 X 80
Price
N/A
230
VISE BASE
Price
$1,166.20
231
VISE END
Price
$539.80
232
FLAT WASHER 12MM
Price
N/A
233
LOCK WASHER 12MM
Price
N/A
234
CAP SCREW M12-1.75 X 55
Price
N/A
235
SLEEVE BEARING 45 X 55 X 40
Price
$209.85
236
VISE SHAFT
Price
$520.75
237
VISE HYDRAULIC CYLINDER
Price
$1,154.70
238
MOVABLE VISE JAW
Price
$680.80
239
VISE SLIDE BLOCK
Price
$252.15
240
CAP SCREW M12-1.75 X 40
Price
N/A
241
CAP SCREW M8-1.25 X 30
Price
N/A
242
MOVABLE VISE JAW PLATE
Price
$285.00
243
CAP SCREW M8-1.25 X 20
Price
N/A
245
TABLE COVER (UPPER)
Price
$243.05
246
WORKSTOP SCALE SUPPORT ROD
Price
$248.20
247
WORKSTOP ROD SCALE
Price
$36.25
248
RIVET 2 X 5MM NAMEPLATE, STEEL
Price
N/A
249
HEX NUT M22-1.5
Price
$5.50
250
TABLE GIB
Price
$60.40
251
ROLL PIN 6 X 15
Price
$1.60
252
TABLE GIB LOCK BLOCK
Price
$155.20
253
SET SCREW M6-1 X 8
Price
N/A
254
CAP SCREW M8-1.25 X 30
Price
N/A
255
TABLE GIB RELEASE BLOCK
Price
$48.30
256
HEX NUT M8-1.25
Price
N/A
257
HEX BOLT M8-1.25 X 20
Price
N/A
258
TABLE LOCK HANDLE HUB
Price
$204.10
259
STUD-DE M10-1.5 X 146, 12
Price
$77.60
260
KNOB M10-1.5, D23, TAPERED
Price
$17.55
261
WORKSTOP BRACKET
Price
$145.55
262
ADJUSTABLE HANDLE M8-1.25 X 20, 52L
Price
$44.10
263
ADJUSTABLE HANDLE M8-1.25 X 50, 82L
Price
$44.10
264
WORKSTOP DISTANCE ROD
Price
$77.60
265
TABLE WHEEL BRACKET
Price
$86.95
266
LOCK WASHER 10MM
Price
N/A
267
CAP SCREW M10-1.5 X 20
Price
N/A
268
FLAT WASHER 8MM
Price
N/A
269
LOCK WASHER 8MM
Price
N/A
270
CAP SCREW M8-1.25 X 20
Price
N/A
271
BALL BEARING 6204ZZ
Price
N/A
272
CAP SCREW M12-1.75 X 40
Price
N/A
273
FLAT WASHER 12MM
Price
N/A
274
LOCK WASHER 12MM
Price
N/A
275
HEX NUT M12-1.75
Price
N/A
276
AXLE SLEEVE
Price
$34.80
277
HEX NUT M10-1.5
Price
N/A
278
HEX BOLT M10-1.5 X 35
Price
N/A
279
KNOB BOLT M6-1 X 10, 5-LOBE, D35
Price
$3.05
300
HEADSTOCK SWIVEL BASE
Price
$1,656.15
301
HEADSTOCK SWIVEL SHAFT
Price
$285.95
302
TAPERED ROLLER BEARING 30312J
Price
$103.50
303
HEADSTOCK SWIVEL COVER (TOP)
Price
$150.95
304
BEARING LOCK NUT M60-2 AN12
Price
$33.25
305
CAP SCREW M8-1.25 X 20
Price
N/A
306
BEARING LOCK WASHER 60MM AW12
Price
$11.85
307
O-RING 52 X 4
Price
$4.85
308
HEADSTOCK SWIVEL COVER (BOTTOM)
Price
$193.20
309
ANGLE INDICATOR PLATE
Price
$20.85
310
TABLE WORM GEAR 42T
Price
$619.80
311
ROLL PIN 8 X 15
Price
$1.60
312
LOCK WASHER 10MM
Price
N/A
313
CAP SCREW M10-1.5 X 35
Price
N/A
314
SENSOR BRACKET
Price
$36.25
315
EXTENSION SPRING BRACKET
Price
$254.55
316
LOCK WASHER 8MM
Price
N/A
317
CAP SCREW M8-1.25 X 25
Price
N/A
318
FLAT WASHER 12MM
Price
N/A
319
HEX NUT M12-1.75
Price
N/A
320
EYE BOLT M12-1.75 X 40
Price
$11.85
321
EXTENSION SPRING 9 X 55 X 550
Price
$221.30
322
HEX NUT M12-1.75
Price
N/A
323
CAP SCREW M12-1.75 X 80
Price
N/A
324
CUP WASHER 12 X 25 X 12
Price
$90.30
325
PIVOT BLOCK
Price
$232.50
326
CAP SCREW M14-2 X 75
Price
N/A
327
BUSHING 40ID X 45OD X 40.5L
Price
$85.75
328
FLAT WASHER 5MM
Price
N/A
329
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
330
HEX NUT M10-1.5
Price
N/A
331
HEX BOLT M10-1.5 X 55
Price
N/A
332
HEX NUT M20-2.5
Price
N/A
333
HEX BOLT M20-2.5 X 50
Price
$7.25
334
LIMIT SWITCH BRACKET
Price
$44.10
335
SENSOR BRACKET
Price
$69.50
336
FLAT WASHER 6MM
Price
N/A
337
CAP SCREW M6-1 X 10
Price
N/A
338
FLAT WASHER 5MM
Price
N/A
339
BUTTON HD CAP SCR M5-.8 X 10
Price
N/A
340
HEADSTOCK HYDRAULIC CYLINDER
Price
$731.20
341
HEX NUT M20-1.5
Price
N/A
342
ROD-END BEARING POS-20
Price
$97.25
343
CYLINDER SUPPORT BLOCK
Price
$183.90
344
CAP SCREW M8-1.25 X 10
Price
N/A
345
CLEVIS PIN 20 X 70 HEADLESS
Price
$45.35
346
EXT RETAINING RING 20MM
Price
N/A
347
O-RING 70 X 3.1 G70
Price
$2.75
348
FLAT WASHER 6MM
Price
N/A
349
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
350
CUTOFF CHUTE
Price
$327.90
351
FLAT WASHER 12MM
Price
N/A
352
LOCK WASHER 12MM
Price
N/A
353
CAP SCREW M12-1.75 X 20
Price
N/A
360
MACHINE BASE
Price
$5,487.20
361
TABLE WHEEL TRACK
Price
$260.60
362
FLAT WASHER 10MM
Price
N/A
363
CAP SCREW M10-1.5 X 20
Price
N/A
364
SET SCREW M8-1.25 X 12
Price
N/A
365
FLAT WASHER 6MM
Price
N/A
366
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
367
COOLANT PUMP BRACKET
Price
$57.40
368
FLAT WASHER 6MM
Price
N/A
369
BUTTON HD CAP SCR M6-1 X 15
Price
N/A
370
COOLANT PUMP 1/8HP 220V 3-PH
Price
$394.90
371
LOCK WASHER 6MM
Price
N/A
372
HEX BOLT M6-1 X 15
Price
N/A
373
ACCESS PANEL (FRONT)
Price
$89.70
374
ACCESS PANEL (REAR)
Price
$157.00
375
ACCESS PANEL (RIGHT)
Price
$43.80
376
CAP SCREW M6-1 X 12
Price
N/A
377
HEX BOLT M8-1.25 X 20
Price
N/A
378
GREASE GUN
Price
$76.10
379
HEX WRENCH SET 1.5-10MM 10-PC
Price
$56.20
380
SPLASH GUARD (RIGHT)
Price
$162.15
381
FLAT WASHER 8MM
Price
N/A
382
LOCK WASHER 8MM
Price
N/A
383
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
384
DRIP TRAY
Price
$162.15
385
CHIP COLLECTION BIN
Price
$301.00
386
SPLASH GUARD (FRONT)
Price
$326.35
387
SPLASH GUARD (REAR)
Price
$196.85
388
FLAT WASHER 8MM
Price
N/A
389
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
390
LOCK WASHER 8MM
Price
N/A
391
HEX NUT M8-1.25
Price
N/A
392
FLAT WASHER 8MM
Price
N/A
393
LOCK WASHER 8MM
Price
N/A
394
BUTTON HD CAP SCR M8-1.25 X 20
Price
N/A
395
SUPPORT BRACKET (SHORT)
Price
$63.75
396
SUPPORT BRACKET (LONG)
Price
$69.50
397
SUPPORT BRACKET W/HOSE CATCH
Price
$69.50
400

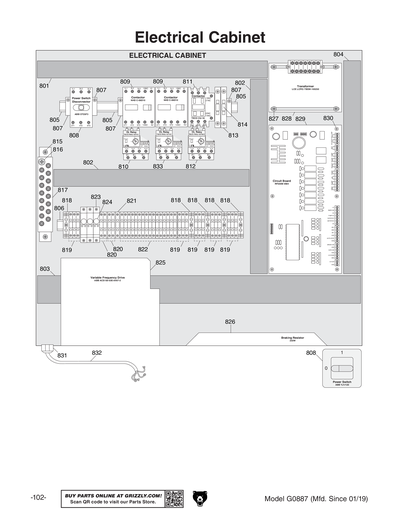

ELECTRICAL CABINET
Price
$583.25
401
ELECTRICAL PANEL
Price
$162.15
402
ELECTRICAL CABINET DOOR
Price
$173.65
403
ADJUSTABLE WRENCH
Price
$76.10
404
WRENCH 21 X 23MM OPEN-ENDS
Price
N/A
405
WRENCH 17 X 19MM OPEN-ENDS
Price
N/A
406
WRENCH 14 X 17MM OPEN-ENDS
Price
N/A
407
WRENCH 12 X 14MM OPEN-ENDS
Price
N/A
408
WRENCH 10 X 12MM OPEN-ENDS
Price
N/A
409
WRENCH 8 X 9MM OPEN-ENDS
Price
$76.10
410
CONTROL PANEL SUPPORT BRACKET
Price
$208.90
411
FLAT WASHER 8MM
Price
N/A
412
CAP SCREW M8-1.25 X 20
Price
N/A
413
FLAT WASHER 8MM
Price
N/A
414
CAP SCREW M8-1.25 X 15
Price
N/A
415
TOOLBOX
Price
$79.70
416
FLAT WASHER 6MM
Price
N/A
417
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
418
SCREWDRIVER PHILLIPS #1
Price
$14.50
419
SCREWDRIVER FLAT #1
Price
$14.50
420
CONTROL PANEL SWIVEL BASE (BOTTOM)
Price
$159.75
421
CONTROL PANEL SWIVEL BASE (TOP)
Price
$124.15
422
HEX NUT M8-1.25
Price
N/A
423
SET SCREW M8-1.25 X 15
Price
N/A
424
ADJUSTABLE HANDLE M8-1.25 X 25, 57L
Price
$41.10
425
FLAT WASHER 8MM
Price
N/A
426
CAP SCREW M8-1.25 X 15
Price
N/A
427
CONTROL PANEL SUPPORT ARM
Price
$248.20
428
FLAT WASHER 6MM
Price
N/A
429
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
435
CONTROL PANEL BOX
Price
$361.40
436
FLAT WASHER 5MM
Price
N/A
437
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
438
FLAT WASHER 5MM
Price
N/A
439
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
440
CONTROL PANEL HANDLE
Price
$6.40
441
CAP SCREW M8-1.25 X 25
Price
N/A
442
HEX NUT M8-1.25
Price
N/A
443
CONTROL PANEL ACCESS PANEL
Price
$31.40
445
FEED-RATE CONTROL UNIT
Price
$331.80
446
PHLP HD SCR M5-.8 X 10
Price
N/A
447
DIAL EXTENSION
Price
$77.60
448
SET SCREW M6-1 X 10
Price
N/A
449
FEED-RATE SPEED DIAL
Price
$112.30
450
CIRCUIT BOARD ASSEMBLY
Price
N/A
451
FLAT WASHER 5MM
Price
N/A
452
BUTTON HD CAP SCR M5-.8 X 12
Price
N/A
470
HYDRAULIC PUMP ASSEMBLY
Price
$6,194.50
470-1
MOTOR FAN COVER
Price
$67.40
470-10
SAW BOW SOLENOID VALVE D5-3C4-02-AC24
Price
$576.65
470-11
FILL CAP AB-1162
Price
$187.20
470-12
HYDRAULIC FLUID TANK
Price
$1,246.80
470-13
OIL LEVEL GAUGE LS-3
Price
$187.20
470-14
MANIFOLD ASSEMBLY HORIZONTAL
Price
$576.65
470-15
PILOT CHECK VALVE MPC-02-W-30
Price
$426.90
470-16
PRESSURE GAUGE
Price
$163.05
470-17
PRESSURE CHECK VALVE 1/4"PT
Price
$54.35
470-18
PRESSURE SENSOR PMM50A14K
Price
$202.30
470-19
MANIFOLD ASSEMBLY VERTICAL
Price
$767.40
470-2
MOTOR FAN
Price
$57.70
470-20
FLOW CONTROL VALVE ASSEMBLY PT-02
Price
$576.65
470-3
MOTOR JUNCTION BOX
Price
$45.00
470-4
BALL BEARING 6205ZZ
Price
N/A
470-5
BALL BEARING 6204ZZ
Price
N/A
470-6
HYDRAULIC MOTOR 2HP 220V 3-PH
Price
$1,729.50
470-7
SUCTION FILTER ASSEMBLY
Price
$745.05
470-8
HYDRAULIC PUMP LUKU-12L-35KG
Price
$912.90
470-9
VISE SOLENOID VALVE D5-3C2-02-AC24
Price
$767.40
471
HYDRAULIC REGULATOR LUKU BRV-02G-1
Price
$566.65
472
HYDRAULIC HOSE 1/4 D X 2200MM
Price
$118.10
473
HYDRAULIC HOSE 1/4 D X 5800MM
Price
$179.70
474
HYDRAULIC HOSE 1/4 D X 4800MM
Price
$202.30
475
HYDRAULIC HOSE 1/4 D X 3200MM
Price
$160.05
476
HYDRAULIC HOSE 1/4 D X 2900MM
Price
$147.35
477
HYDRAULIC HOSE 1/4 D X 900MM, 90-DEG
Price
$72.45
478
HYDRAULIC HOSE 1/4 D X 900MM, 90-DEG
Price
N/A
479
HYDRAULIC HOSE 1/4 D X 900MM
Price
$63.45
480
HYDRAULIC HOSE 1/4 D X 2100MM
Price
$113.85
481
HYDRAULIC REGULATOR BRACKET
Price
$57.40
482
FLAT WASHER 6MM
Price
N/A
483
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
484
HEX BOLT M16-2 X 75
Price
N/A
485
HEX NUT M16-2
Price
N/A
486
FOOT PAD
Price
$19.10
487
COOLANT RESERVOIR DRAIN PLUG M16-2
Price
$7.90
488
COOLANT THERMOMETER UNIT
Price
$60.15
489
WIRED 220V LABEL
Price
$1.35
500
BLADE GUIDE SUPPORT ARM (LEFT)
Price
$317.90
501
BLADE GUIDE ARM GIB
Price
$115.95
502
FLAT WASHER 12MM
Price
N/A
503
ADJUSTABLE HANDLE M12-1.75 X 50, 93L
Price
$51.35
504
BLADE GUIDE SUPPORT ARM (RIGHT)
Price
$241.50
510
BLADE GUIDE MOUNTING BLOCK (RIGHT)
Price
$373.45
511
FLAT WASHER 10MM
Price
N/A
512
CAP SCREW M10-1.5 X 40
Price
N/A
513
SET SCREW M8-1.25 X 20
Price
N/A
514
CARBIDE GUIDE MOUNTING BLOCK (RIGHT)
Price
$237.00
515
CAP SCREW M8-1.25 X 40
Price
N/A
516
CAP SCREW M6-1 X 22
Price
N/A
517
CARBIDE BLADE GUIDE (REAR)
Price
$204.70
518
CARBIDE BLADE GUIDE (FRONT)
Price
$204.70
519
CARBIDE BLADE GUIDE (TOP)
Price
$204.70
521
BLADE GUIDE MOUNTING BLOCK (LEFT)
Price
$363.20
522
BLADE GUIDE SHAFT
Price
$20.85
523
COMPRESSION SPRING 1.2 X 10.8 X 24.2
Price
$2.75
524
BLADE GUIDE KNOB M18-1.5 X 25 KNURLED
Price
$62.25
525
FLAT WASHER 8MM
Price
N/A
526
BALL BEARING 6201ZZ
Price
N/A
527
BLADE GUIDE BUSHING
Price
$27.80
528
BLADE GUIDE ECCENTRIC BUSHING
Price
$34.80
529
LOCK WASHER 8MM
Price
N/A
530
CAP SCREW M8-1.25 X 40
Price
N/A
531
CARBIDE GUIDE MOUNTING BLOCK (LEFT)
Price
$235.50
532
BLADE GUARD (LEFT)
Price
$101.45
533
BLADE GUARD EXTENSION
Price
$58.00
534
FLAT WASHER 6MM
Price
N/A
535
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
536
FLAT WASHER 6MM
Price
N/A
537
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
538
BLADE GUARD (RIGHT)
Price
$72.45
540
SUPPORT VISE BASE
Price
$391.25
541
SUPPORT VISE BASE LOCK COLLAR
Price
$60.40
542
ADJUSTABLE HANDLE M8-1.25 X 40, 72L
Price
$44.10
543
FLAT WASHER 12MM
Price
N/A
544
ADJUSTABLE HANDLE M12-1.75 X 40, 83L
Price
$77.95
545
SET SCREW M8-1.25 X 15
Price
N/A
546
SUPPORT VISE JAW/GUIDE
Price
$275.35
547
SUPPORT VISE ADJUSTMENT SHAFT
Price
$144.65
548
SUPPORT VISE LEADSCREW SLEEVE
Price
$224.05
549
SET SCREW M8-1.25 X 10
Price
N/A
550
SUPPORT VISE LEADSCREW
Price
$180.90
551
BUSHING
Price
$51.35
552
SUPPORT VISE HANDLE HUB
Price
$98.45
553
ROLL PIN 5 X 25
Price
N/A
554
STANDOFF-ROUND FF M6-1, 150
Price
$51.35
555
BUTTON HD CAP SCR M6-1 X 12
Price
N/A
601
CONNECTOR 3/8PT X 3/8PT STRAIGHT
Price
$8.50
602
T- CONNECTOR 3/8PT
Price
$13.60
603
HOSE FITTING 3/8PT X 5/16PT
Price
$7.60
604
COOLANT HOSE 5/16" X 1800MM
Price
$8.50
605
VALVE ASSEMBLY 1/4PT X 5/16PT BRASS
Price
$7.25
606
FLEXIBLE COOLANT NOZZLE 1/4PT, 12", SS
Price
$75.20
607
COOLANT HOSE 5/16" X 2800MM
Price
$13.60
608
3-WAY HOSE CONNECTOR 5/16PT BRASS
Price
$16.95
609
COOLANT HOSE 5/16" X 2500MM
Price
$11.85
610
COOLANT HOSE 5/16" X 1800MM
Price
$8.50
611
HOSE CLIP 5/16"
Price
$4.30
612
HOSE FITTING 3/8PT X 1/2PT
Price
$9.40
613
COOLANT HOSE 1/2" X 2800MM
Price
$46.85
614
COOLANT SPRAY GUN
Price
$42.00
701
CIRCUIT BOARD ASSEMBLY
Price
N/A
701-1
CIRCUIT BOARD ASSEMBLY
Price
$1,032.45
702
ELECTRONIC COUNTER GIKOKA EM 6R22
Price
$109.90
703
HEADSTOCK JOYSTICK SCHNEIDER 2D-PA103
Price
$203.20
704
BUTTON SWITCH NHD CB-10, PL-BA9 NLB22-F
Price
$47.10
705
E-STOP BUTTON KEDU HY57B
Price
$47.10
706
KEY SWITCH NHD CB-01 NSS22-K
Price
$57.70
707
CIRCUIT BOARD ASSEMBLY
Price
N/A
708
LIMIT SWITCH CANLIE AZD-1001T
Price
$81.55
709
LIMIT SWITCH SHINOZAKI AZD-1001T
Price
$74.00
710
BLADE SPEED SENSOR & SPEEDOMETER W/PCB
Price
$315.70
711
CIRCUIT BOARD ASSEMBLY
Price
N/A
712
POTENTIOMETER COSMOS RV24YN 20S
Price
$79.70
713
LIMIT SWITCH CANLIE AZD-S11
Price
$67.95
714
PHLP HD SCR M3-.5 X 8
Price
N/A
715
INT TOOTH WASHER 8MM
Price
N/A
716
HEX NUT M8-1.25
Price
N/A
717
PROXIMITY SENSOR TKT TM-0801NO
Price
$307.95
801
WIRING LOOM 1-1/4 X 1-3/4 X 14"
Price
$31.75
802
WIRING LOOM 1-1/4 X 1-3/4 X 13"
Price
$31.75
803
WIRING LOOM 1-3/4 X 1-3/4 X 20-1/2"
Price
$47.45
804
WIRING LOOM 1 X 1-3/4 X 13"
Price
$43.25
805
DIN RAIL 1-3/8 X 3/8 X 12"
Price
$20.30
806
DIN RAIL 1-3/8 X 3/8 X 12"
Price
N/A
807
DIN RAIL END CAP
Price
$3.05
808
POWER SWITCH ASSY ABB 0T25F3/YJ1/20 V1
Price
$218.30
808V2
POWER SWITCH ASSY NHD NDS-203G V2.03.24
Price
$239.10
809
CONTACTOR NHD C-06D10 24V
Price
$85.20
810
OL RELAY TECO RHU-10/1K1 .75-1A
Price
$70.05
811
CONTACTOR TECO CU-18 24V
Price
$145.55
812
OL RELAY TECO RHU-10/16K1 11.3-16A
Price
$71.60
813
FUSE HOLDER
Price
$23.60
814
FUSE 5A 250V CERAMIC 0.18"
Price
$8.20
815
PHLP HD SCR M4-.7 X 15
Price
N/A
816
P0887816
Now: PS07
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
817
GROUND TERMINAL 16-POLE 1-PIECE
Price
$32.05
818
TERMINAL BAR 1P
Price
$23.60
819
TERMINAL BAR 3P
Price
$8.20
820
TERMINAL BAR 2P
Price
$8.20
821
TERMINAL BAR 1P
Price
$9.70
822
TERMINAL BAR 16P
Price
$8.20
823
FUSE HOLDER WOHNER AES 10 X 38
Price
$38.10
824
FUSE 32A 250V CERAMIC 0.36"
Price
$14.25
825
***SEE EXT DESC***
Item is no longer available
Price
N/A
825V2
VFD DELTA VFD4A8MS23ANSAA V2.05.23
Price
$764.35
826
BRAKING RESISTOR 250W
Price
$129.85
827
PHLP HD SCR M5-.8 X 10
Price
N/A
828
TRANSFORMER 250VA 0/250V-24/200V
Price
$245.15
829
CIRCUIT BOARD RF500M 0904
Price
$626.70
829V2
CIRCUIT BOARD RF500MB V2.11.19
Price
$612.25
830
PHLP HD SCR M3-.5 X 8
Price
N/A
831
STRAIN RELIEF TYPE-3 1
Price
$5.15
832
POWER CORD 10G 4W 120"
Price
$189.35
833
OL RELAY TECO RHU-10/1K1 5.5-7.5A
Price
$70.05
901
SAFETY GLASSES 3.8W X 2H
Price
N/A
902
ELECTRICITY 0.7W X 0.6H
Price
N/A
903
MODEL NUMBER LABEL
Price
$12.60
904
MACHINE ID LABEL
Price
$16.40
905
DISCONNECT 220V 2W X 3.3H
Price
N/A
906
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
907
FLUID CAPACITY LABEL
Price
$3.70
908
Nameplate - Large
Price
N/A
909
GRIZZLY.COM LABEL 13.5",BEIGE
Price
N/A
910
ELECTRICITY 1.4W X 1.2H
Price
N/A
911
BANDSAW BLADE 1.5W X 2H
Price
N/A
912
220V 3-PHASE ELECTRICITY 2.8W X 1.5H
Price
N/A
913
N/S GRIZZLY GREEN G1023S
Price
N/A
914
GREY PUTTY REF G0504
Price
N/A
MAN
MANUAL G0887 MFD-01.19+ V1.11.21
Price
$13.75
