Parts for T1189 - Dual End Cutter for G0825

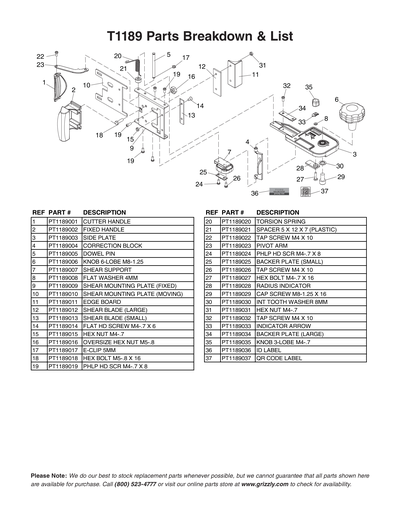

Part Diagram for T1189

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

Ref #
Part #
Description
1
Price
$1.60
2
Price
$1.85
3
Price
$3.95
4
Price
$1.60
5
Price
$1.60
6
Price
$3.40
7
Price
$1.60
8
FLAT WASHER 4MM
Price
N/A
9
SHEAR MOUNTING PLATE (FIXED)
Price
$9.10
10
SHEAR MOUNTING PLATE (MOVING)
Price
$7.25
11
Price
$3.40
12
Price
$24.80
13
Price
$19.25
14
FLAT HD SCR M4-.7 X 6
Price
N/A
15
HEX NUT M4-.7
Price
N/A
16
Price
$1.60
17
E-CLIP 5MM
Price
N/A
18
HEX BOLT M5-.8 X 16
Price
N/A
19
PHLP HD SCR M4-.7 X 8
Price
N/A
20
Price
$2.20
21
SPACER 5 X 12 X 7 (PLASTIC)
Price
$1.60
22
TAP SCREW M4 X 10
Price
N/A
23
Price
$2.45
24
PHLP HD SCR M4-.7 X 8
Price
N/A
25
Price
$1.85
26
TAP SCREW M4 X 10
Price
N/A
27
HEX BOLT M4-.7 X 16
Price
N/A
28
Price
$1.60
29
CAP SCREW M8-1.25 X 16
Price
N/A
30
INT TOOTH WASHER 8MM
Price
N/A
31
HEX NUT M4-.7
Price
N/A
32
TAP SCREW M4 X 10
Price
N/A
33
Price
$1.60
34
Price
$2.45
35
Price
$1.60
36
Price
$1.05
37
Price
$1.05
MAN
MANUAL T1189 MFD-06.17 V1.09.17
Price
$14.65
