Parts for G0458ZX - 18" 2 HP Open-End Variable-Speed Drum Sander

Part Diagram for G0458ZX
Part Diagram for G0458ZX
Part Diagram for G0458ZX
Part Diagram for G0458ZX
Part Diagram for G0458ZX
Part Diagram for G0458ZX
Part Diagram for G0458ZX

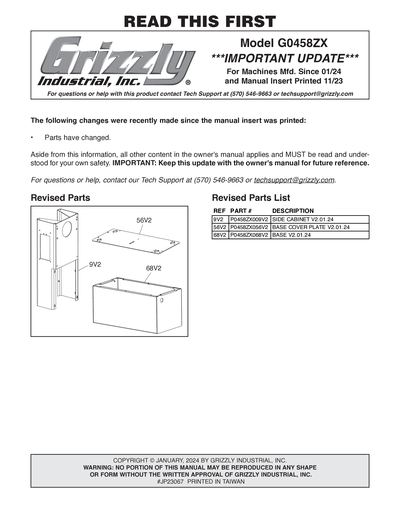

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

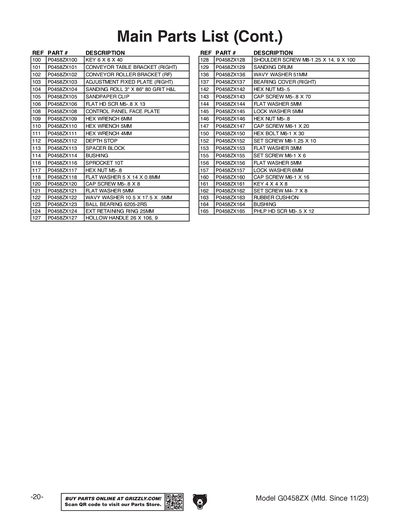

Ref #
Part #
Description
1
SIDE COVER
Price
N/A
2
PHLP HD SCR M5-.8 X 8
Price
N/A
2V2
PHLP HD SCR M5-.8 X 6
Price
N/A
3
FLAT WASHER 5MM
Price
N/A
4
DRIVE PULLEY
Price
N/A
5
SET SCREW M6-1 X 10
Price
N/A
6
COVER
Price
N/A
7
CAP SCREW M5-.8 X 16
Price
N/A
8
CAP SCREW M8-1.25 X 20
Price
N/A
9
SIDE CABINET V2.01.24
Price
N/A
9-1
SIDE CABINET PLATE (FRONT)
Price
$74.25
9-2
SIDE CABINET PLATE (REAR)
Price
$70.75
9-3
SIDE CABINET PLATE (SIDE)
Price
$60.45
9V2
SIDE CABINET V2.01.24
Price
$25.95
10
ELECTRICAL BOX COVER
Price
N/A
11
CIRCUIT BREAKER L1 SERIES 25A
Price
N/A
12
PADDLE SAFETY SWITCH KEDU HY18-4P
Price
N/A
13
POTENTIOMETER KNOB
Price
N/A
14
PHLP HD SCR M5-.8 X 16
Price
N/A
15
CIRCUIT BOARD F2H11853A0 V2.01.23
Price
N/A
16
TAP SCREW M2.9 X 9.5
Price
$1.60
17
POTENTIOMETER W/WIRES AND PLUG V2
Price
N/A
18
FENDER WASHER 6MM
Price
N/A
19
POINTER
Price
N/A
20
EXT RETAINING RING 17MM
Price
N/A
21
FLAT WASHER 12MM
Price
N/A
22
HEAD CASTING
Price
N/A
23
TABLE HEIGHT SCALE
Price
N/A
24
CAP SCREW M6-1 X 12
Price
N/A
25
TORSION SPRING (LEFT)
Price
N/A
26
TORSION SPRING (RIGHT)
Price
N/A
27
ROLLER MOUTING PLATE
Price
N/A
28
ROLLER
Price
N/A
29
PIVOT SHOULDER PIN
Price
N/A
30
CHIP DEFLECTOR PLATE
Price
N/A
31
FLAT HD SCR M6-1 X 10
Price
N/A
32
TAP SCREW M4.8 X 10
Price
$1.60
33
TOP COVER
Price
N/A
34
HINGE 3"
Price
N/A
35
EXT RETAINING RING 20MM
Price
N/A
36
FEED ROLLER BRACKET (REAR)
Price
N/A
37
BUSHING
Price
N/A
38
FEED BELT ROLLER V2.06.19
Price
N/A
39
MOTOR SUPPORT BRACKET
Price
N/A
40
MOTOR MOUNTING BRACKET
Price
N/A
41
FIXED BLOCK (RIGHT)
Price
$22.50
42
MOTOR 4GN-50K 90W 110VDC
Price
$0.00
42-1
MOTOR BRUSHES (2-PC SET)
Price
$0.00
43
CONVEYOR TABLE
Price
N/A
44
CONVEYOR TABLE BRACKET (LEFT)
Price
$43.25
45
FIXED BLOCK (LEFT)
Price
$22.30
46
PLATE
Price
N/A
47
LOCK COLLAR 16MM
Price
N/A
48
SET SCREW M5-.8 X 8
Price
N/A
49
FEED BELT ROLLER
Price
N/A
50
HEX BOLT M8-1.25 X 20
Price
N/A
51
HEX NUT M8-1.25
Price
N/A
52
CONVEYOR ROLLER BRACKET (LF)
Price
$20.70
53
ADJUSTABLE FIXED PLATE (LEFT)
Price
$17.30
54
BEARING COVER (LEFT)
Price
N/A
55
DUST COVER
Price
N/A
56
BASE COVER PLATE V2.01.24
Price
N/A
56V2
BASE COVER PLATE V2.01.24
Price
$43.25
57
CAP SCREW M6-1 X 12
Price
N/A
58
BUTTON HD CAP SCR M6-1 X 14
Price
N/A
59
SET SCREW M5-.8 X 5
Price
N/A
60
LOCK WASHER 8MM
Price
N/A
61
BALL BEARING 61904ZZ
Price
$13.80
62
BEARING COVER
Price
N/A
63
SPROCKET
Price
N/A
64
ELEVATION SCREW CAP
Price
N/A
65
GEAR 65T
Price
N/A
66
BRACKET
Price
N/A
67
ELEVATION SCREW ROD
Price
N/A
68
BASE V2.01.24
Price
N/A
68-1
BASE PANEL (FRONT)
Price
$77.65
68-2
BASE PANEL (REAR)
Price
$77.65
68-3
BASE PANEL (RIGHT)
Price
$69.05
68-4
BASE PANEL (LEFT)
Price
$79.40
68V2
BASE V2.01.24
Price
$184.30
69
V-BELT A40
Price
N/A
70
CAP SCREW M8-1.25 X 16
Price
N/A
71
DRIVE PULLEY V2.07.19
Price
N/A
72
STRAIN RELIEF TYPE-3 M20-2.5
Price
N/A
73
WRENCH 8 X 12 OPEN-ENDS
Price
N/A
74
MOTOR 2HP 120V 1-PH
Price
$390.35
74-1
MOTOR FAN COVER
Price
$6.20
74-2
MOTOR FAN
Price
$11.85
74-3
S CAPACITOR 350M 250V
Price
$31.10
74-4
R CAPACITOR 40M 450V 2-1/4 X 4-1/2
Price
N/A
74-5
CAPACITOR COVER
Price
$6.10
74-6
CONTACT PLATE
Price
$10.75
74-7
CENTRIFUGAL SWITCH
Price
$10.75
74-8
BALL BEARING 6203-2RS
Price
N/A
74-9
BALL BEARING 6202-2RS
Price
N/A
75
WORM GEAR
Price
N/A
76
EXT RETAINING RING 12MM
Price
N/A
77
SHAFT
Price
N/A
78
ROLL PIN 3 X 20
Price
N/A
79
HANDWHEEL TYPE-3 177D X M6-1
Price
N/A
80
LOCK WASHER 10MM
Price
N/A
81
HEX BOLT M6-1 X 40
Price
N/A
82
CHAIN 410-130
Price
$34.50
83
CAP SCREW M5-.8 X 8
Price
N/A
84
FLAT WASHER 6MM
Price
N/A
85
ADJUSTMENT BLOCK
Price
N/A
86
CAP SCREW M8-1.25 X 55 DOG-PT
Price
$1.60
87
CAP SCREW M5-.8 X 35
Price
N/A
88
BUTTON HD CAP SCR M5-.8 X 8
Price
N/A
89
BUTTON HD CAP SCR M6-1 X 20
Price
N/A
90
HEX NUT M6-1
Price
N/A
91
CORD CLAMP
Price
N/A
92
CAP SCREW M10-1.5 X 25
Price
N/A
93
FLAT WASHER 10MM
Price
N/A
94
HOOK-AND-LOOP DRUM COVER
Price
$17.65
95
CONVEYOR BELT V2.11.16
Price
N/A
96
CAP SCREW M6-1 X 30
Price
N/A
96V2
FLAT HD CAP SCR M6-1 X 30
Price
N/A
97
POWER CORD 14G 3W 72" 5-15P
Price
N/A
98
FLAT WASHER 12MM
Price
N/A
99
FLAT WASHER 8MM
Price
N/A
100
KEY 6 X 6 X 40
Price
N/A
101
CONVEYOR TABLE BRACKET (RIGHT)
Price
$43.25
102
CONVEYOR ROLLER BRACKET (RF)
Price
$20.70
103
ADJUSTABLE FIXED PLATE (RIGHT)
Price
$17.30
104
3" x 50' A/O Sanding Roll 80 Grit, H&L
Price
N/A
105
SANDPAPER CLIP
Price
$4.10
106
FLAT HD SCR M5-.8 X 13
Price
$1.60
108
CONTROL PANEL PLATE
Price
N/A
109
HEX WRENCH 6MM
Price
N/A
110
HEX WRENCH 5MM
Price
N/A
111
HEX WRENCH 4MM
Price
N/A
112
INFEED COVER
Price
N/A
113
SPACER BLOCK
Price
N/A
114
BUSHING
Price
N/A
116
SPROCKET
Price
N/A
117
HEX NUT M5-.8
Price
N/A
118
FLAT WASHER 5 X 14 OD X 0.8 T
Price
N/A
120
CAP SCREW M5-.8 X 8
Price
N/A
121
FLAT WASHER 5MM
Price
N/A
122
WAVY WASHER 10.5 X 17.5 X .5MM
Price
$1.60
123
BALL BEARING 6205-2RS
Price
N/A
124
EXT RETAINING RING 25MM
Price
N/A
127
HOLLOW HANDLE 26 X 106, 9
Price
N/A
128
SHOULDER SCREW M8-1.25 X 14, 9 X 100
Price
$2.60
129
SANDING DRUM
Price
$178.55
136
WAVY WASHER 51MM
Price
$1.60
137
BEARING COVER
Price
N/A
142
HEX NUT M3-.5
Price
N/A
143
CAP SCREW M5-.8 X 70
Price
$1.60
144
FLAT WASHER 5MM
Price
N/A
145
LOCK WASHER 5MM
Price
N/A
146
HEX NUT M5-.8
Price
N/A
147
CAP SCREW M6-1 X 20
Price
N/A
150
HEX BOLT M6-1 X 30
Price
N/A
152
SET SCREW M8-1.25 X 10
Price
N/A
153
FLAT WASHER 3MM
Price
N/A
155
SET SCREW M6-1 X 6
Price
N/A
156
FLAT WASHER 5MM
Price
N/A
157
LOCK WASHER 6MM
Price
N/A
160
CAP SCREW M6-1 X 16
Price
N/A
161
KEY 4 X 4 X 8
Price
N/A
162
SET SCREW M4-.7 X 8
Price
N/A
163
RUBBER CUSHION V2.01.23
Price
N/A
164
BUSHING
Price
N/A
165
PHLP HD SCR M3-.5 X 12
Price
N/A
201
STAND ASSEMBLY
Price
$348.50
201-1
TOP PLATE (FRONT/REAR)
Price
$31.85
201-10
HEX BOLT M8-1.25 X 60
Price
N/A
201-11
LOCK NUT M8-1.25
Price
N/A
201-12
CARRIAGE BOLT M8-1.25 X 16
Price
N/A
201-13
FLANGE NUT M8-1.25
Price
N/A
201-14
LOCK WASHER 8MM
Price
N/A
201-15
HEX NUT M8-1.25
Price
N/A
201-2
TOP PLATE (LEFT/RIGHT)
Price
$11.90
201-3
STAND LEG
Price
$42.20
201-4
SUPPORT BRACKET (FRONT/REAR)
Price
$21.10
201-5
SUPPORT BRACKET (LEFT/RIGHT)
Price
$9.45
201-6
CASTER LOCK ASSEMBLY
Price
$44.40
201-7
FOOT PAD M8-1.25 X 22
Price
$2.00
201-8
CASTER, 3" SWIVEL
Price
$19.95
201-9
BUTTON HD CAP SCR M8-1.25 X 16
Price
N/A
301
ENTANGLEMENT HAZARD 1.5W X 2.5H
Price
N/A
302
ELECTRICITY 1.4W X 1.2H
Price
N/A
303
COMBO READ-PPE LABEL
Price
$0.00
304
COMBO PINCH-KICKBACK LABEL
Price
$0.00
305
Nameplate - Mini
Price
N/A
306
MODEL NUMBER LABEL
Price
$0.00
307
DISCONNECT 110V 1.5W X 2.5H
Price
N/A
308
GREY PUTTY REF G0504
Price
N/A
309
GLOSSY BLACK
Price
N/A
310
GRIZZLY.COM LABEL
Price
$2.55
311
MACHINE ID LABEL
Price
$4.85
MAN
MANUAL G0458ZX MFD-04.24+ V2.07.24
Price
N/A
MANV2
MANUAL G0458ZX MFD-04.24+ V2.07.24
Price
$22.80
