Parts for G1079R - 16" 2 HP Drum Sander w/ Rubber Conveyor

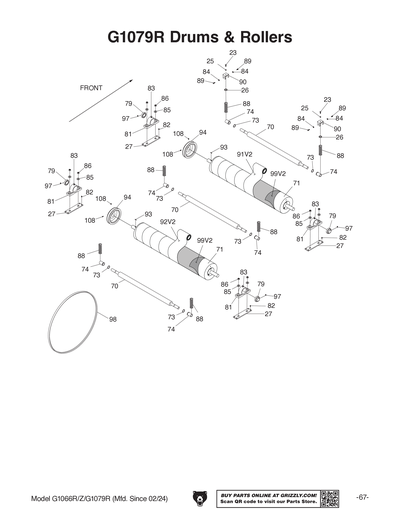

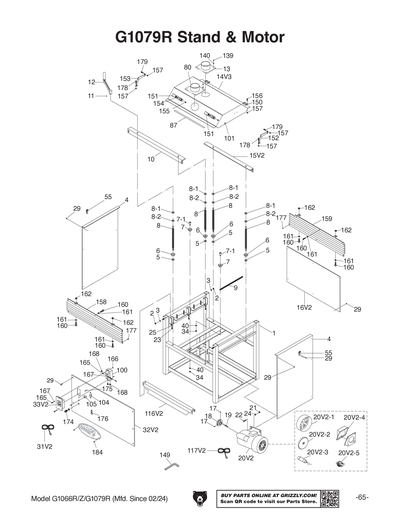

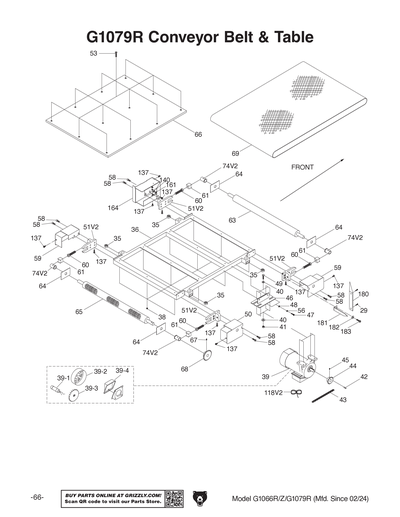

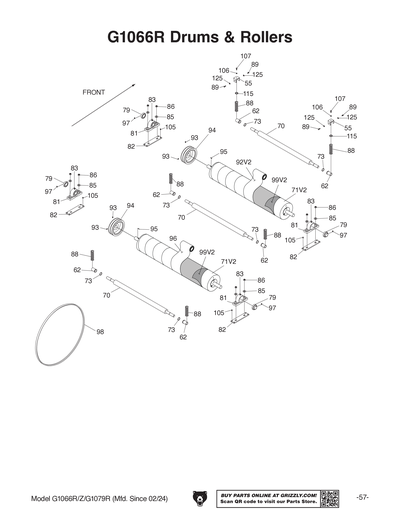

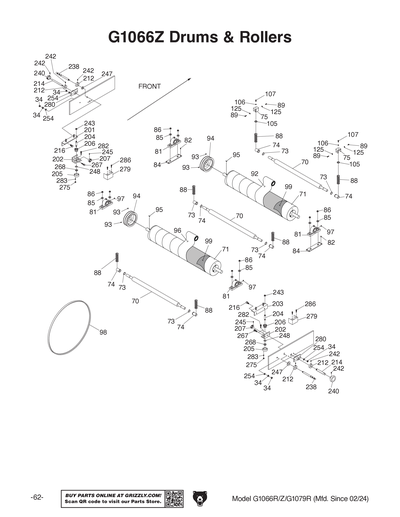

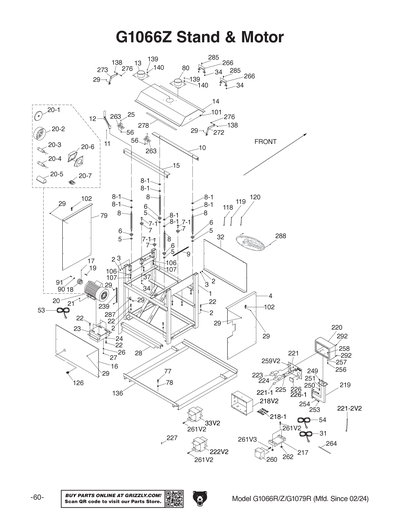

Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R
Part Diagram for G1079R

IMPORTANT: Parts may have multiple versions that have changed over time. This will be indicated by V1, V2, V3, etc. in the parts description, followed by the version month and year that it was first used. Example: V2.01.17 indicates version 2 of a part went into use in January 2017. Please reference the manufacture date on the ID Label for your machine to ensure you are selecting the correct part when multiple versions are indicated.

If you cannot locate your part below, please contact our tech support department at techsupport@grizzly.com or 570-546-9663.

Please note: All parts ship out of our Springfield, Missouri facility.

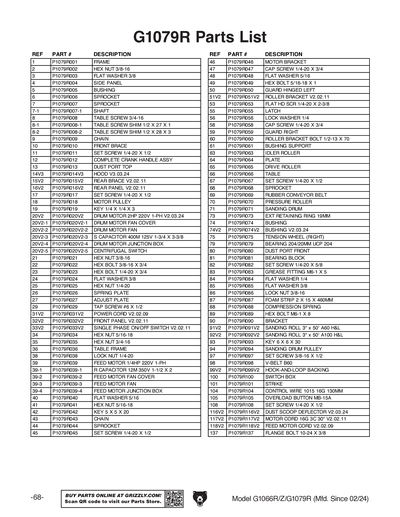

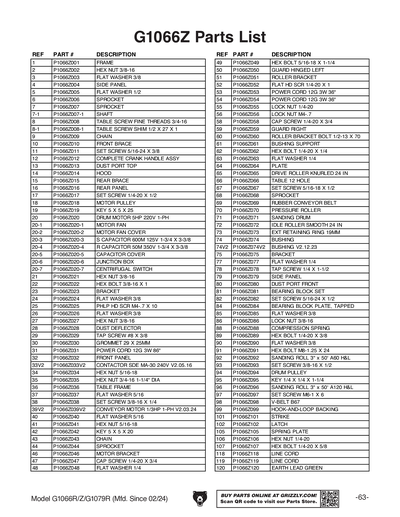

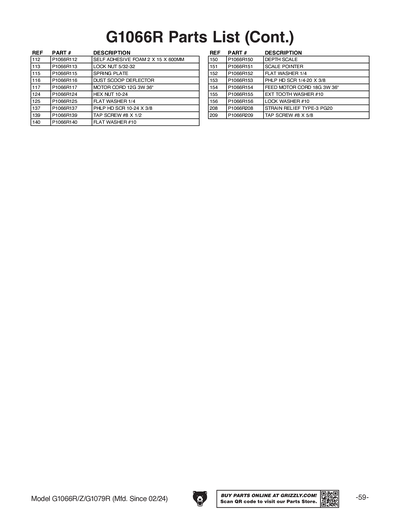

Ref #
Part #
Description
1
FRAME
Price
N/A
2
HEX NUT 3/8-16
Price
N/A
3
FLAT WASHER 3/8
Price
N/A
4
SIDE PANEL
Price
N/A
5
BRASS SHIM
Price
N/A
6
SPROCKET
Price
N/A
7
SPROCKET
Price
N/A
7-1
SHAFT
Price
N/A
8
TABLE SCREW 3/4-16
Price
N/A
8-1
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
8-2
TABLE SCREW SHIM 1/2 X 28 X 3
Price
$4.50
8A
TABLE SCREW SHIM 1/2 X 27 X 1
Price
N/A
9
CHAIN
Price
N/A
10
FRONT BRACE
Price
N/A
11
SET SCREW 1/4-20 X 1/2
Price
N/A
12
COMPLETE CRANK HANDLE ASSY
Price
N/A
13
Universal Dust Port
Price
N/A
14
HOOD
Price
N/A
14V2
HOOD V2.02.11
Price
$86.95
14V3
HOOD V3.03.24
Price
$172.05
15
REAR BRACE
Price
N/A
15V2
REAR BRACE V2.02.11
Price
$25.10
16
REAR PANEL
Price
N/A
16V2
REAR PANEL V2.02.11
Price
$35.65
17
SET SCREW 1/4-20 X 1/2
Price
N/A
18
MOTOR PULLEY
Price
N/A
19
KEY 1/4 X 1/4 X 3
Price
N/A
20
MOTOR 2HP 220V 1-PH
Price
N/A
20-1
DRUM MOTOR FAN COVER
Price
$7.00
20-2
DRUM MOTOR FAN
Price
$3.65
20-3
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
$18.15
20-4
DRUM MOTOR JUNCTION BOX
Price
$4.30
20-5
CENTRIFUGAL SWITCH
Price
$9.05
20V2
DRUM MOTOR 2HP 220V 1-PH V2.03.24
Price
$597.75
20V2-1
DRUM MOTOR FAN COVER
Price
$12.75
20V2-2
DRUM MOTOR FAN
Price
$9.70
20V2-3
S CAPACITOR 400M 125V 1-3/4 X 3-3/8
Price
N/A
20V2-4
DRUM MOTOR JUNCTION BOX
Price
$8.20
20V2-5
CENTRIFUGAL SWITCH
Price
$9.10
21
HEX NUT 3/8-16
Price
N/A
22
HEX BOLT 3/8-16 X 3/4
Price
N/A
23
HEX BOLT 1/4-20 X 3/4
Price
N/A
24
FLAT WASHER 3/8
Price
N/A
25
HEX NUT 1/4-20
Price
N/A
26
SPRING PLATE
Price
N/A
27
ADJUST PLATE
Price
N/A
28
HEX NUT 8-32
Price
N/A
29
TAP SCREW #6 X 1/2
Price
N/A
30
PHLP HD SCR 8-32 X 3/8
Price
N/A
31
POWER CORD
Price
N/A
31V2
POWER CORD V2.02.09
Price
$14.50
32
FRONT PANEL
Price
N/A
32V2
FRONT PANEL V2.02.11
Price
$35.65
33
Safety Paddle Switch
Price
N/A
33V2
Single-Phase On/Off Switch 120/230V
Price
N/A
34
HEX NUT 5/16-18
Price
N/A
35
HEX NUT 3/4-16
Price
N/A
36
TABLE FRAME
Price
N/A
37
FLAT WASHER 5/16
Price
N/A
38
LOCK NUT 1/4-20
Price
N/A
39
FEED MOTOR 1/4HP 220V 1-PH
Price
N/A
39-1
R CAPACITOR 12M 350V 1-1/2 X 2
Price
$23.50
39-2
FEED MOTOR FAN COVER
Price
$10.90
39-3
FEED MOTOR FAN
Price
$3.65
39-4
FEED MOTOR JUNCTION BOX
Price
$4.30
40
FLAT WASHER 5/16
Price
N/A
41
HEX NUT 5/16-18
Price
N/A
42
KEY 5 X 5 X 20
Price
N/A
43
CHAIN
Price
N/A
44
SPROCKET
Price
N/A
45
SET SCREW 1/4-20 X 1/2
Price
N/A
46
MOTOR BRACKET
Price
N/A
47
CAP SCREW 1/4-20 X 3/4
Price
N/A
48
FLAT WASHER 5/16
Price
N/A
49
HEX BOLT 5/16-18 X 1
Price
N/A
50
GUARD HINGED LEFT
Price
N/A
51
ROLLER BRACKET
Price
N/A
51V2
ROLLER BRACKET V2.02.11
Price
$24.50
53
FLAT HD SCR 1/4-20 X 2-3/8
Price
N/A
54
STRIKE
Price
N/A
55
LATCH
Price
N/A
56
LOCK WASHER 1/4
Price
N/A
58
CAP SCREW 1/4-20 X 3/4
Price
N/A
59
GUARD RIGHT
Price
N/A
60
ROLLER BRACKET BOLT 1/2-13 X 70
Price
N/A
61
BUSHING SUPPORT
Price
N/A
62
BUSHING
Price
N/A
63
IDLER ROLLER
Price
N/A
64
PLATE
Price
N/A
65
DRIVE ROLLER
Price
N/A
66
TABLE
Price
N/A
67
SET SCREW 1/4-20 X 1/2
Price
N/A
68
SPROCKET
Price
N/A
69
RUBBER CONVEYOR BELT
Price
$253.60
70
PRESSURE ROLLER
Price
N/A
71
SAND DRUM
Price
N/A
73
EXT RETAINING RING 19MM
Price
N/A
74
BUSHING
Price
N/A
74V2
BUSHING V2.12.23
Price
N/A
76
CLIP
Price
N/A
77
TENSION WHEEL
Price
N/A
78
FLAT HD ALLEN SCR 1/4-20 X 1/2
Price
N/A
79
BEARING 204/20MM UCP 204
Price
N/A
80
DUST PORT 6-1/4 X 5
Price
N/A
81
BEARING BLOCK
Price
N/A
82
SET SCREW 1/4-20 X 5/8
Price
N/A
83
GREASE FITTING M6-1 X 5
Price
N/A
84
FLAT WASHER 1/4
Price
N/A
85
FLAT WASHER 3/8
Price
N/A
86
LOCK NUT 3/8-16
Price
N/A
87
TENSION SPRING
Price
N/A
88
COMPRESSION SPRING
Price
N/A
89
HEX BOLT M6-1 X 8
Price
N/A
90
BRACKET
Price
N/A
91
6" x 50' A/O Sanding Roll 60-X Grit, Cloth
Price
N/A
91V2
3" x 50' A/O Sanding Roll 60 Grit, H&L
Price
N/A
92
6" x 50' A/O Sanding Roll 100-X Grit, Cloth
Price
N/A
92V2
3" x 50' A/O Sanding Roll 100 Grit, H&L
Price
N/A
93
KEY 6 X 6 X 30
Price
N/A
94
DRUM PULLEY ADC3 V1
Price
$65.25
97
SET SCREW 3/8-16 X 1/2
Price
N/A
98
V-BELT B60
Price
N/A
99
FELT 19 X 24 IN
Price
N/A
99V2
HOOK-AND-LOOP BACKING
Price
$32.65
100
SWITCH BOX
Price
$16.00
101
STRIKE
Price
N/A
104
CONTROL WIRE 1015 16G 130MM
Price
$7.00
105
OVERLOAD BUTTON MB-15A
Price
$9.70
108
SET SCREW 1/4-20 X 1/2
Price
N/A
116
DUST SCOOP DEFLECTOR
Price
N/A
116V2
DUST SCOOP DEFLECTOR V2.03.24
Price
$21.10
117
MOTOR CORD 3C 750MM V1
Price
$10.65
117V2
MOTOR CORD 16G 3C 30" V2.02.11
Price
$12.10
118
ELEVATION MOTOR CORD
Price
$5.50
119
SPRING CLIP V2.09.22
Price
N/A
120
PHLP HD SCR M5-.8 X 10
Price
N/A
121
FLAT WASHER 5MM
Price
N/A
122
CAP SCREW M5-.8 X 10
Price
N/A
137
FLANGE BOLT 10-24 X 3/8
Price
N/A

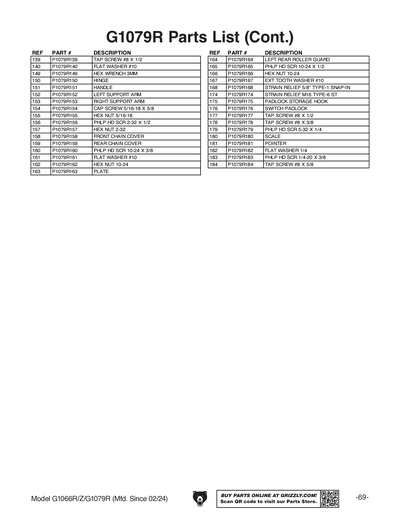

139
TAP SCREW #8 X 1/2
Price
N/A
140
FLAT WASHER #10
Price
N/A
149
HEX WRENCH 3MM
Price
N/A
150
HINGE
Price
$4.85
151
HANDLE
Price
$2.75
152
LEFT SUPPORT ARM
Price
$13.95
153
RIGHT SUPPORT ARM
Price
$13.95
154
CAP SCREW 5/16-18 X 5/8
Price
N/A
155
HEX NUT 5/16-18
Price
N/A
156
PHLP HD SCR 2-32 X 1/2
Price
$3.55
157
HEX NUT 2-32
Price
$4.45
158
FRONT CHAIN COVER
Price
$83.35
159
REAR CHAIN COVER
Price
$83.35
160
PHLP HD SCR 10-24 X 3/8
Price
N/A
161
FLAT WASHER #10
Price
N/A
162
HEX NUT 10-24
Price
N/A
163
PLATE
Price
$9.10
164
LEFT REAR ROLLER GUARD
Price
$36.25
165
PHLP HD SCR 10-24 X 1/2
Price
N/A
166
HEX NUT 10-24
Price
N/A
167
EXT TOOTH WASHER #10
Price
N/A
168
STRAIN RELIEF 5/8" TYPE-1 SNAP-IN
Price
$1.60
170
FLAT WASHER 1/2
Price
N/A
171
SPROCKET SHAFT
Price
$29.00
172
LOCK WASHER 1/4
Price
N/A
173
FLAT WASHER 6MM
Price
N/A
174
STRAIN RELIEF M16 TYPE-6 ST
Price
N/A
175
PADLOCK STORAGE HOOK
Price
$2.45
176
SWITCH PADLOCK
Price
$14.25
177
TAP SCREW #8 X 1/2
Price
N/A
178
TAP SCREW #8 X 3/8
Price
N/A
179
PHLP HD SCR 5-32 X 1/4
Price
$1.60
180
SCALE
Price
N/A
181
POINTER
Price
N/A
182
FLAT WASHER 1/4
Price
N/A
183
PHLP HD SCR 1/4-20 X 3/8
Price
N/A
184
TAP SCREW #8 X 5/8
Price
N/A

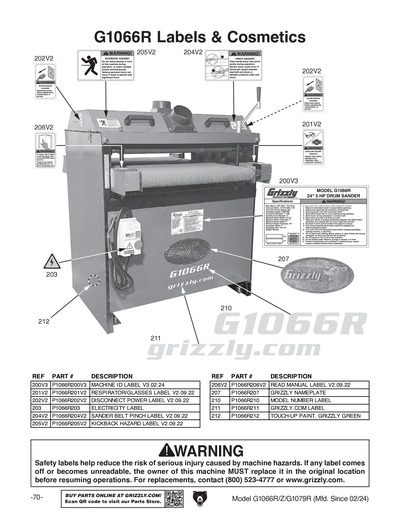

200

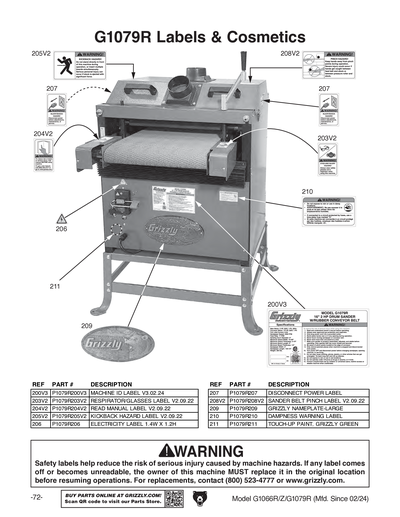

MACHINE ID/WARNING LABEL
Price
$16.40
200V2
ID/WARNING LABEL V2.09.22
Price
$5.55
200V3
MACHINE ID LABEL V3.02.24
Price
$10.95
203
SAFETY GLASSES 2W X 3.3H V2.04.08
Price
N/A
203V2
GLASSES/RESPIRATOR 2W X 3.3H
Price
N/A
204
READ MANUAL 2W X 3.3H V2.07.05
Price
N/A
204V2
READ MANUAL 1.5W X 2.5H
Price
N/A
205
DISCONNECT SANDER 220V 2W X 3.3H
Price
N/A
205V2
KICKBACK HAZARD LABEL V2.09.22
Price
N/A
206
ELECTRICITY 1.4W X 1.2H
Price
N/A
207
DISCONNECT 110V 2W X 3.3H
Price
N/A
208
FEED ONLY ONE 5.3W X 2.8H V2.04.08
Price
N/A
208V2
SANDER BELT PINCH 4W X 2.1H
Price
N/A
209
Nameplate - Small
Price
N/A
210
DAMPNESS WARNING LABEL
Price
$2.85
211
N/S GRIZZLY GREEN G1023S
Price
N/A
MAN
MANUAL FOR G1079R 02/07
Price
$12.50
MANV2
G1066R/Z/G1079R MFD-02.11-01.24 V2.10.18
Price
N/A
MANV3
G1066R/Z/G1079R MFD-02.24-03.25 V3.02.24
Price
N/A
MANV4
G1066R/Z/G1079R MFD-04.25+ V4.02.25
Price
N/A
