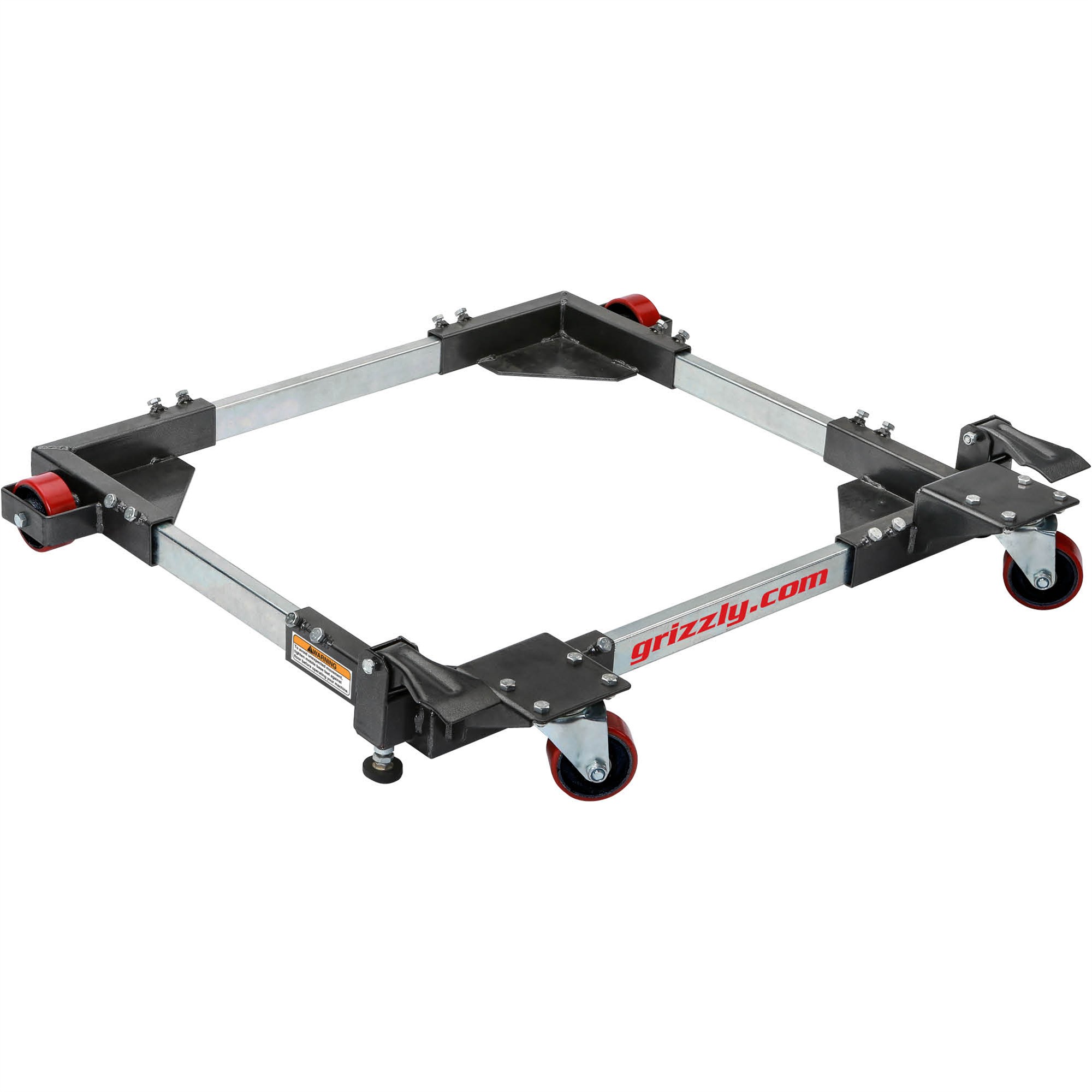

T28000 Bear Crawl Heavy-Duty Mobile Base
The freedom of mobility, made easy.
Adding a T28000 Bear Crawl Mobile Base under your machine will help you easily move equipment around your shop to free up more time and space to work on your projects at hand.
Adjustable in size from 19" x 21" to 29-1/2" x 29-1/2, these mobile bases are designed to fit machines weighing up to 1200 pounds!
Utilizing swivel and fixed casters to provide an excellent range of motion, you can maneuver your machine in even the smallest shop. Heavy-duty polyurethane and steel casters offer smooth movement and won’t leave marks on your shop floor.
The easy-to-use toe flip-stops allow for quick movement and secure parking of your machine. To move it just lift the toe-flip lever to engage the wheels. Once your machine is in position, press down on the toe-flip lever to drop the positive stop rubber leveling feet.
Depend on the rigid, solid assembly resulting from the solid steel construction and reinforced welded caster posts. Angle bolts make assembly easy, allowing you to construct the base around your machine — no need to lift your machine onto the mobile base. Bolts are strategically placed to provide extra clearance for cabinet doors.
The perfect mobile accessory for your woodworking machines.
If you need to extend the footprint of what this mobile base already offers, you may want to consider the T28346 Extension Bars.
Use of this mobile base raises the machine 1" above the floor. When the pedal is released the top only moves 1/32“ because it puts the weight on the wheels.
Like all of the Grizzly mobile bases, the T28000 comes with a 1-year warranty covering parts and assuring the unit is free from factory defects.
The T28000 manual was written by our U.S. based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your universal mobile base.
The Grizzly Customer Service and Technical Support Teams are U.S. based. Parts for the mobile base may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Minimum inside dimensions: 19" x 21”
- Maximum inside dimensions: 29-1/2" x 29-1/2"
- Maximum weight capacity: 1200 lbs.
- Approximate shipping weight: 38 lbs.
- Machine height above the floor when in use: 1"
FEATURES:
- Heavy-duty polyurethane/steel casters with sealed bearings
- Reinforced/welded caster posts
- Adjustable steel bars
- Powder coated finish to protect against the elements
- Adjustable positive stop/rubber leveling feet
- Two fixed casters and two swivel casters
- Easy-float toe flip-lifting levers
- Corner-tight engagement bolts
Please note: To accommodate machines with large footprints, extension bars may be necessary when using a mobile base.
