- Motor: 2 HP
- Max cutting width: 13-1/2 in.
- Max cutting height: 14 in.
- Table size: 16-1/8 in. x 21-3/4 in.
- Wheel type: Cast Iron
- Blade size: 120 in.
- Quick blade change: Yes
- Overall height: 76 in.
- Shipping weight: 332 lbs.
Hover to View 14" Models
Accessories

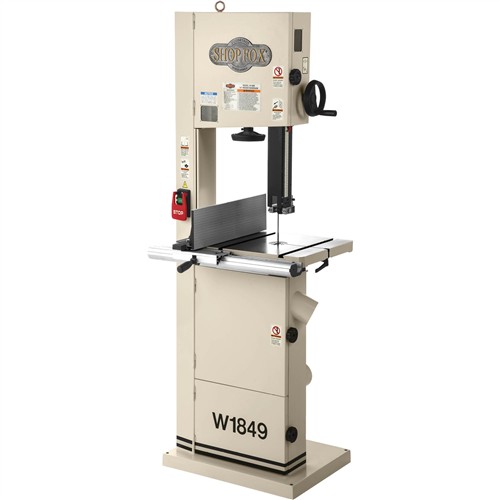

Shop Fox W1849 14" 2 HP Resaw Bandsaw
You can’t go wrong with this award-winning 14" bandsaw.
Versatility, capacity, strength and exceptional value are key components going into the build of this middle-weight workhorse.
The Shop Fox W1849 14" 2 HP Resaw Bandsaw was awarded Top Tool by WOOD Magazine for its performance and combination of features over the competition.
The 2 HP motor powered through 14"-wide cuts–the widest in the test–without bogging down.
The European design elements, such as roller disc blade guides, steel column box-frame with rigid “W” shaped spine, and a hinged blade guard enclosure are the extras that make this saw a pleasure to use.
With the W1849, you won’t pay more for important accessories like the premium, dual-height fence with a hairline indicator scale.
The cast-iron and aluminum extruded fence can be set to the low (1/2") position for close-in detail work, or at 6" for extra support when resawing taller pieces.
A 4" dust-collection port is incorporated at the bottom of the lower wheel cabinet. An additional 4" dust-collection port is used in tandem with dual blade brushes for efficient removal of debris from the blade just below the table.
Add in a storage cabinet for blades, a quick-release blade tension lever, and viewing windows for tracking and blade tension settings, and you’ve got a feature-packed machine with a small footprint and over-sized performance.
For a full range replacement and resaw blades for the W1849, shop here.
The W1849 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Motor: 2 HP, 110V/220V (prewired 110V), single-phase, 19A/9.5A
- Throat (max. width left of blade): 13-1/2"
- Resaw height: 14"
- Blade size: 120" (1/8" to 3/4" widths)
- Blade speed: 2820 FPM
- Table size: 21-3/4" x 16-1/8"
- Table tilt: 5° L, 45° R
- Floor to table height: 37"
- Footprint: 23" W x 18"
- Overall size: 27-1/2" W x 32" D x 76" H
- Approximate shipping weight: 376 lb.
FEATURES:
- Two-year warranty!!
- Deluxe 2-height resaw fence and drift bar
- Computer-balanced cast-iron wheels
- Blade tension and tracking windows
- "Euro-style" roller-disc guides
- Dual 4" dust ports
Need help?
We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition.
