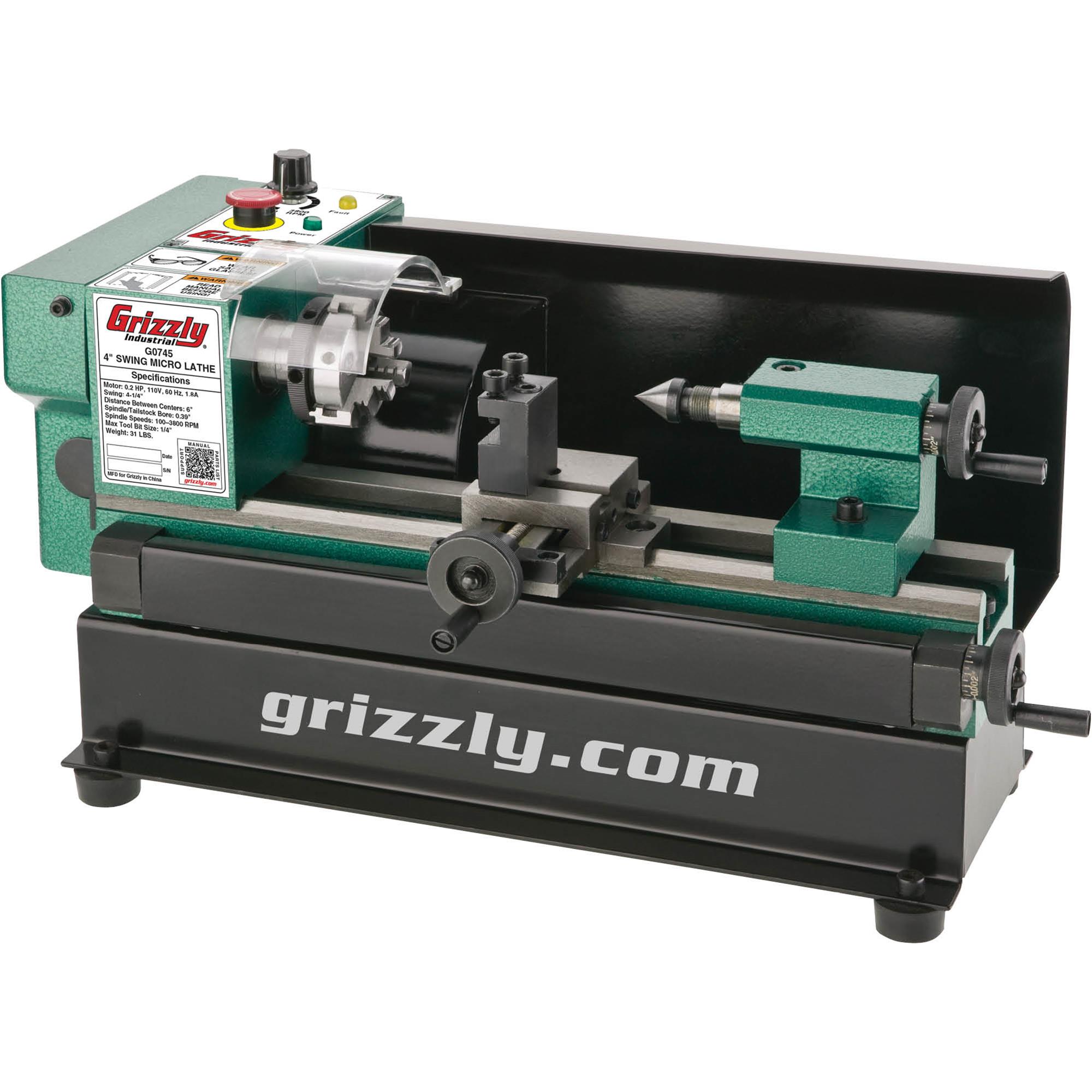

G0745 4" x 6" 150W Variable-Speed Benchtop Metal Lathe

Stop searching! This is the small hobby lathe you've been looking for.

The G0745 Variable-Speed Benchtop Metal Lathe is a great machine for jewelers, model makers, or hobbyists who want to turn small parts, but don’t have the need for a full-sized lathe.

The choice between a micro lathe and a larger one depends on the your specific needs, available space, budget, and project requirements.

This can easily fit into smaller workshops or garages, making it a more practical choice for those with space constraints.

Micro lathes generally come at a lower price point compared to larger, industrial-grade lathes. This makes them a more affordable option for beginners.

The G0745 features 4-1/4" of swing, 6" between centers, a variable-speed spindle, and a 3-jaw chuck.

The G0745 manual was written by our U.S.-based Documentation Department is packed with useful information.

The Grizzly Technical Support team is also U.S.-based. Parts for the lathe may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Motor: 1/5 HP, 110V, single-phase 1.8A
• Swing over bed: 4-1/4"
• Swing over cross slide: 2"
• Distance between centers: 6"
• Bed width: 2-5/16"
• Spindle speed: Variable, 100–3800 RPM
• Spindle bore: 0.39" (10mm)
• Spindle threads: M14-1.0
• Tailstock barrel diameter: 0.39" (10mm)
• Tailstock barrel travel: 7/8"
• Cross slide travel: 1-1/2"
• Carriage travel: 7-1/8"
• Footprint: 5-1/2" x 14"
• Overall dimensions: 16-1/4" W x 11-1/2" D x 11-1/2" H
• Approximate shipping weight: 36 lbs.

FEATURES:

• Variable-speed spindle
• 1/4" T-slot on cross slide for clamping tooling
• Chuck safety shield
• Small footprint
• Non-marring rubber feet
• Emergency stop button cuts power to motor and electrical controls

INCLUDES:

• 2" 3-Jaw chuck
• Tailstock dead center
• Cross-slide mounted tool holder
• Open-end wrench 5.5 x 7mm
• Phillips screwdriver #2
• Hex wrenches 3, 4, and 5mm
