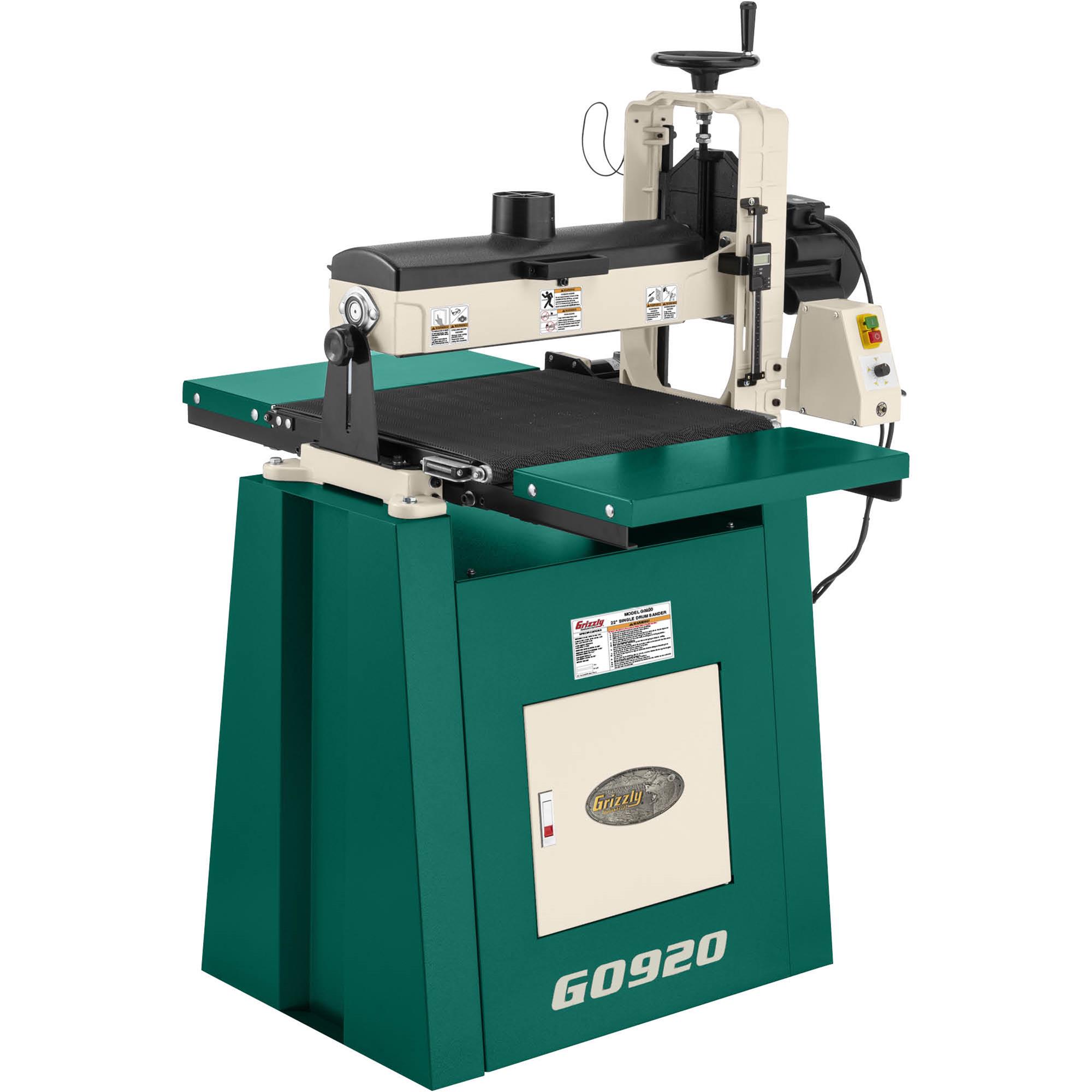

G0920 22" Open-Ended Drum Sander
Need to sand wide panels or that live edge slab on your project list?
The open frame design of the G0920 22" Open-Ended Drum Sander allows you to sand workpieces up to 42-1/2" wide. Simply sand one half, turn the piece around, and sand the other half.
The 2 HP motor supplies plenty of power to rotate the 5" computer-balanced aluminum sanding drum.
The sandpaper length needed is 3" wide by 127" long. For a full range of replacement paper for the G0920, shop here.
The variable-speed conveyor can be adjusted between 0–10 feet per minute.
The digital depth gauge offers a precise reading of the distance between the table and the sanding drum.
The spring-tensioned sandpaper fasteners make changing belts quick and simple.
You’ll get precision results and long-lasting durability thanks to the drum height handwheel, industrial-duty rubber conveyor belt, heavy-duty enclosed stand, and easy conveyor belt tracking.
Like all Grizzly drum sanders, the G0920 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects. (Consumables are not covered by the warranty.)
The G0920 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.
The complete and easy-to-read manual provides full instructions on how to assemble and maintain your sander.
The Grizzly Customer Service and Technical Support Teams are also U.S.-based.
Parts and accessories for the sander may be available online and shipped from the Grizzly parts warehouse in Springfield, MO.
SPECIFICATIONS:
- Drum motor: 2 HP, 230V, single-phase, 7.5A
- Feed motor: 50W, 1A
- Maximum stock thickness: 5"
- Minimum stock thickness: 1/4"
- Maximum sanding width: 42-1/2"
- Minimum sanding width: 2"
- Minimum board length: 9"
- Sandpaper: 3" x 127", plain-backed
- Sandpaper speed: 2300 FPM
- Conveyor feed rate: Variable, 0–10 FPM
- Drum size: 5"
- Dust port size: 4"
- Footprint 23-1/2" x 32-1/2"
- Overall dimensions 42-1/2" W x 43-1/2" D x 61" H
- Approximate shipping weight: 341 lbs.
FEATURES:
- Variable-speed conveyor
- Digital thickness readout
- Spring-loaded sanding belt tension/sandpaper
- 4" Dust port with hose hook
- Industrial-duty rubber conveyor belt
- Push button circuit breaker for easy reset
