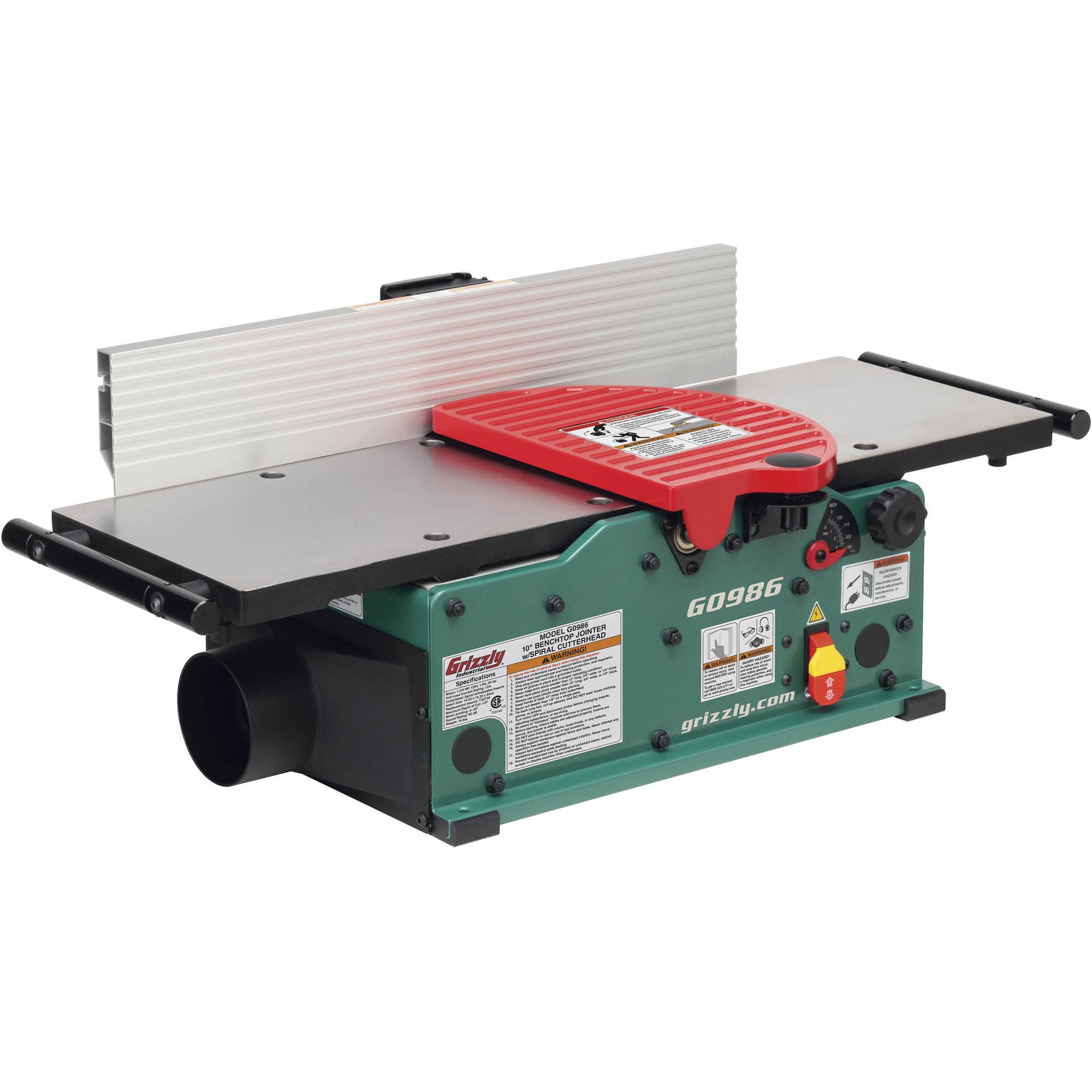

G0986 10" x 30" Benchtop Jointer with Spiral-Type Cutterhead

Extra-wide jointing capacity in a space-saving, heavy-duty machine.

Experience the convenience of portability with the capabilities of a full-sized jointer! With a large 10" capacity not found with other benchtop and entry-level jointers, you can face wide boards while preserving shop space.

The spiral-type cutterhead produces smooth, even workpiece surfaces with less tearout than other types.

Other benchtop jointers can't match the 54" table extension length – it reduces the chance of board flexing and increases cutting accuracy.

This wide-capacity jointer offers a 1-3/4 HP motor, with more power than any other benchtop to cut through dense hardwoods.

The solid cast-iron foundation keeps vibration down, so you can process boards with precise results.

Add this affordable jointer to your home workshop or small shop, and complete top quality edge jointing, tapering, beveling, and chamfering.

KEY FEATURES:

• Spiral-Type Cutterhead: This simple to maintain cutterhead lets you quickly replace inserts as needed to maintain sharpness.
• Built-in Table Extensions: Even with a small footprint, this jointer can handle boards up to 54" long when fully extended.
• 24" Fence: Offers 4" of additional length compared to most other benchtop jointers.
• Powerful 1-3/4 HP Motor: With the most robust motor you’ll encounter in a benchtop jointer, this model is a true workhorse.
• Cast-Iron Infeed and Outfeed Tables:The heavy-duty construction guarantees years of durability.

SPECIFICATIONS:

• Motor: 1-3/4 HP, single-phase, 12A
• Maximum width of cut: 10"
• Maximum depth of cut: 1/8"
• Minimum workpiece length: 12"
• Minimum stock thickness: 1/2"
• Number of cuts per minute: 66,000
• Cutterhead diameter: 2"
• Cutterhead type: Spiral
• Cutterhead speed: 11,000 RPM
• Table size: 10-1/4 " x 30-3/4"
• Fence size: 24" L x 7/8" W x 4-3/8" H
• Dust port size: 4"
• Footprint: 19 " x 13-1/2"
• Overall dimensions: 34" L x 21-1/2" W x 13" H
• Approx. shipping weight: 94 lbs.

INCLUDES:

• Two safety push blocks
• Torx T-25 T-handle driver
• Hex wrenches - 2.5, 4mm
• 4" to 2-1/2" Dust port adapter

Take your woodworking to the next level with the G0986 10" Benchtop Jointer!

Minimize your costs and maximize your woodworking output with this high-capacity jointer, and work like a pro on a beginner's budget!

The G0986 comes with a 1-year warranty which covers parts and assures the unit is free from factory defects.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department. Parts may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.

CSA certified

Made in an ISO 9001 factory
