Grizzly G0945 - 6" Benchtop Jointer

4.8 (63)
5
55
4
5
3
1
1
2
$345.00
  • Motor: 1-1/2 HP
  • Table size: 30 in. x 6-1/4 in.
  • Table type: Cast Aluminum
  • Table adjustment: Swing
  • Cutterhead type: Straight Knife
  • Cutterhead diameter: 1-7/8 in.
  • Max depth of cut: 1/8 in.
  • Fence size: 4-5/16 in. x 19-3/4 in.
  • Shipping weight: 44 lbs.
Add to Cart
Shipping

Accessories

Image for T32900 6-1/4" x 7/8" x 1/16" Jointer Knives for G0945, Set of 2 Item# T32900 $19.95 Add Image for T34246 36" x 24" Benchtop Machine Stand w/ Power Outlets Item# T34246 $239.00 Add Image for D2056 Tool Table Item# D2056 $99.95 Add Image for D3640 Tool Table Plus - Complete Item# D3640 $139.95 Add Image for W1400 Safety Push Block - Small Item# W1400 $5.95 Add
California Proposition 65 Warning
Overview Reviews Q & A Product Links
Overview

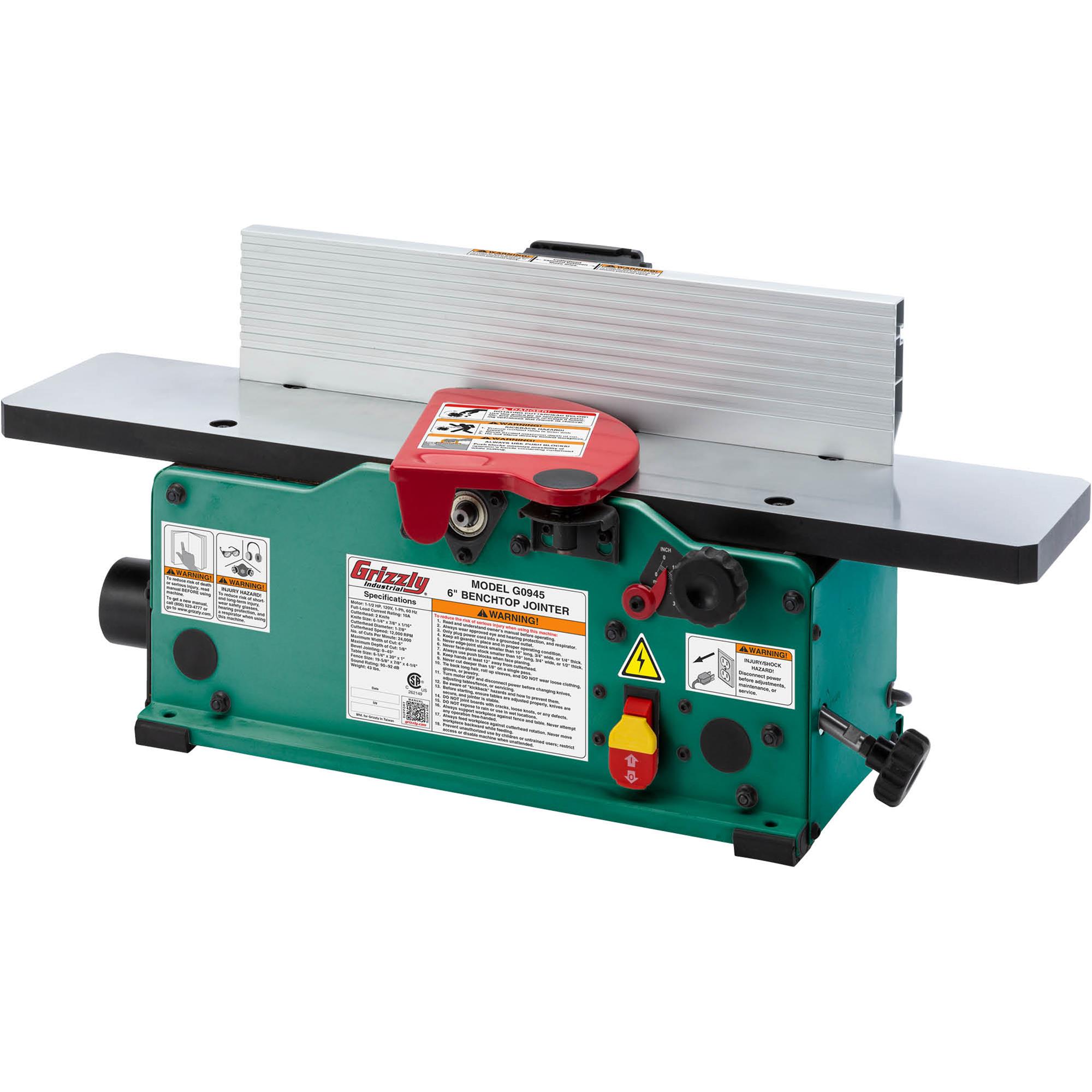

G0945 6" x 30" Benchtop Jointer

The best valued 6" benchtop jointer on the market.

The G0945 6" Benchtop Jointer has a compact size for convenient placement in any shop. It mounts and dismounts quickly to a workbench making it portable when necessary.

It is used to produce straight, flat edges on a workpiece, in order to properly square material for further layout, construction, and jointing.

The 1-7/8" diameter straight-knife cutterhead has two SK5 steel knives to produce a smooth jointing finish.

The fence is constructed from extruded aluminum, making for a truly portable benchtop jointer. Easily stow away when not in use and quickly set-up when ready to use.

The infeed and outfeed tables are constructed from cast aluminum. The depth-of-cut adjustment knob adjusts height of infeed table, controlling depth of cut. The infeed table height adjustment lock secures that height.

SPECIFICATIONS:

  • Motor: 1-1/2 HP, 120V, single-phase, 10A
  • Maximum width of cut: 6"
  • Maximum depth of cut: 1/8"
  • Minimum workpiece length: 10"
  • Minimum stock thickness: 1/2"
  • Number of cuts per minute: 22,000
  • Cutterhead diameter: 1-7/8"
  • Cutterhead type: 2-Row straight-knife
  • Cutterhead speed: 11,000 RPM
  • Knife type: SK5 steel, single-sided
  • Knife size: 6-1/4" L x 7/8" W x 1/16" T
  • Table size: 6-1/4" x 30"
  • Fence size: 19-3/4" L x 4-5/16" H
  • Dust port size: 2-1/2"
  • Footprint: 9-1/2" x 19-1/2"
  • Overall dimensions: 30" W x 17-1/2" D x 13" H
  • Approx. shipping weight: 44 lbs.

FEATURES:

  • Straight-knife cutterhead with two SK5 steel knives
  • Cast aluminum infeed and outfeed tables
  • Infeed table height adjustment lock
  • Built-in dust collection system with 2-1/2" dust port
  • Two push blocks included

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0945 comes with a 1-year warranty.

Made in an ISO 9001 factory
