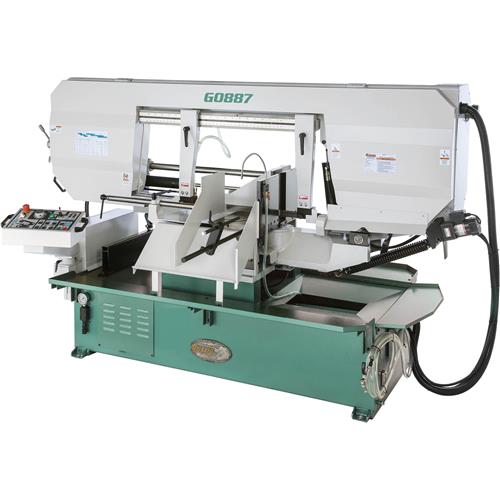

Grizzly G0887 - 20" x 26" 5 HP Industrial Horizontal Mitering Metal Cutting Bandsaw

No Reviews
$26,249.00
  • Motor: 5 HP
  • Cutting capacity - rectangular: 20 in.
  • Cutting capacity - round: 20 in.
  • Blade speeds: 106 - 315 FPM
  • Blade length: 232 in.
  • Head type: Swivel
  • Footprint: 77 in. x 36 in.
  • Overall height: 70 in.
  • Shipping weight: 3960 lbs.

Select Product Group

4" - 5" 6" - 7" 9" - 10" 12" - 13" 20"

Hover to View 20" Models

Image for G0887
$26,249.00
In Stock
Add to Cart
Shipping

Accessories

Image for T30691 232" x 1-1/2" x 0.051 x 3-4 TPI VP Premium Bi-Metal Bandsaw Blade Item# T30691 $180.00 Add Image for G7978 Rotary Phase Converter - 15 HP Item# G7978 $3,179.00 Add Image for T30692 232" x 1-1/2" x 0.051 x 4-6 TPI VP Premium Bi-Metal Bandsaw Blade Item# T30692 $180.00 Add Image for T30690 232" x 1-1/2" x 0.051 x 2-3 TPI VP Premium Bi-Metal Bandsaw Blade Item# T30690 $135.48 Add Image for T30693 232" x 1-1/2" x 0.051 x 5-8 TPI VP Premium Bi-Metal Bandsaw Blade Item# T30693 $180.00 Add
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Product Links
Overview

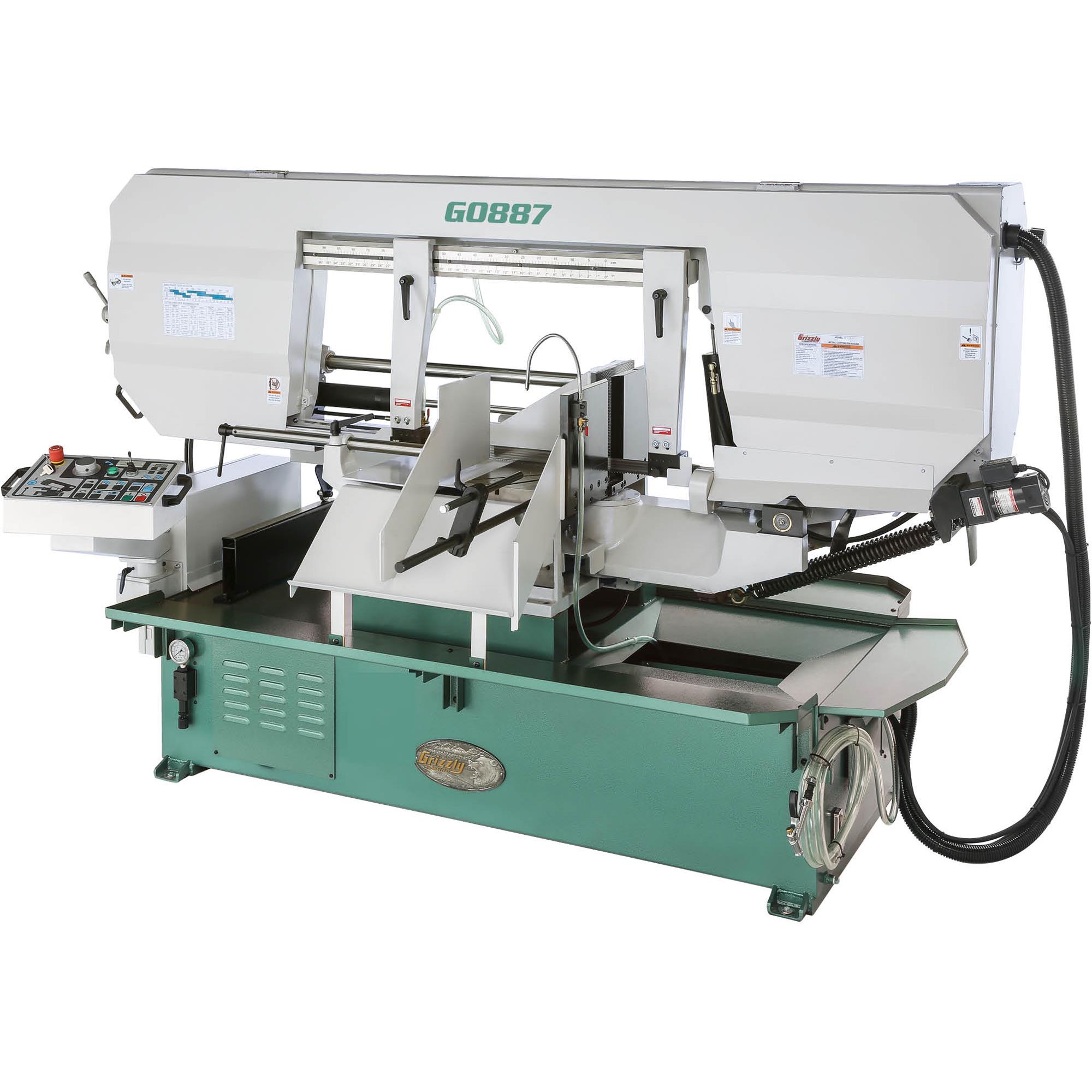

G0887 20" x 26" 5 HP Mitering Industrial Metal-Cutting Bandsaw

A dual-mitering metal-cutting bandsaw for all-day use in production shops and industrial facilities.

The G0887 Metal-Cutting Bandsaw minimizes material size constraints with its massive 20" x 26" cutting capacity.

This fully hydraulic operated bandsaw features a powerful 5 HP, 3-phase motor with variable-speed adjustment from 106–315 FPM.

The G0887 truly is industrial-duty with its 232" blade and the ability to cut miters from -60° to +60°.

The sliding vise and hydraulically-controlled angle adjustment features allow you to load the largest of material and make cuts without the need of rotating or removing the workpiece from the machine.

The blade tension gauge, 10-gallon coolant system, and a programmable height stop are just some of the outstanding convenience features of this saw.

For a full range of replacement blades for the G0887, shop here.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Main Motor: 5HP, 220V, 3-phase, 15.2A
  • Hydraulic Pump Motor: 2 HP, 220V, 3-phase, 5.7A
  • Table motor: 1 HP, 220V, 3-phase, 3.3A
  • Coolant Pump: 1/8 HP, 220V, 3-phase, 0.3A
  • Blade brush motor: 60W, 220V, 3-phase, 0.4A
  • Blade size: 232" x 1-5/8"
  • Blade speed: 106–315 FPM
  • Cutting capacities:
    • 90° Round: 20"
    • 90° Rectangular: 20" x 25-7/8"
    • ±45° Round: Round: 20"
    • ±45° Round: Rectangular: 20" x 20"
    • ±60° Round: 14-7/8"
    • ±60° Rectangular 14" x 14"
  • Overall dimensions: 119" W x 63" D x 70" H
  • Approximate shipping weight: 3960 lbs.

FEATURES:

  • Dual swivel cutting miters up to 60°
  • One-piece stand with swivel control box for convenient operation
  • High-efficiency gear drive system provides quick speed changes
  • Hydraulic cylinder and buffer spring enhance cutting stability
  • Electric shut off system and alarm for the ultimate in safety
  • Cleaning hose and nozzle and easy access chip tray for smooth clean ups
  • Self-propelled blade brush extends life of blade

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0887 comes with a 1-year warranty.
