Item: G0561 | Model: G0561
Image for G0561
2 Product Videos

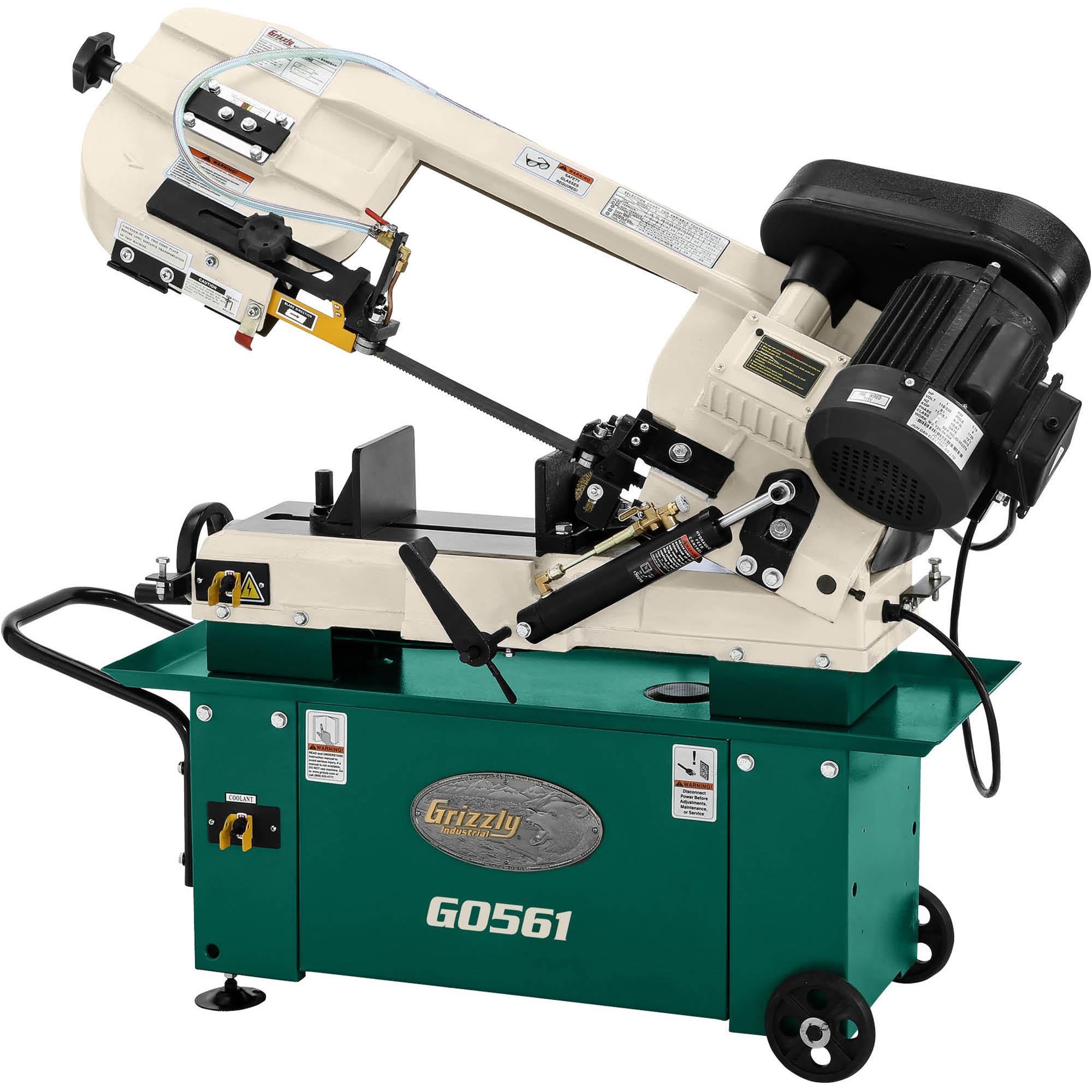

Grizzly G0561 - 7" x 12" 1 HP Horizontal Metal Cutting Bandsaw

4.6 (95)
5
72
4
14
3
6
2
1
1
2
$1,595.00
  • Motor: 1 HP
  • Cutting capacity - rectangular: 7 in.
  • Cutting capacity - round: 7 in.
  • Blade speeds: 90, 135, 195, 255 FPM
  • Blade length: 93 in.
  • Head type: FIXED
  • Footprint: 38 in. x 13 in.
  • Overall height: 40 in.
  • Shipping weight: 343 lbs.
Add to Cart
Shipping

Accessories

Image for G5129 93" x 3/4" x .035" x 6-10 TPI VP Bi-Metal Bandsaw Blade Item# G5129 $55.95 Add Image for H9240 Rustlick WS5050 Heavy-duty Soluble Oil, 1 Gallon Item# H9240 $99.95 Add Image for T30671 Heavy-Duty V-Roller Stand Item# T30671 $129.95 Add Image for G5131 93" x 3/4" x .035" x 10-14 TPI VP Bi-Metal Bandsaw Blade Item# G5131 $55.95 Add Image for T30673 Heavy Duty Roller Stand Item# T30673 $124.95 Add
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Product Links
Overview

G0561 7" x 12" 1 HP Metal-Cutting Bandsaw

Its mobility is perfect for moving around the shop or between jobsites.

The G0561 7" x 12" 1 HP Metal-Cutting Bandsaw was designed to cut 7" round and 7" X 12" rectangular metal stock. It can cut in either horizontal or vertical positions.

The 93" x 3/4" blade rotates at one of the four blade speeds (90, 135, 195, and 255 FPM). Blade speed adjustments are as easy as moving the location of the V-belt on the motor and wheel pulleys.

The feed rate and feed pressure are also adjustable. For optimal cutting and blade life, you will want to watch the chips that exit the cut and increase or decrease the feed rate according to chip characteristics.

The coolant system helps provide optimum working results and extended longevity of blades. A chip screen is designed to prevent chips and cutoffs from entering the coolant tank.

The quick-release clamping vise securely holds your work piece and adjusts for cuts between 0° and 45°.

For a full range of replacement blades for the G0561, shop here.

Made in an ISO 9001 factory

SPECIFICATIONS:

  • Motor: 1 HP, 115V/230V (prewired 115V), single-phase, 12A/6A
  • Blade size: 93" x 3/4"
  • Blade speed: 90, 135, 195, 255 FPM
  • Cutting capacities:
    • 90° Round: 7"
    • 90° Rectangular: 7" x 12"
    • 45° Round: 5"
    • 45° Rectangular: 4-3/4" x 4-1/2"
  • Table size: 6-3/4" W x 20-1/2" D
  • Floor to table height: 21"
  • Coolant capacity: 2-1/2 gal.
  • Head type: Fixed
  • Footprint: 38" x 13"
  • Overall dimensions: 48" W x 16" D x 40" H
  • Approximate shipping weight: 343 lbs.

FEATURES:

  • Automatic shut-off
  • Hydraulic feed control
  • Quick-release vise
  • Coolant system
  • Wheels for portability
  • Includes 93" x 3/4" x 6 TPI blade

*This machine is prewired for 115V operation. 230V operation requires purchase and installation of conversion kit P0561300V4-6X.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0651 comes with a 1-year warranty.
