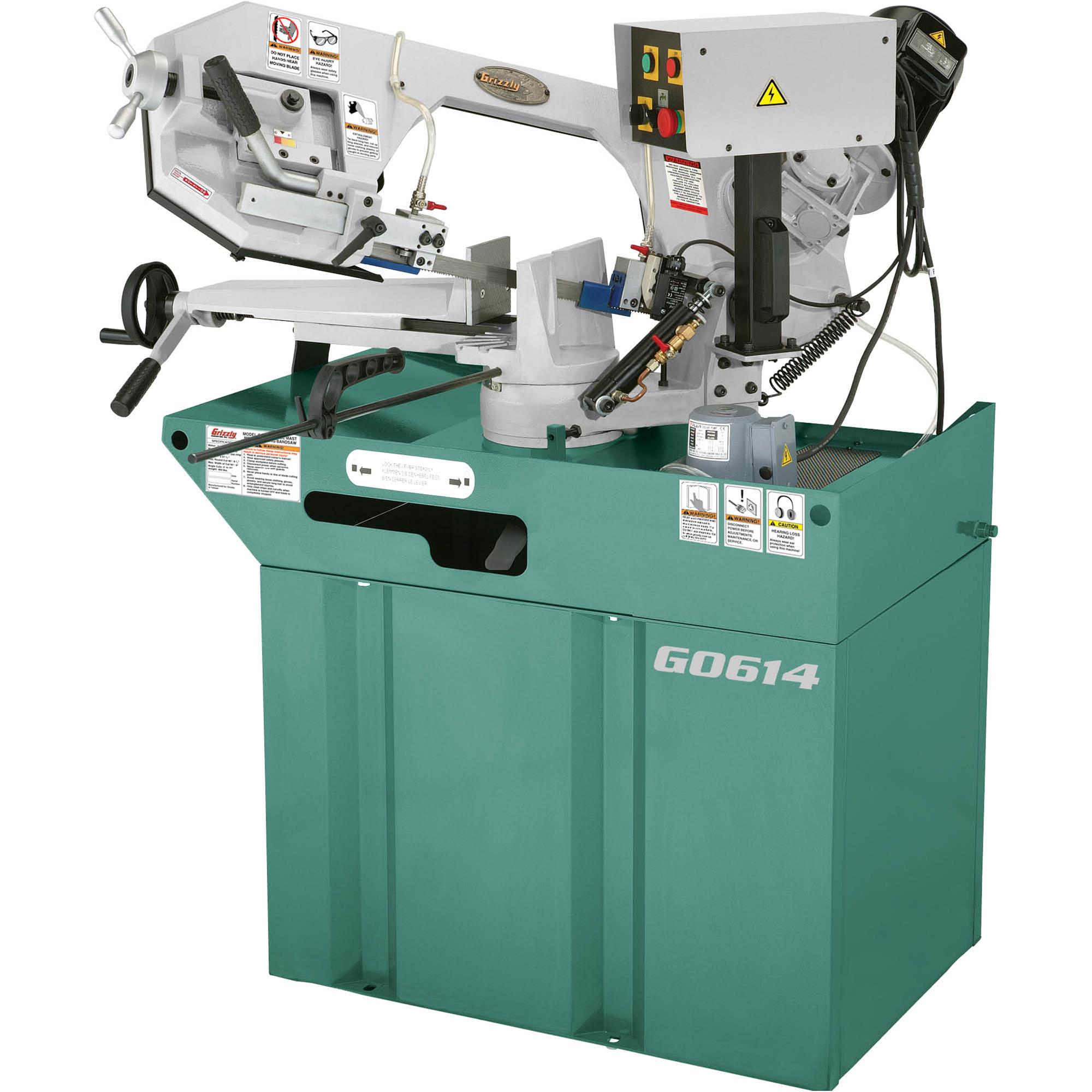

G0614 6" x 9-1/2" 1-1/2 HP Swivel Metal-Cutting Bandsaw

Need more capacity in a swiveling metal-cutting bandsaw?

Check out the range of cuts you can get with the 0° to 60° locking turret of the well-engineered G0614 6" x 9-1/2" 1-1/2 HP Swivel Metal-Cutting Bandsaw.

Lever controlled blade guide locks allow adjustments right up to the work piece for optimum support and the blade guides have fully adjustable ball bearings so you know you're going to get straight cuts.

The two-speed, 1-1/2 HP motor can change speeds from 1725 to 3450 RPM, giving the 97-5/8" x 1" blade two cutting speeds of 170 and 341 feet per minute.

The quick-release vise and stock length stop allow for a quick transition to get on with the next cut.

The splash tray reduces cutting fluid loss at the end of a workpiece when cutting at 60°.

Additional features that allow you to get the most saw for your money include the infinitely adjustable hydraulic down feed and the coolant system.

The T30373 Mounting Kit is a quick and easy way to mount the T30399 Infeed/Outfeed Roller Set onto your G0614 Metal Bandsaw.

For a full range of replacement blades for the G0614, shop here.

SPECIFICATIONS:

• Motor: 1-1/2 HP, 220V, 3-phase, 3.6/5A
• Pump motor: 1/8 HP, 0.9A
• Blade size: 97-5/8" x 1"
• Blade speeds: 170, 341 FPM
• Cutting capacities:
  • 90° Round 8-3/4"
  • 90° Rectangular 6" x 9-1/2"
  • 45° Round 5"
  • 45° Rectangular 5" x 5"
  • 60° Round 2-3/4"
  • 60° Rectangular 2-3/4" x 2-3/4"
• Miter cutting capacity: 0°–60°
• Vise jaw height: 5"
• Vise depth: 11"
• Table size: 23-1/2" W x 40-1/2" W
• Floor to table height 35-5/8"
• Overall dimensions: 63" W x 29-3/4" D x 66" H
• Approximate shipping weight: 548 lbs.

FEATURES:

• Swivel base with degree scale
• Centralized control panel
• Heavy-duty all steel, one piece base
• Adjustable hydraulic downfeed (just dial your feed rate)
• Switch selectable speed control
• Extra deep throated vise with lever lock
• Quick-release vise
• 0° to 60° swivel
• Built-in coolant system
• Automatic shut-off
• Adjustable ball bearing and carbide blade guide system
• Blade wheels have heavy-duty ball bearings

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0614 comes with a 1-year warranty.
