- Motor: 1 HP
- Cutting capacity - rectangular: 7 in.
- Cutting capacity - round: 7 in.
- Blade speeds: 90, 135, 195, 255 FPM
- Blade length: 93 in.
- Head type: FIXED
- Footprint: 38 in. x 13 in.
- Overall height: 40 in.
- Shipping weight: 339 lbs.
Hover to View 6" - 7" Models
Accessories

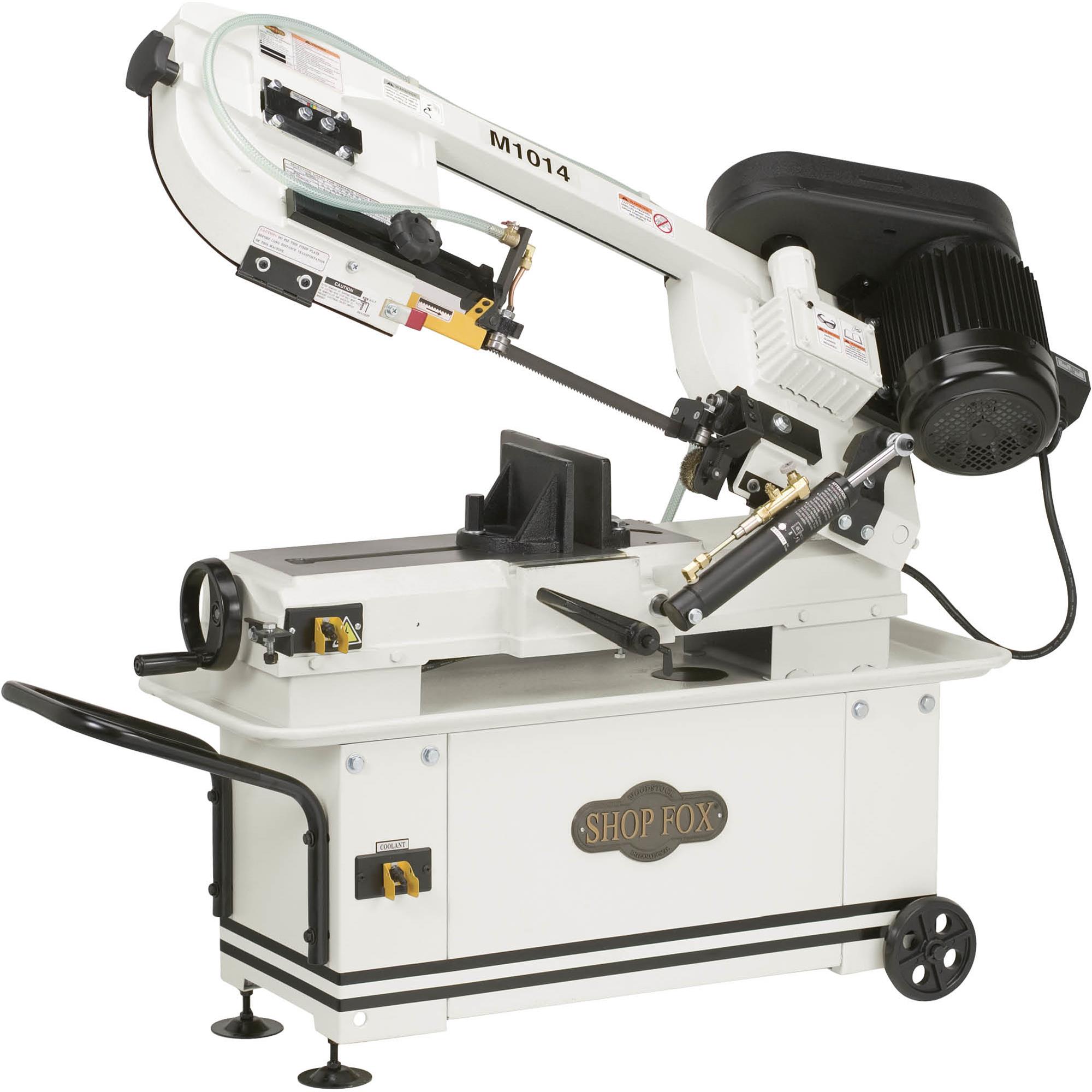

M1014 Shop Fox 7" x 12" 1 HP Metal-Cutting Bandsaw
A great metal-cutting bandsaw for production shops.
The M1014 7" x 12" Metal-Cutting Bandsaw handles large jobs with ease.
Features angle cutting to 45°, four blade speeds, internal coolant system, quick-setting vise, hydraulic downfeed control and automatic shut-off.
Wheels and a handle add mobility for even greater convenience.
The M1014 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual provides full instructions on how to assemble and maintain your metal-cutting bandsaw.
Parts for the bandsaw may be available online and shipped from the parts warehouse in Springfield, MO.
Made in an ISO 9001 factory
SPECIFICATIONS:
- Motor: 1 HP, 110V/220V (prewired 110V), single-phase, 12A/6A
- Blade size: 93" x 3/4"
- Blade speeds: 90, 135, 195, 255 FPM
- Cutting capacities:
- 90° Round: 7"
- 90° Rectangular: 7" x 12"
- 30° Round: 7"
- 30° Rectangular: 7-3/4" x 8"
- 45° Round: 5"
- 45° Rectangular: 4-1/2" x 4-3/4"
- Vise jaw height: 4"
- Vise depth: 9-3/4"
- Table Size: 6-3/4" x 20-1/2"
- Floor to table height: 21"
- Coolant capacity: 2-1/2 gallons
- Footprint: 38" x 13"
- Overall size: 48" W x 16" D x 40" H
- Approximate shipping weight: 339 lbs.
FEATURES:
- Two-year warranty!!
- Automatic shut-off
- Hydraulic feed control
- Quick-positioning vise
- Built-in coolant system
- Chip tray
- Includes blade and vertical saw table
- Hydraulic ram assist (adjustable hydraulic downed assist)
