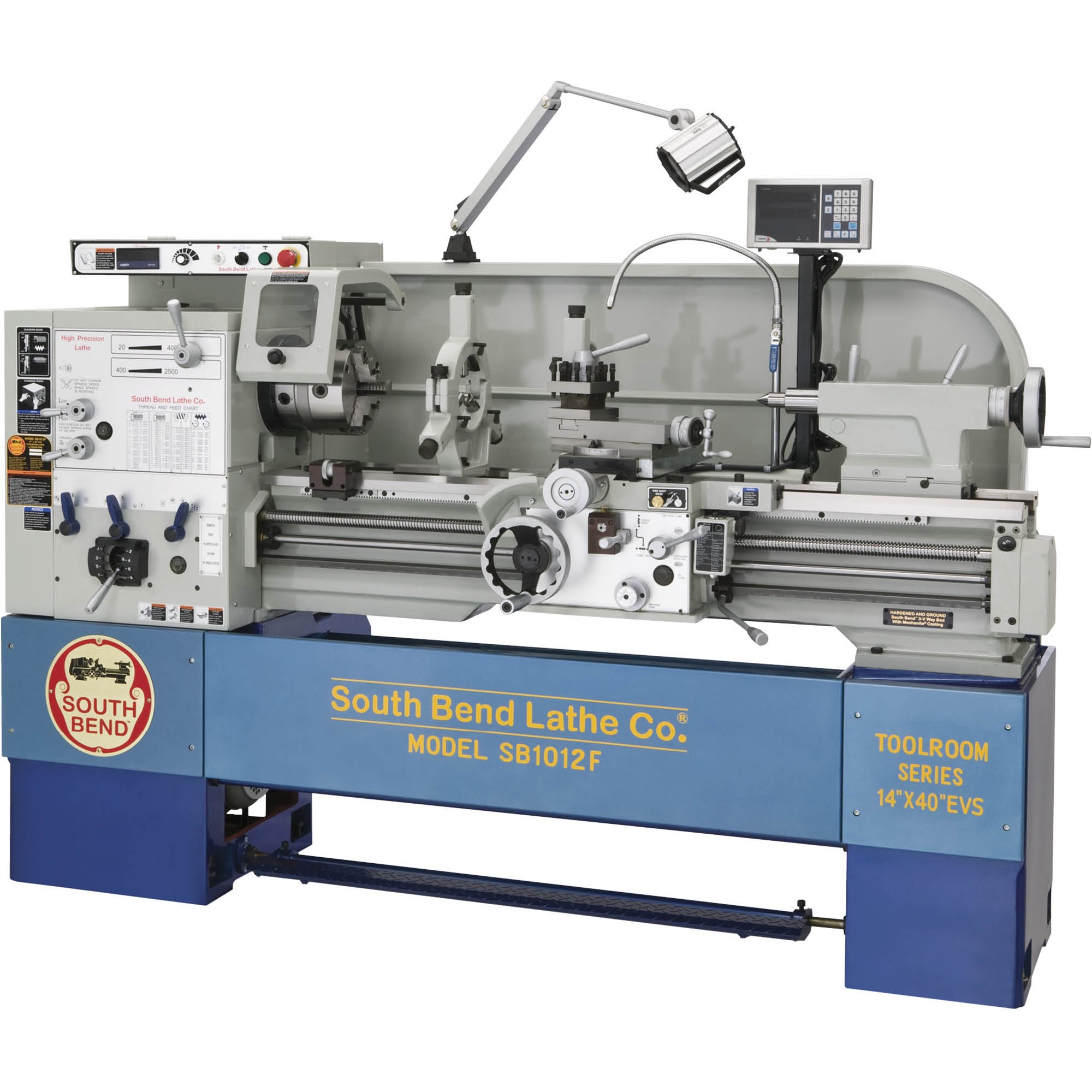

SB1012F 14" x 40" EVS Toolroom Lathe

For when Electronic Variable-Speed (EVS) is the minimum requirement of your toolroom.

Loaded with all the essential features and high-precision parts, the SB1012F 14" x 40" EVS Toolroom Lathe excels at making dies, fine tools, jigs and fixtures.

Featuring EVS (Electronic Variable-Speed) spindle control, which allows the operator to quickly set the exact spindle speed within the available range of 20–2500 RPM.

A Fagor DRO conveniently reads the position of the apron or cross slide movement.

The bed of the SB1012F is constructed with Meehanite® castings that have been induction-hardened and ground in the traditional 3-V prismatic design.

The SB1012F manual was written by our U.S.-based Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your lathe.

The South Bend Technical Support team is U.S.-based.

SPECIFICATIONS

• Required power source: 220V, 3-phase, min. 20A circuit
• Spindle motor: 5 HP, 220V
• Oil pump motor: 1/4 HP
• Coolant Pump Motor: 1/8 HP
• Swing over bed: 14.17"
• Swing over gap: 20.98"
• Swing over cross slide: 8.38"
• Cross slide travel: 9.25"
• Compound travel 5.10"
• Distance between centers: 40.00"
• Spindle bore: 2.0625"
• Spindle speeds: Variable, 20–2500 RPM
• Spindle taper: MT#6
• Tailstock taper: MT#4
• Tailstock quill travel: 6.00"
• Inch threads: (45) 2 to 72 TPI
• Metric threads: (39) 0.20 to 14.00mm
• Modular pitches: (18) 0.30 to 3.5 MP
• Diametral pitches: (21) 8 to 44.00 DP
• Longitudinal range: (17) 0.002 to 0.067 IPR
• Cross range: (17) 0.001 to 0.034 IPR
• Overall dimensions: 91-1/2" W x 39-1/2" D x 59" H
• Approximate shipping weight: 2984 pounds

FEATURES:

• 2-year limited warranty
• Fagor 2-axis DRO
• Meehanite® casting
• Allen-Bradley® controls
• Safety chuck guard w/ micro-switch shut-off
• Complete recycling coolant system
• Micrometer carriage stop
• Japanese spindle bearings
• 8" 3 jaw scroll chuck w/ D1-6 plate
• 10" 4 jaw ind. chuck D1-6
• 12" faceplate

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.

Note: If you intend to run this machine on a phase converter, it must be a “digi series” or equivalent style converter to protect the machines EVS. These are not available through Grizzly.
