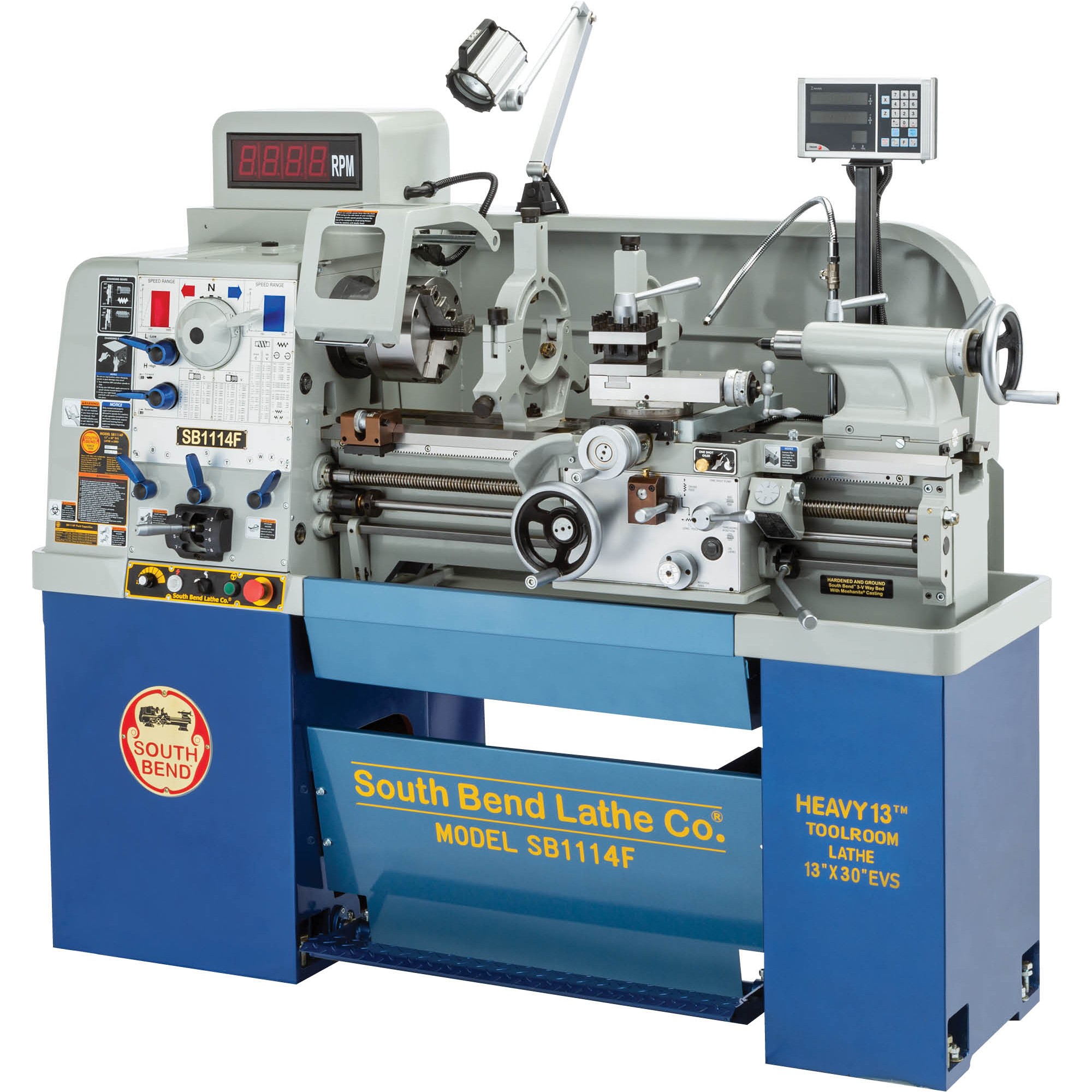

SB1114F 13" x 30" EVS Lathe with Fagor DRO

Extraordinarily engineered from the ground up in the truest South Bend fashion.

The SB1114F Heavy 13® Gearhead Lathe is driven by a 5 HP motor with electronic variable speed to control spindle speeds between 100–3000 RPM.

A factory-installed Fagor two-axis digital readout displays the positioning of the carriage and cross slide.

The bed of the lathe is constructed with Meehanite® castings that are hardened and precision-ground in the traditional three V-way prismatic design.

Quality Allen-Bradley® electrical components and attention to detail provide dependable electrical control of the powered movements.

The lathe is equipped with a foot brake to quickly stop the spindle instead of allowing it to coast to a stop on its own. Pushing the foot brake while the spindle is on also cuts power to the motor and stops the spindle.

The complete and easy-to-read SB1114F manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Parts for the lathe may be available online and shipped from the South Bend parts warehouse in Springfield, MO.

SPECIFICATIONS:

• Required power source: 220V, single-phase, min. 30A circuit
• Spindle motor: 5 HP, 220V
• Coolant pump motor: 1/8 HP, 0.4A
• Oil pump motor: 1/4 HP, 1.3A
• Distance between centers: 30"
• Swing over bed: 13-1/4"
• Swing over cross slide: 8-1/6"
• Swing over saddle: 13"
• Maximum tool bit size: 5/8"
• Compound travel: 3-3/4"
• Carriage travel: 25-9/16"
• Cross slide travel: 7"
• Spindle taper: MT #5
• Spindle speed: Variable, 100–3000 RPM
• Tailstock taper: MT #3
• Tailstock travel: 4-1/2"
• Overall dimensions: 71" W x 38" D x 60-1/2" H
• Approximate shipping weight: 2596 lbs.

FEATURES:

• 2-year limited warranty
• Variable frequency drive (VFD) for smooth, high-torque variable speed using single-phase power
• Meehanite® castings
• Allen-Bradley® controls
• Complete recycling coolant system
• Micrometer carriage stop
• Threading dial indicator
• Enclosed universal gearbox for cutting inch, metric, modular, and diametral pitches

INCLUDES:

• 8" 4-jaw independent chuck D1-5
• 7" 3-jaw scroll chuck mounted to D1-5 plate
• 10" faceplate D1-5
• Follow rest
• Steady rest with roller bearing tips
• Two morse taper #3 dead centers

Due to product size, this item must be delivered to a loading dock or unloaded with a forklift. Liftgate not available.
