Item: G0513Z | Model: G0513Z
Image for G0513Z

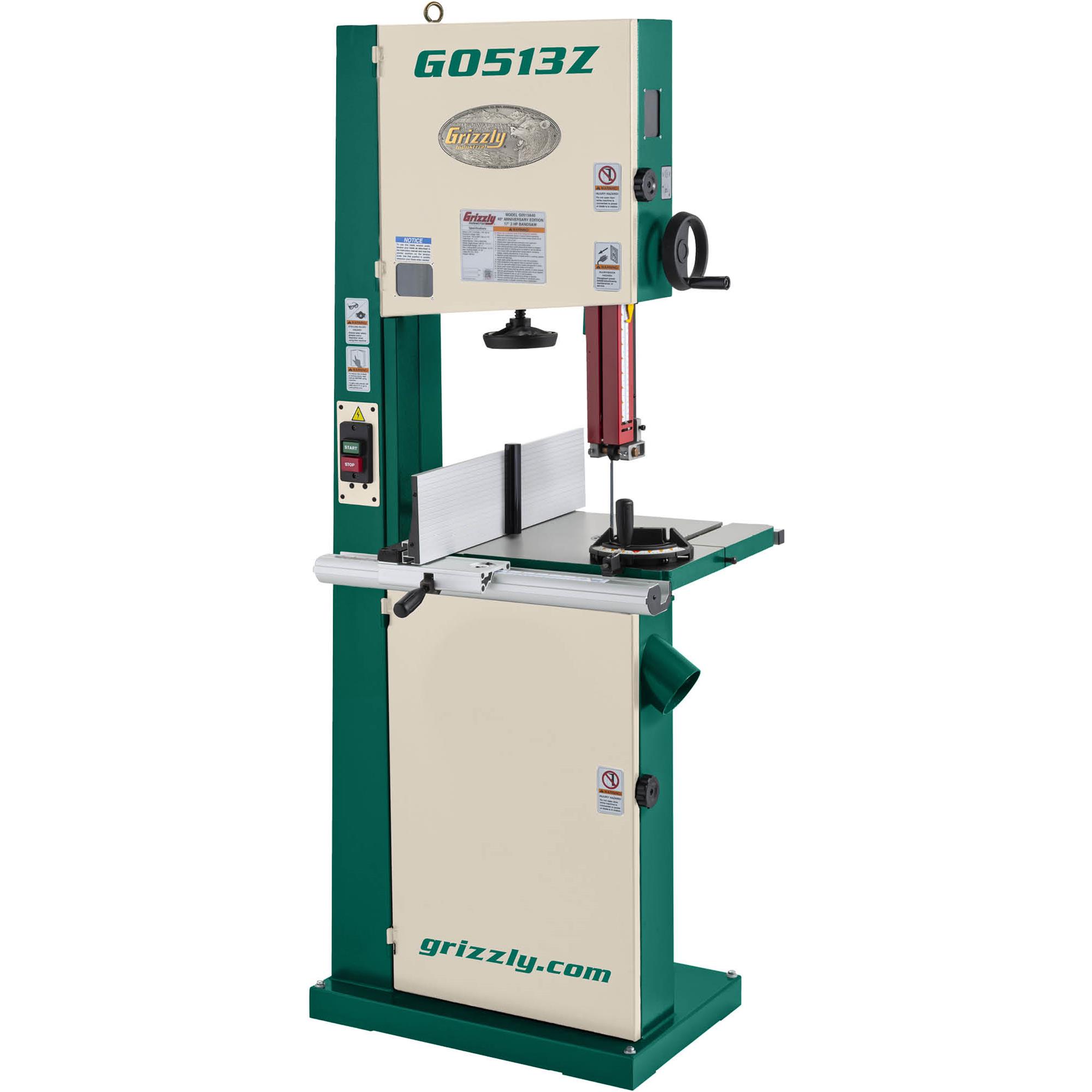

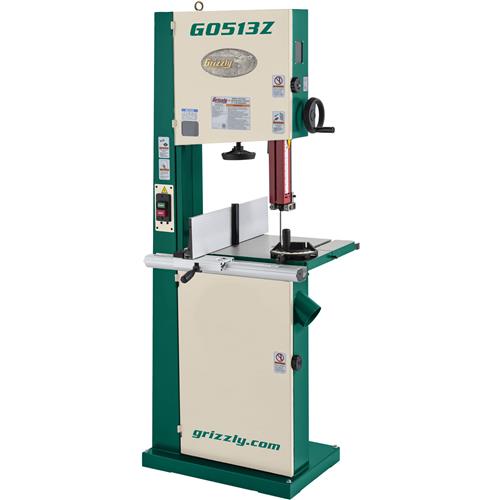

Grizzly G0513Z - 17" 2 HP Bandsaw w/ Resaw Fence & Bar

4.0 (3)
5
2
2
1
$1,359.00
  • Motor: 2 HP
  • Max cutting width: 16-1/8 in.
  • Max cutting height: 12-1/8 in.
  • Table size: 17 in. x 17 in.
  • Wheel type: Computer-Balanced Cast Aluminum
  • Blade size: 131-1/2 in.
  • Quick blade change: Yes
  • Overall height: 73 in.
  • Shipping weight: 364 lbs.
Add to Cart
Shipping

Accessories

Image for H7585 Resaw Fence Attachment For G0513 Item# H7585 $110.95 Add Image for T28000 Bear Crawl Heavy-Duty Mobile Base Item# T28000 $120.95 Add Image for T33164 131-1/2" Gold Carbide Bandsaw Blades, 3 Pack Item# T33164 $103.95 Add Image for H8193 Optional Heavy-Duty Cast-Iron Trunnion for G0513, G0513X & G0514X Item# H8193 $165.00 Add Image for T34391 Bandsaw Dust Deflector Item# T34391 $15.75 Add
California Proposition 65 Warning
Overview Reviews Q & A Product Links
Overview

G0513Z 17" 2 HP Bandsaw with Resaw Bar

Streamline your wood-cutting with this precision bandsaw offering exceptional resaw control.

Featuring a two-position resaw fence and an adjustable resaw bar, the G0513Z lets you “steer” workpieces through the blade while maintaining support from the fence. This gives you outstanding control and accuracy when resawing or making thick cuts—perfect for creating veneers, making thin stock for inlays, or cutting book-matched panels.

The 2 HP motor powers through the thickest of cuts, and the 16-1/8" throat offers and plenty of room to position your workpiece. This machine comes with a 1/2" - 6TPI Raker blade installed.

The precision-ground cast-iron table with geared micro-adjustable tilt lets you dial in the exact bevel you need with absolute precision.

The G0513Z is the perfect saw for small to medium size shops and serious hobbyists looking to up their woodworking game.

Key Features:

  • Two-Position Resaw Fence: Lets you quickly switch from cutting thick stock and resawing applications to cutting thin and narrow workpieces.
  • Resaw Bar: Allows you to “steer” your workpiece while maintaining support from the fence, helping you stay on your line and prevent blade wander.
  • Precision-Ground Cast-Iron Table: Provides absolute flatness and stability for reliable accuracy.
  • Geared Micro-Adjustable Table Tilt: Lets you easily set any bevel with total precision.
  • Heavy-Duty Miter Gauge: Cut accurate miters and compound angles with the included miter gauge, designed for precision and long-lasting durability.
  • Quick-Release Blade Tension Lever: Allows you to instantly release the blade tension for faster blade changes.
  • Blade-Tracking Window: Provides a view of the blade on the wheel when making tracking adjustments.
  • Euro-Style Roller Disc Guides: The professionals’ choice—these guides offer increased blade stability, due to greater contact between the guides and the blade.

    Specifications:

  • Motor: 2 HP, 110V/220V (prewired 220V), single-phase, 20A/10A
  • Throat (max. width left of blade): 16-1/8"
  • Resaw height: 12-1/8"
  • Blade size: 131-1/2" (1/8" - 1" wide)
  • Blade speeds: 1700, 3500 FPM
  • Blade guides: "Euro-style" roller disc
  • Fence size: 6" H x 23" L
  • Table size: 17" x 17" x 1-1/2"
  • Table tilt: 10° left, 45° right
  • Floor to table height: 37-1/2"
  • Footprint: 27" W x 18" D
  • Overall dimensions: 32" W x 32" D x 73" H
  • Approx. shipping weight: 364 lbs.

    Order the G0513Z and upgrade your woodworking today!

    The G0513Z manual was written by our U.S.-based Technical Documentation Department. Parts for your machine may be available online and are shipped from the Grizzly parts warehouse in Springfield, MO.

    Need help? We offer U.S.-based customer service and technical support to help keep your equipment running in top condition.

    The G0513Z comes with a 1-year warranty. Made in an ISO 9001 factory.

    Note: The G0513Z does not come with a plug. The recommended plug type is L5-30 for 110V or 6-15 for 220V.
