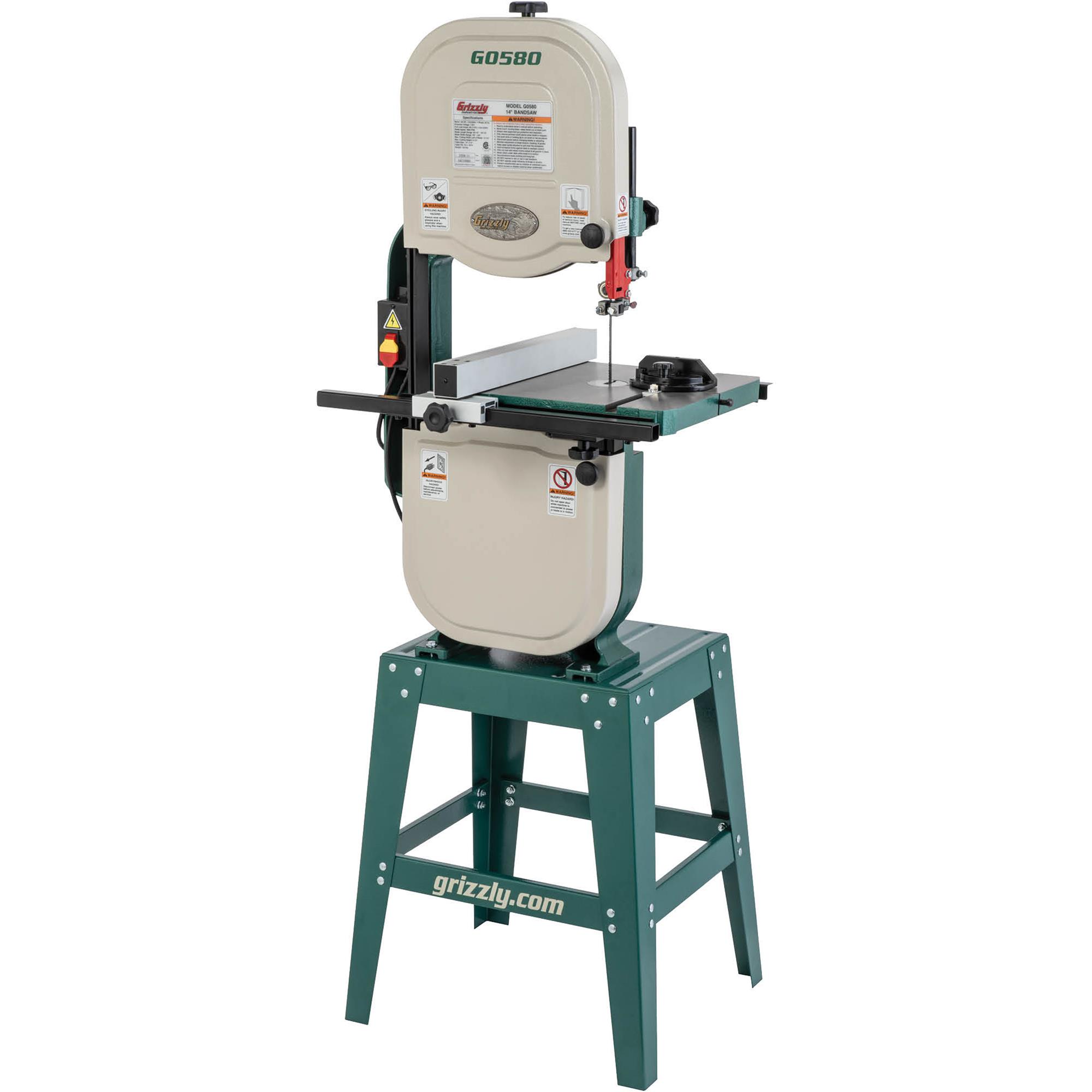

G0580 14" 3/4 HP Bandsaw

Robust performance and quality construction in a lightweight, affordable design.

The G0580 14" Bandsaw offers a blend of durability, portability, and performance, making it a reliable tool for any woodworker. Its sturdy construction and user-friendly features ensure accurate and efficient cutting for a wide range of projects.

FEATURES and BENEFITS:

• Durable Cast-Iron Construction: The solid cast-iron frame and precision-ground table provide stability and accuracy, ensuring consistent performance over time.
• Lightweight Versatility: The open-frame steel stand balances durability with portability, allowing for easy movement around the shop or transportation to jobsites.
• Precision Cutting: Achieve accurate cuts with the included extruded-aluminum fence and miter gauge. The upper and lower guide blocks and thrust bearings enhance blade stability and control.
• Enhanced Dust Collection: The 4" dust port allows for efficient dust removal, maintaining a cleaner and safer work environment.
• Ample Cutting Capacity: With a 13-1/2" throat and 6-1/4" maximum cutting height (expandable to 12" with an optional H7316 riser block), the G0580 handles various project sizes.
• Balanced Blade Wheels: Computer-balanced cast aluminum wheels with rubber tires reduce vibration for smoother operation.

Prewired for 115V, the G0580 can plug into a standard 115V wall receptacle with the included 5-15 plug or can be converted to operate on a 230V power supply. If you prefer 230V, refer to the voltage conversion instructions in the manual. You will need to provide your own 6-15 plug.

This bandsaw comes with a 3/8" 6 TPI hook blade. For a full range replacement blades for the G0580, shop here.

SPECIFICATIONS:

• Required power source: 115V or 230V, single-phase, min. 15A circuit
• Motor: 3/4 HP, 115V/230V (prewired 115V), single-phase, 9A/4.5A
• Throat (max. width left of blade): 13-1/2"
• Resaw capacity: 6-1/4" (12" with optional riser block)
• Table size: 14" x 14"
• Table tilt: 15° Left, 45° Right
• Floor to table height: 43-7/8"
• Blade size: 92-1/2" to 93-1/2" (1/8" to 3/4" wide)
• Blade speed: 3,000 FPM
• Dust port: 4"
• Footprint: 24" x 22"
• Overall dimensions: 26" W x 27" D x 67-1/4" H
• Approximate shipping weight: 176 lbs.

Grizzly owner's manuals and instruction sheets are produced by our U.S.-based Technical Documentation Department and are packed with useful information.

Need help? We offer U.S.-based customer service and technical support to get your questions answered and help keep your equipment running in top condition. And to ensure your satisfaction, the G0580 comes with a 1-year warranty.

Made in an ISO 9001 factory

CSA certified
