- Motor: 2 HP
- Max cutting width: 18-1/4 in.
- Max cutting height: 12 in.
- Table size: 19 in. x 26-3/4 in.
- Wheel type: Computer-Balanced Cast Iron
- Blade size: 143 in.
- Quick blade change: Yes
- Overall height: 76 in.
- Shipping weight: 435 lbs.
Hover to View 19" Models
Accessories

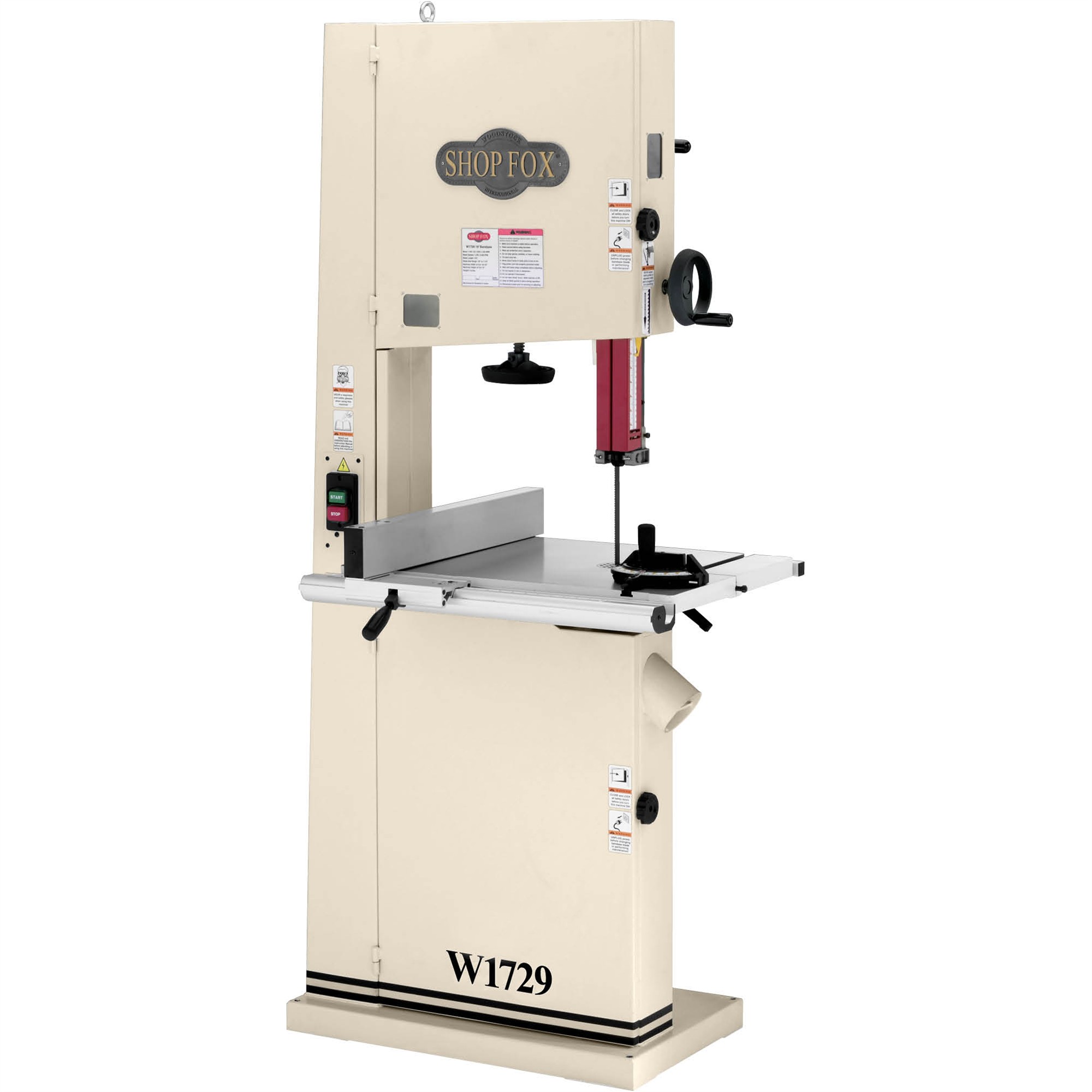

Shop Fox W1729 19" 2 HP Bandsaw
Conquer large woodworking projects.
The Shop Fox W1729 is a powerful and versatile bandsaw designed for tackling big woodworking jobs. Its robust 2 HP motor effortlessly cuts through hardwoods, with a maximum resaw height of 12" and a generous 18-1/4" cutting capacity.
Effortless Resawing: Two variable speeds (1700 & 3500 FPM) optimize cutting for different materials, while the rack-and-pinion upper guide ensures precise blade control for clean cuts.
Superior Control and Accuracy: A deluxe extruded aluminum fence with a scale and magnifying window provides exceptional precision for intricate cuts.
Built to Last: Computer-balanced cast iron wheels, micro-adjusting table tilt, and Euro-style blade guides guarantee smooth operation and extended blade life.
Durable Construction: The heavy-duty construction, including a cast-iron table and pre-formed steel wheel covers, ensures long-lasting performance.
For a full range replacement and resaw blades for the W1729, shop here.
The W1729 manual was written by the U.S- based Woodstock Technical Documentation Department and is packed with useful information. The complete and easy-to-read manual makes it easier to assemble and maintain your saw.
Made in an ISO 9001 factory
CSA certified
SPECIFICATIONS:
- Motor: 2 HP, 115V/230V (prewired 230V), single-phase, 20A/10A
- Throat (max. width left of blade): 18-1/4"
- Resaw capacity: 12"
- Blade length: 143" long
- Blade width range: 1/8" - 1"
- Blade speeds: 1700, 3500 FPM
- Table size: 26-3/4" x 19" x 1-1/2" thick
- Table tilt: 45° right, 5° left
- Floor to table height: 37-1/2"
- Footprint: 29-1/2" W x 17-3/4"
- Overall size: 36"W x 76"H x 32"D
- Approximate shipping weight: 435 lbs.
FEATURES:
- Two-year warranty!!
- Precision-ground cast-iron table
- Computer-balanced cast-iron wheels with polyurethane tires
- Pre-formed, hinged steel wheel covers
- Euro-disc style blade guides with full enclosure protection and ball bearing rear support
- Sealed and permanently lubricated motor bearings
- Blade tension indicator
- Rack-and-pinion upper guide adjustments
- Micro-adjusting rack-and-pinion table tilt
- Height scale measurement
- Two 4" dust ports
- Quick-release blade tension lever
