Item: W1825 | Model: W1825
Image for W1825

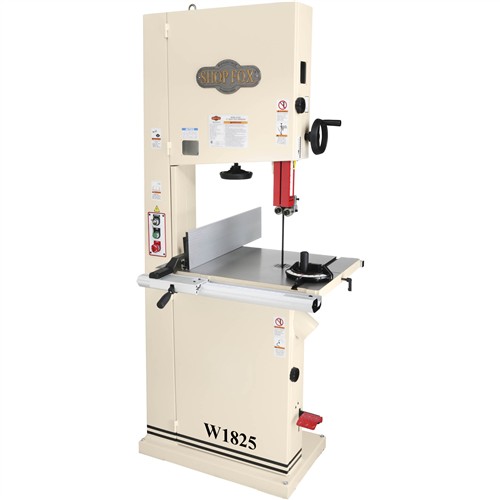

Shop Fox W1825 - 19" 3 HP Heavy Duty Bandsaw

4.8 (4)
5
3
4
1
$3,075.00
  • Motor: 3 HP
  • Max cutting width: 18-1/4 in.
  • Max cutting height: 12 in.
  • Table size: 19 in. x 26-3/4 in.
  • Wheel type: Computer-Balanced Cast Iron
  • Blade size: 143 in.
  • Quick blade change: Yes
  • Overall height: 76 in.
  • Shipping weight: 500 lbs.
Add to Cart
Shipping

Accessories

Image for H8605 143" x 1/2" x .025" x 3 TPI Pos Claw Bandsaw Blade Item# H8605 $48.95 Add Image for T28417 20 Amp 250V NEMA L6-20 Single-Phase Twist Lock Plug Item# T28417 $18.95 Add Image for T21142 Dual Roller Guide Item# T21142 $39.00 Add Image for T34391 Bandsaw Dust Deflector Item# T34391 $15.75 Add Image for T23957 143" x 1" x .025" x 3 TPI Hook Carbide-Embedded Bandsaw Blade Item# T23957 $107.95 Add
California Proposition 65 Warning
Overview Specifications & Comparisons Reviews Q & A Product Links
Overview

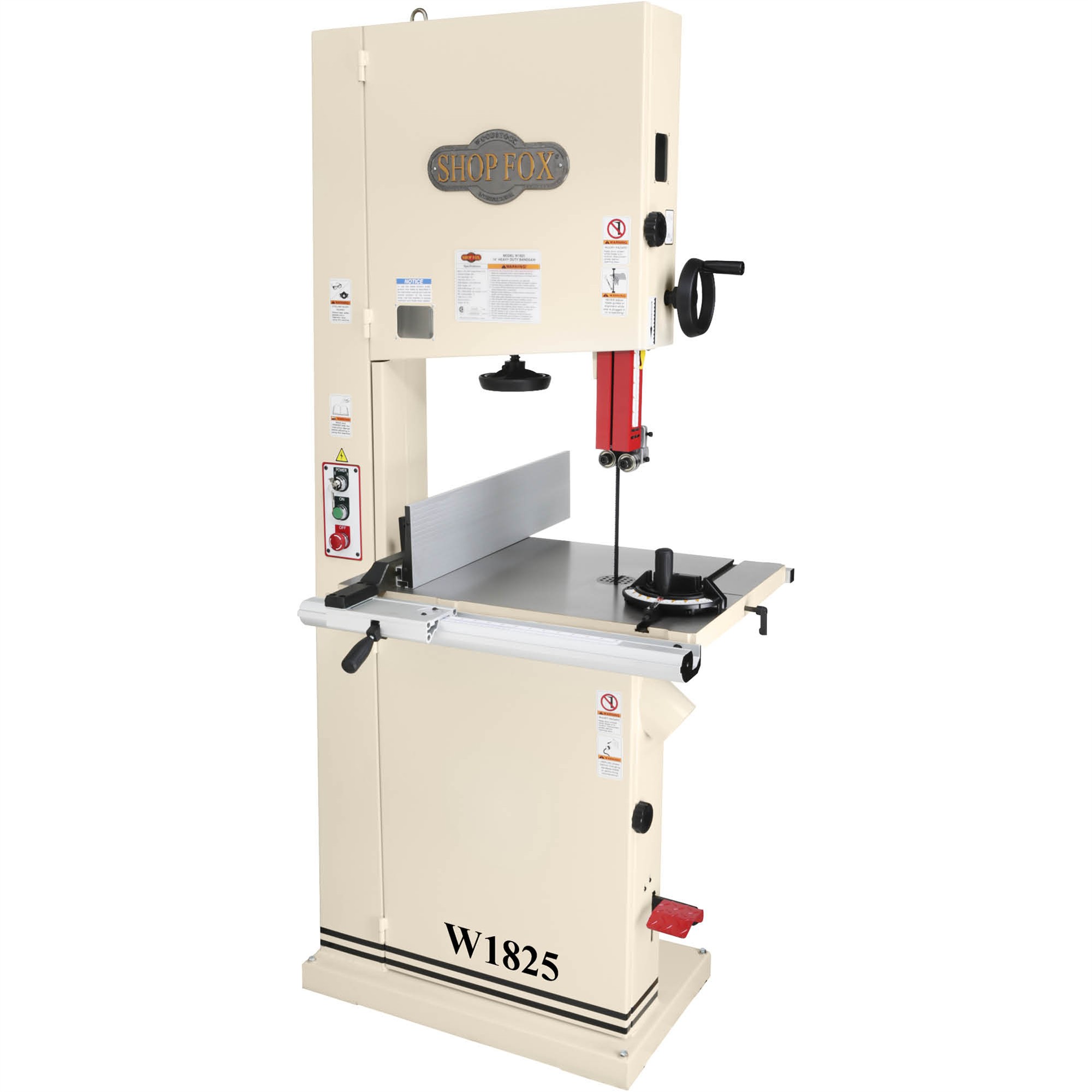

Shop Fox W1825 19" 3 HP Heavy-Duty Bandsaw

A heavy-duty 19" bandsaw designed to tackle demanding tasks with power, precision, and versatility.

Here's why the W1825 is the perfect fit for serious woodworkers:

Unmatched Cutting Capacity: The 19" resaw capacity and 18-1/4" cutting throat allow you to handle large projects with ease.

Power and Control: The robust 3 HP motor effortlessly cuts hardwoods, while the two variable speeds (1700 & 3500 FPM) optimize blade performance for different materials.

Effortless Resawing: The innovative 6" tall resaw fence converts to a low-profile fence, providing exceptional control and accuracy for resawing tasks.

Enhanced User Experience: The rack-and-pinion table tilt mechanism with built-in support ensures smooth adjustments, while the cast-iron trunnions guarantee long-lasting stability.

Safety and Efficiency: The foot brake not only enhances safety but also speeds up production by allowing for quick blade stops.

Deluxe Cast-Iron Fence with Magnifying Window: Ensures precise cuts for intricate woodworking projects.

Quick-Change Blade Release/Tensioning: Saves valuable time during blade changes.

Dual Ball-Bearing Blade Guides: Offer superior blade support for accurate cuts.

Two 4" Dust Ports: Maintain a clean work environment by connecting to your dust collection

For a full range replacement and resaw blades for the W1825, shop here.

The W1825 manual was written by our U.S.-based Technical Documentation Department and is packed with useful information.

Made in an ISO 9001 factory

CSA certified

SPECIFICATIONS:

  • Motor: 3 HP, 220V, single-phase, 12A
  • Throat (max. width left of blade): 18-1/4"
  • Resaw height: 12"
  • Blade length: 143"
  • Blade width range: 1/8"–1-1/4"
  • Blade speed: 1700, 3500 FPM
  • Table size: 26-3/4" x 19" x 1-1/2" thick
  • Table tilt: 45° right, 5° left
  • Floor to table height: 37-1/2"
  • Overall size: 36" W x 32" D x 76" H
  • Approximate shipping weight: 500 lbs.

FEATURES:

  • Two-year warranty!!
  • Deluxe cast-iron fence with deluxe extruded-aluminum resaw fence
  • Quick-change blade release/tensioning
  • Rack-and-pinion table tilt mechanism and upper guide adjustment
  • Computer-balanced cast-iron wheels
  • Height scale measurement
  • Miter gauge
  • Foot brake
